Installing a grounding system is a critical component of electrical safety for both residential and commercial properties. Whether you are setting up a solar array, a service panel, or a telecommunications tower, ensuring a proper earth connection is non-negotiable. At the heart of this installation process lies the ground rod driver, a specialized tool designed to simplify what was once a grueling manual task. By using the right equipment, you can ensure that your copper-clad or galvanized steel rods reach the necessary depth in the soil to provide a low-resistance path to the earth, effectively protecting your electrical equipment and the building's occupants from surges and lightning strikes.
Why You Need a Dedicated Ground Rod Driver

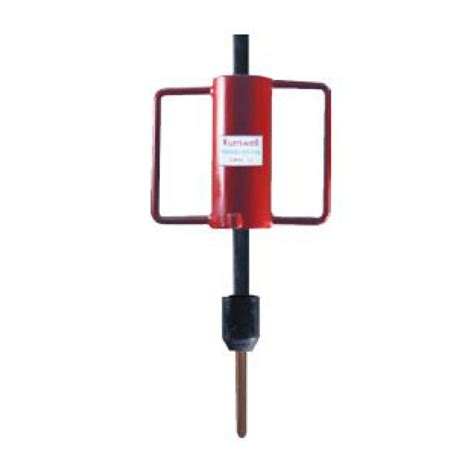

For many years, the standard method for driving rods involved a sledgehammer and a lot of physical labor. Not only was this process physically demanding, but it also posed significant risks of injury—such as smashed thumbs, fatigue, or the rod bending under the force of an improper strike. A ground rod driver changes the equation entirely. These tools are engineered to fit onto heavy-duty rotary hammers or impact drivers, allowing the machine to do the heavy lifting while you maintain steady control over the rod's position.
Using a mechanical driver provides several distinct advantages:
- Precision: It keeps the rod perfectly vertical, preventing the "wobble" that often occurs with manual hammering.
- Efficiency: What used to take thirty minutes of exhausting labor can now be completed in a matter of seconds.

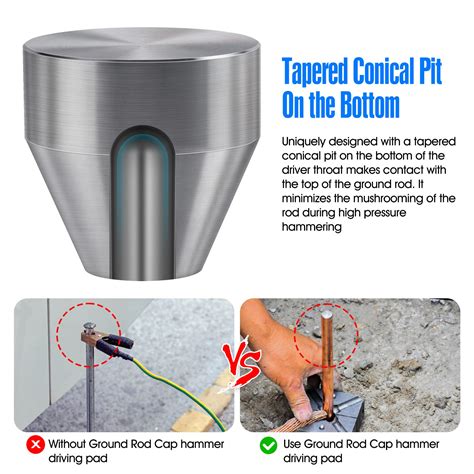

- Rod Integrity: By distributing the force evenly across the top of the rod, you avoid the mushrooming effect that often ruins the top of the metal, making it difficult to attach grounding clamps later.
- Versatility: Most high-quality drivers are compatible with industry-standard SDS-Max or spline-shank hammers, making them a one-time investment for professional electricians.
Selecting the Right Tool for Your Application

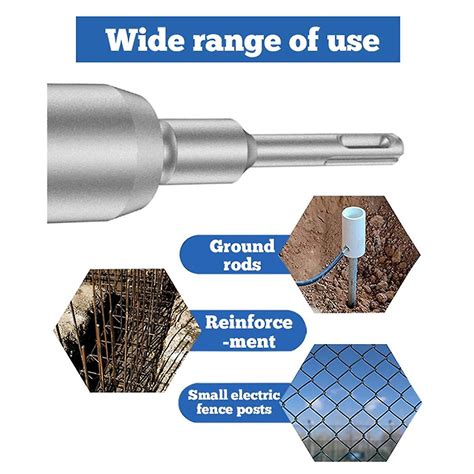

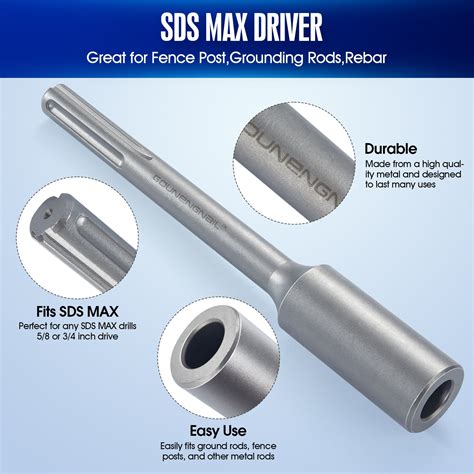

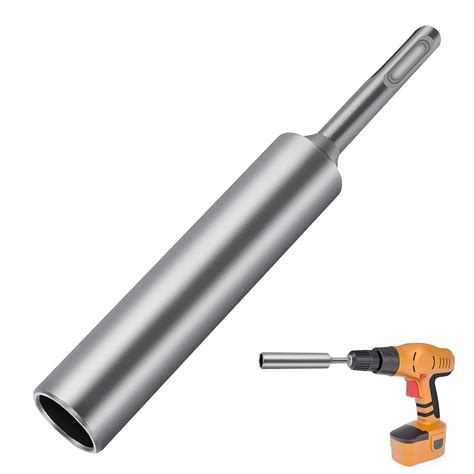

Not all grounding rods are created equal, and neither are the drivers used to install them. When selecting a ground rod driver, you must first identify the diameter of your rod and the tool shank type of your power hammer. Most residential grounding systems utilize a 5/8-inch rod, but larger commercial projects may require 3/4-inch or even 1-inch rods. It is essential to ensure that the internal diameter of your driver bit matches the rod diameter to prevent slipping.
| Rod Diameter | Typical Application | Recommended Tool |
|---|---|---|
| 1/2 Inch | Residential/Communication | SDS-Plus Driver |
| 5/8 Inch | Standard Electrical Service | SDS-Max Driver |
| 3/4 Inch | Commercial/Industrial | Spline or Hex Shank Driver |
⚠️ Note: Always verify the shank compatibility of your rotary hammer before purchasing a driver. Attempting to force an incompatible shank into your tool can damage the chuck mechanism of your power hammer.
Step-by-Step Installation Process
Once you have acquired the correct ground rod driver, the installation process is straightforward. However, safety should remain your top priority. Before you begin, always perform a utility locate to ensure you are not driving your rod into water lines, gas pipes, or electrical conduits buried beneath the surface.

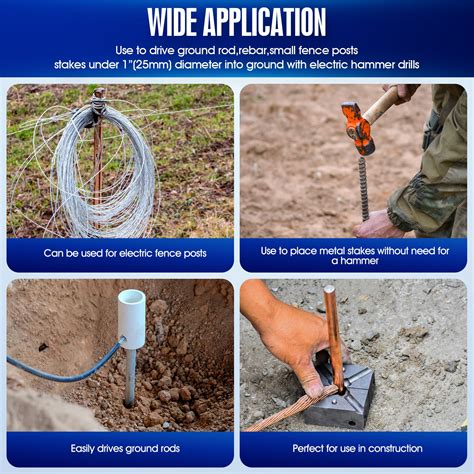

- Clear the area: Remove any rocks or debris from the spot where the rod will be driven.

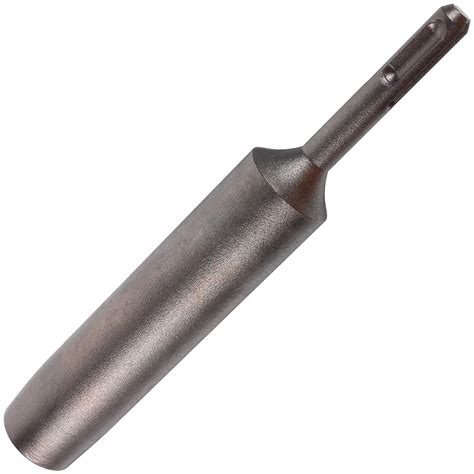

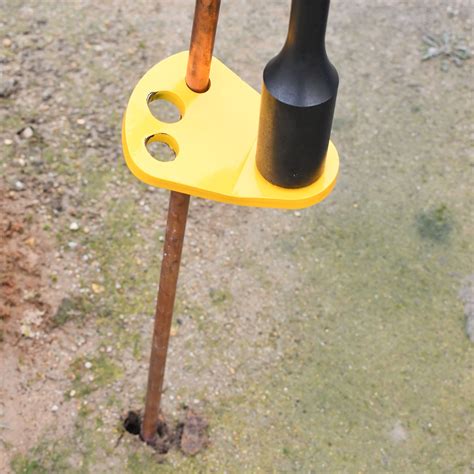

- Initial Positioning: Start the rod into the ground by hand or with a light tap to ensure it is plumb (straight).

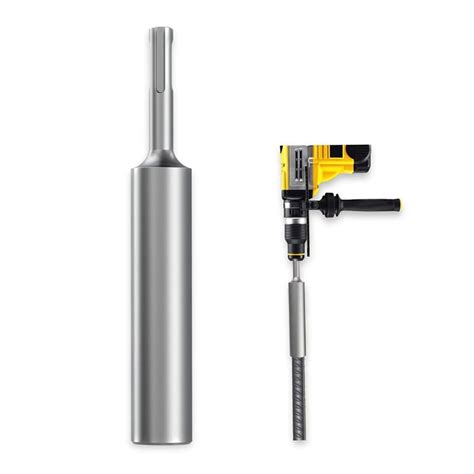

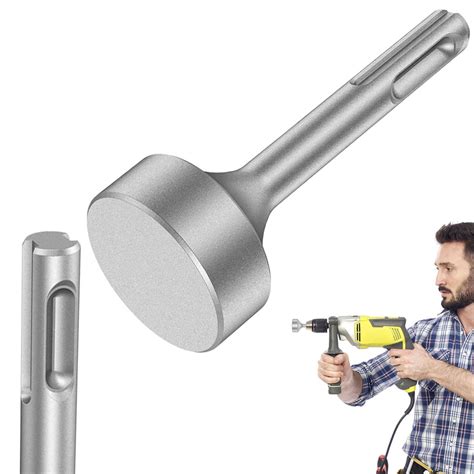

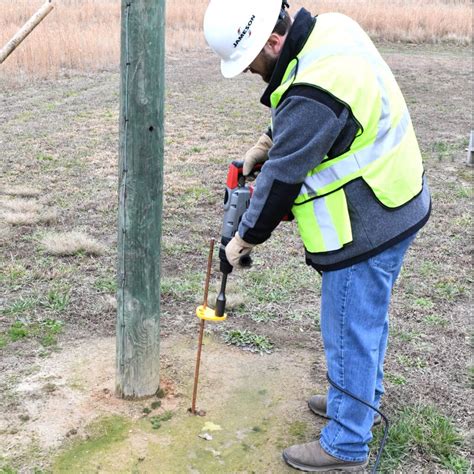

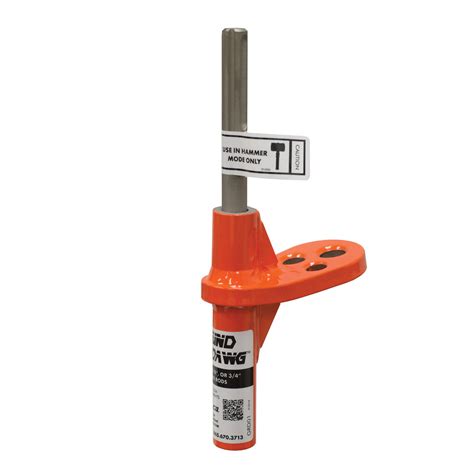

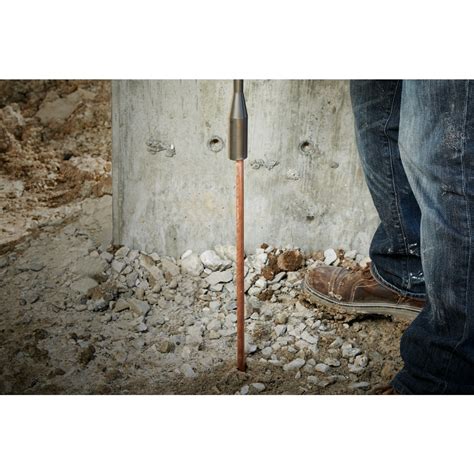

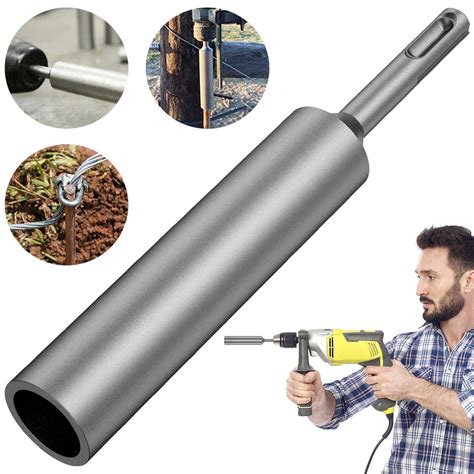

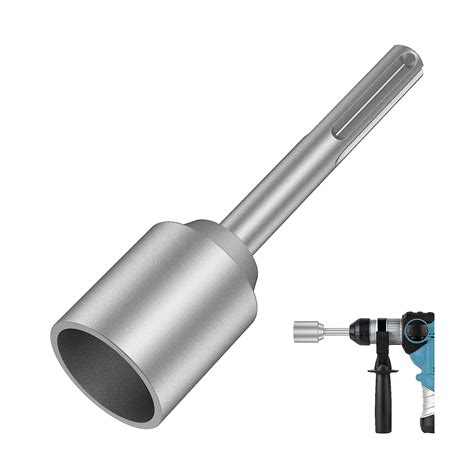

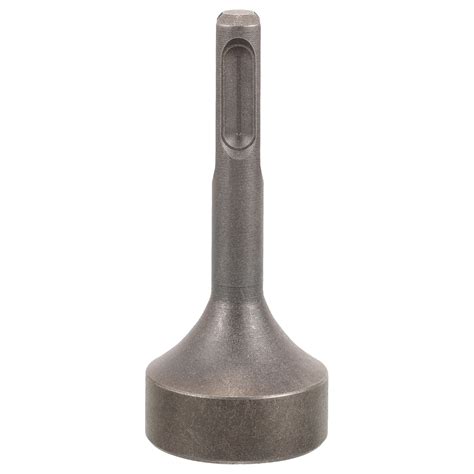

- Attach the Driver: Secure the driver bit into your power hammer, then carefully place the driver over the top of the exposed ground rod.

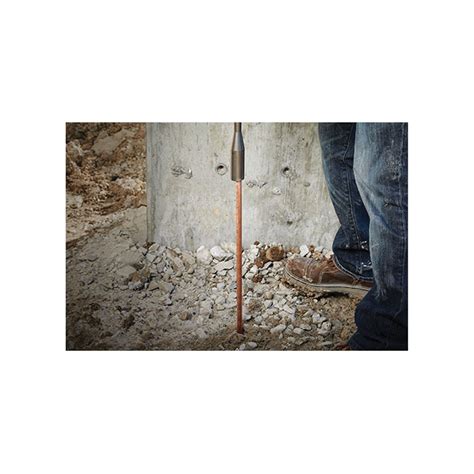

- Apply Controlled Force: Trigger the hammer. Do not apply heavy downward pressure; let the weight of the hammer and the rapid vibration of the driver bit do the work.
- Monitor Depth: Keep an eye on the rod as it sinks. Stop before the rod completely disappears below the surface if you intend to attach a clamp later.
💡 Note: If you encounter an underground obstacle, do not force the rod. Hitting a large rock or utility line can damage the rod or, more importantly, create a hazardous situation. Relocate the rod at least six feet away and try again.
Maintaining Your Equipment
High-impact tools take a significant beating over time. To extend the life of your ground rod driver, you should implement a simple maintenance routine. After each use, inspect the interior sleeve for metal shavings or debris that might cause the rod to seize. Cleaning the sleeve and applying a small amount of high-temperature grease will keep the interface between the driver and the rod smooth. Additionally, store your driver in a dry environment to prevent oxidation, which can weaken the metal structure of the tool.
Advanced Tips for Challenging Soil

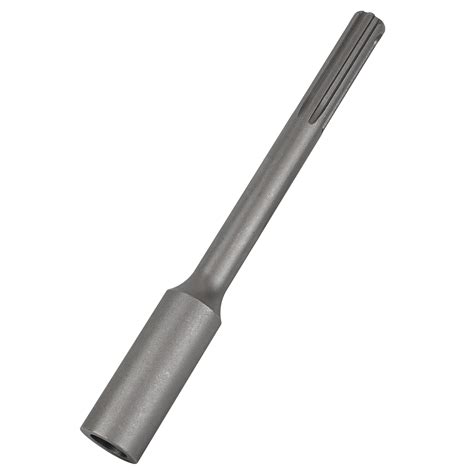

In regions with extremely dense clay or rocky soil, driving a rod can be difficult even with the best equipment. In these instances, many professionals utilize the "water-jetting" method alongside the ground rod driver. By using a small diameter pipe to create a pilot hole while adding a bit of water to lubricate the soil, you can significantly reduce the friction encountered by the rod. This technique, combined with the percussive power of an SDS-Max driver, allows for successful installation in ground conditions that would otherwise be nearly impossible to penetrate.
When working in exceptionally hard soil, try to drive the rod early in the morning when the ground retains more natural moisture, as dry soil compacts harder and creates more resistance. If you find the rod is simply not moving, do not continue to hammer at it indefinitely; constant high-impact vibration against a stationary object can cause the rod to bend underground, which will void the electrical integrity of your ground connection. If you cannot reach the required depth, consult local electrical codes regarding the use of multiple shorter rods bonded together with proper grounding conductors.
Achieving a reliable ground connection is a fundamental requirement for the safety of any electrical system. By moving away from primitive manual methods and adopting a high-quality ground rod driver, you ensure that your installations are not only faster and easier to complete but also more consistent and secure. Proper tool selection, adherence to safety protocols, and a basic understanding of soil dynamics will allow you to handle any grounding task with confidence. Remember that the goal is to create a path of least resistance for electrical current, and utilizing the right equipment is the first step toward reaching that goal effectively and safely for years to come.
