When it comes to automotive performance modifications, few upgrades offer the perfect blend of auditory satisfaction and mechanical efficiency like an exhaust system overhaul. For enthusiasts looking to deepen the tone of their V8 engine and improve exhaust gas flow, the H Pipe stands out as a legendary choice. By bridging the gap between your dual exhaust pipes, this component does more than just make your vehicle sound better; it balances the pressure between the two cylinder banks, resulting in a more refined, muscle-car rumble that is synonymous with American automotive culture.
Understanding the H Pipe Architecture

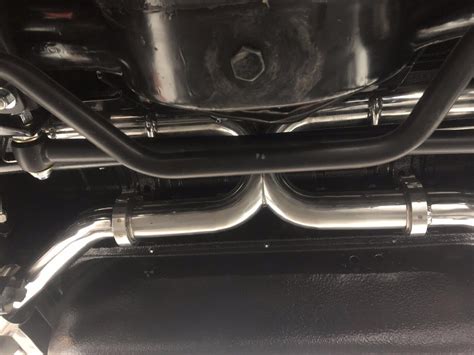

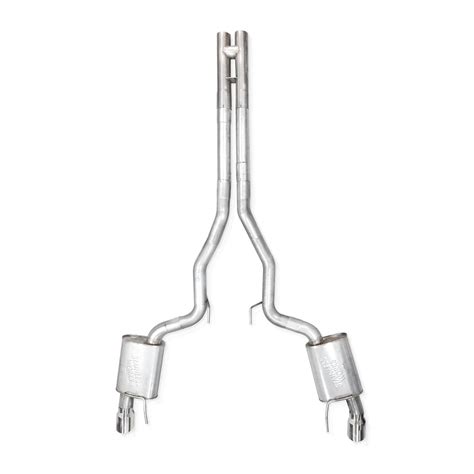

The design of an H pipe is relatively straightforward yet highly functional. It consists of a physical pipe that connects the two separate sides of a dual exhaust system, forming the shape of the letter "H." This balance tube is strategically positioned to allow exhaust gases to travel between the pipes, which helps in equalizing the pressure pulses generated by the engine's firing order. Unlike a stock system that keeps the two banks completely separate, the H-pipe configuration encourages scavenging—a process where the pressure wave from one cylinder helps pull the exhaust gases out of the next cylinder in the sequence.

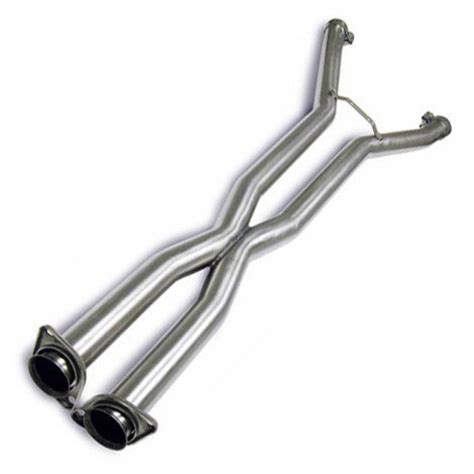

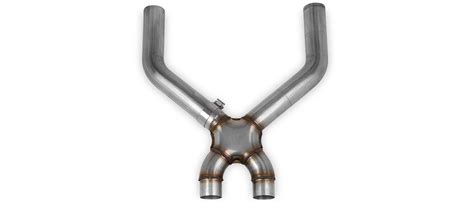

The primary result of installing this component is a dramatic change in the exhaust note. If you have ever wondered why classic muscle cars have that distinct, low-frequency "throaty" sound, you are likely listening to an H-pipe system. While other crossover designs, such as the X-pipe, focus on high-RPM efficiency and a raspy, exotic sound, the H-pipe remains the gold standard for those who prioritize that iconic, deep, traditional rumble.
Performance Gains and Scavenging Benefits
Many drivers assume that an exhaust modification is purely for aesthetics or sound, but the physics behind the H pipe offers tangible performance benefits. By utilizing exhaust gas scavenging, the engine spends less energy pushing gases out of the exhaust ports. This reduction in "pumping losses" can lead to a slight increase in torque, particularly in the low-to-mid RPM range.
- Torque Optimization: The cross-flow allows for better pressure management, which helps boost mid-range torque.
- Exhaust Note Enhancement: It converts the distinct, jagged sounds of two separate pipes into a unified, resonant tone.
- Reduced Vibration: By balancing the pressure pulses, the exhaust system itself often experiences less harmonic vibration.
- Longevity: A properly installed aftermarket system can improve overall airflow, potentially reducing backpressure that builds up heat in the engine.
Below is a comparison table to help you understand how the H-pipe differs from other popular crossover options:
| Feature | H Pipe | X Pipe |
|---|---|---|
| Exhaust Tone | Deep, throaty, classic | Raspy, exotic, high-pitched |
| RPM Preference | Low-to-mid range torque | High RPM flow |
| Pressure Equalization | Moderate | High |
| Installation Difficulty | Moderate | Moderate |
Installation Considerations
Installing an H pipe is a rite of passage for many DIY mechanics. Before diving into the installation, ensure you have the correct tools, including a reliable jack, jack stands, and penetrating oil for rusted bolts. The process generally involves cutting into your existing exhaust piping if you are installing a weld-in kit, or simply bolting on a pre-manufactured mid-pipe assembly if your car is compatible with direct-fit kits.
It is crucial to ensure that the pipe is perfectly centered. Misalignment can cause the exhaust to rattle against the undercarriage of the vehicle, which can be both annoying and damaging over time. Always double-check your clearance from the driveshaft and fuel lines to prevent heat-related issues.
⚠️ Note: Always allow your exhaust system to cool completely for at least two hours before attempting to work on it, as the metal remains extremely hot long after the engine has been turned off.
Maintenance and Long-Term Care
Once you have installed your H pipe, maintenance is relatively minimal. Because it is usually constructed from aluminized or stainless steel, it is susceptible to the same road grime, salt, and moisture as the rest of your exhaust. If you live in an area where roads are salted during winter, stainless steel is highly recommended for its superior corrosion resistance.
Regularly inspect the joints and welds for any signs of exhaust leaks. A leak near the crossover pipe can introduce fresh air into the exhaust stream, which may confuse your vehicle's O2 sensors and potentially trigger a "Check Engine" light. If you notice a ticking sound while accelerating, it is a tell-tale sign of an exhaust gasket failure or a loose clamp that requires immediate attention.
💡 Note: When tightening exhaust clamps, use a high-quality anti-seize lubricant on the threads. This ensures that if you ever need to adjust or remove the pipe in the future, the bolts will not be rusted solid.
Choosing the Right Material
Selecting the right material for your H pipe is just as important as the design itself. While budget-friendly options exist, the long-term cost of ownership should be considered.
- Aluminized Steel: An affordable option for mild climates, though it will eventually rust over time.
- 304 Stainless Steel: The industry standard for high-performance builds, offering excellent durability and resistance to rust.
- 409 Stainless Steel: A mid-tier option that offers better corrosion resistance than aluminized steel but may develop a light surface patina over time.
The transition from a standard factory setup to an H-pipe-equipped system is one of the most rewarding modifications a car enthusiast can undertake. By improving the mechanical efficiency of your exhaust system through effective pressure balancing, you unlock a hidden reservoir of torque while achieving that classic, aggressive sound that turns heads. Whether you are looking to restore a vintage muscle car or simply want to enhance the presence of a modern V8, this simple crossover component provides the perfect harmony between performance and acoustics. Investing in high-quality materials and ensuring a proper installation will guarantee years of enjoyment on the road, ensuring your vehicle sounds as powerful as it performs.
