H2 Lewis Structure

Understanding the fundamental building blocks of chemistry begins with simple molecules, and there is no better place to start than the hydrogen molecule. Learning how to draw the H2 Lewis structure is a rite of passage for every chemistry student, as it introduces the basic principles of covalent bonding, electron sharing, and the octet rule—or in this case, the duplet rule. Because hydrogen is the lightest and simplest element, it provides a perfect, uncluttered canvas to visualize how atoms interact to achieve stability.

Table of Contents

What is the H2 Molecule?

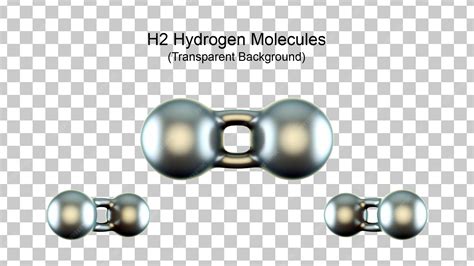

The hydrogen molecule (H2) consists of two hydrogen atoms held together by a chemical bond. In its elemental form, hydrogen gas is diatomic, meaning it naturally exists as a pair of atoms rather than as individual atoms. This pairing occurs because a single hydrogen atom is inherently unstable; it possesses only one electron in its valence shell, while its nearest noble gas configuration, helium, requires two electrons to fill the 1s orbital. By coming together, the two hydrogen atoms share their electrons to create a stable, low-energy state.

Understanding the Basics of Lewis Structures

A Lewis structure, also known as an electron dot diagram, is a simplified representation of the valence electrons in a molecule. The primary goal of a Lewis structure is to show how atoms are connected and how electrons are distributed among the atoms in a molecule. When dealing with the H2 Lewis structure, we follow a set of logical steps that apply to even the most complex molecules:

Step-by-Step Guide: Drawing the H2 Lewis Structure

Drawing the structure for H2 is straightforward, but following the process ensures you understand the “why” behind the “how.”

1. Determine Total Valence Electrons

Each hydrogen atom has one valence electron (atomic number 1). Since there are two atoms in the H2 molecule, we calculate the total as follows:

Hydrogen (H): 1 valence electron
Total valence electrons = 1 + 1 = 2 valence electrons

2. Connect the Atoms

Place the two hydrogen symbols (H) side by side. Because there are only two atoms, we simply draw a bond between them. In Lewis theory, a single bond is represented by a solid line or a pair of dots shared between the two atoms.

3. Verify the Duplet Rule

Hydrogen is unique because it follows the duplet rule rather than the octet rule. A full shell for hydrogen is two electrons. By sharing one electron from each atom, both hydrogen atoms now “perceive” a total of two electrons, effectively filling their 1s orbital. This configuration represents a highly stable bond.

Feature	Description
Molecule	H2 (Hydrogen Gas)
Total Valence Electrons	2
Bond Type	Single Covalent Bond
Geometry	Linear
Total Lone Pairs	0

💡 Note: Remember that for hydrogen, the "octet rule" is replaced by the "duplet rule," meaning these atoms only need two electrons to be considered stable.

Why Does Hydrogen Form a Single Bond?

The formation of a single bond in the H2 Lewis structure is driven by the desire to reach a lower potential energy state. When two hydrogen atoms are far apart, they do not interact. As they approach one another, the electron of each atom is attracted to the nucleus of the other atom. Simultaneously, the two nuclei repel each other and the two electrons repel each other. A balance is struck at a specific distance—known as the bond length—where the attractive forces are maximized and the potential energy is at its lowest. This results in a stable, shared electron pair.

Common Misconceptions When Drawing Lewis Structures

Even in a simple molecule like H2, students sometimes fall into common traps. Being aware of these can improve your chemical intuition:

Forgetting Valence Electrons: Always count the total valence electrons first; it acts as a reality check.
Confusing Lone Pairs with Bonding Pairs: In H2, both electrons are involved in the bond; there are no “extra” or “lone” electrons floating around the atoms.
Applying the Octet Rule to Hydrogen: Never try to surround hydrogen with eight electrons. It only has room for two.

💡 Note: While H2 is a diatomic molecule, larger molecules require identifying a central atom, which is usually the least electronegative element.

The Significance of the H2 Bond

The covalent bond in H2 is a nonpolar covalent bond because both atoms are identical. Since they have the same electronegativity, they share the electron pair equally. This lack of charge separation means that H2 is a nonpolar molecule. Understanding the H2 Lewis structure is the foundation for understanding more complex topics like molecular polarity, hybridization, and intermolecular forces. Without the stability provided by this shared pair of electrons, hydrogen would remain a highly reactive free radical.

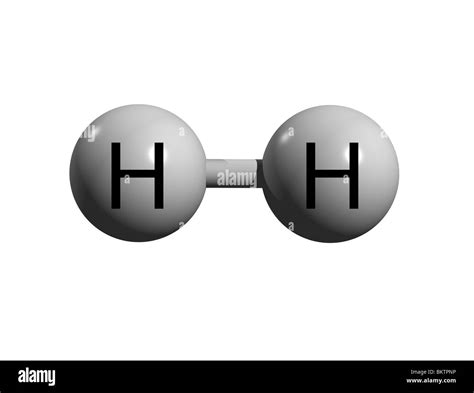

Visualizing the H2 Structure

When you draw the diagram, represent the electrons as dots or lines. A pair of dots between the H atoms signifies the covalent bond. Alternatively, a single straight line connecting the two H atoms is the preferred professional notation. Both representations are valid and convey the same electronic information. By visualizing this, you can see clearly that the two electrons are localized in the space between the two hydrogen nuclei, acting as a “glue” that binds them together.
