Understanding the molecular geometry and electron distribution of ions is a fundamental aspect of general chemistry. One of the most frequently studied polyatomic ions is the hydronium ion, represented chemically as H3O+. Mastering the H3o+ Lewis structure is essential for students and professionals alike, as it provides deep insight into acid-base chemistry, molecular stability, and the behavior of water in aqueous solutions. In this comprehensive guide, we will break down the process of drawing this structure, identifying its formal charges, and understanding its unique geometry.
Understanding the Basics of the Hydronium Ion
The hydronium ion (H3O+) is essentially a water molecule (H2O) that has accepted a proton (H+). Because a neutral oxygen atom has six valence electrons and each hydrogen atom contributes one, the total electron count must be adjusted for the positive charge. When an H+ ion bonds to a water molecule, the oxygen atom uses one of its lone pairs to form a coordinate covalent bond with the hydrogen nucleus.
To draw the H3o+ Lewis structure, we must first calculate the total number of valence electrons available in the system:
- Oxygen: 6 valence electrons
- Hydrogen: 3 atoms × 1 valence electron = 3 electrons
- Positive Charge: Subtract 1 electron for the +1 net charge
- Total Valence Electrons: 6 + 3 - 1 = 8 electrons
With eight electrons to distribute, we place the oxygen atom in the center and attach the three hydrogen atoms. By creating three single bonds, we use up six electrons. The remaining two electrons are placed as a lone pair on the oxygen atom, satisfying the octet rule for oxygen and the duplet rule for each hydrogen atom.

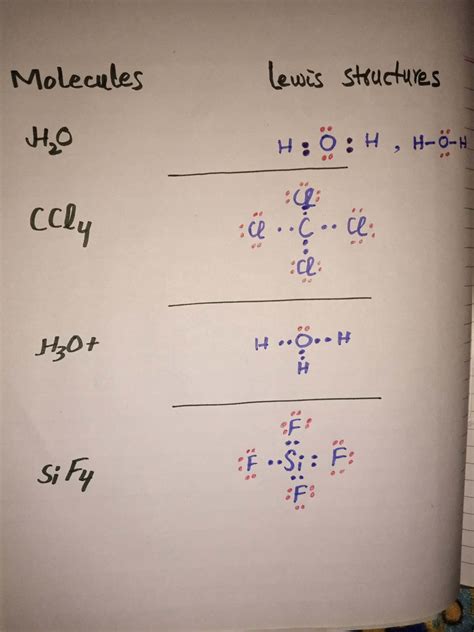

Step-by-Step Guide to Drawing the Structure
Following a logical sequence ensures accuracy when representing complex ions. Here is how you can construct the diagram for the H3o+ Lewis structure effectively:
- Identify the Central Atom: Oxygen is the most electronegative atom (compared to hydrogen) and acts as the central hub.
- Sketch the Skeleton: Place the Oxygen atom in the center and draw three lines connecting it to each of the three Hydrogen atoms.
- Distribute Electrons: Use the remaining two electrons as a lone pair on the oxygen atom.
- Verify Octets: Check that the oxygen atom is surrounded by 8 electrons (three shared pairs and one lone pair).
- Assign Formal Charges: Use the formula [Valence Electrons - Non-bonding Electrons - 1/2(Bonding Electrons)] to calculate the charge on each atom.
💡 Note: The positive charge in the H3o+ Lewis structure is delocalized over the entire ion, though formal charge calculations assign the +1 charge specifically to the oxygen atom due to its electron donation.
Table of Electronic Properties
The following table summarizes the structural data of the hydronium ion to provide a quick reference for your chemistry studies.
| Feature | Value/Description |
|---|---|
| Central Atom | Oxygen (O) |
| Bonding Pairs | 3 |
| Lone Pairs | 1 |
| Molecular Geometry | Trigonal Pyramidal |
| Bond Angles | Approximately 107° |
| Total Valence Electrons | 8 |
Geometry and Bond Angles
The H3o+ Lewis structure predicts a shape that is not planar. Because there are three bonding pairs and one lone pair around the central oxygen atom, the VSEPR (Valence Shell Electron Pair Repulsion) theory dictates a trigonal pyramidal geometry. The presence of the lone pair exerts a stronger repulsive force on the bonding pairs compared to the repulsion between the bonding pairs themselves.
In a standard tetrahedral arrangement, angles are typically 109.5°. However, the lone pair on the oxygen atom "pushes" the hydrogen bonds closer together. As a result, the H-O-H bond angles in the hydronium ion are compressed to approximately 107°. This slight deviation from the ideal tetrahedral angle is a classic example of how lone pair repulsion dictates the final shape of a molecule.
Why Formal Charge Matters
In the context of the H3o+ Lewis structure, formal charge is a vital concept. When we calculate the formal charge for the oxygen atom: 6 (valence) - 2 (lone pair electrons) - 3 (bonds) = +1. Each hydrogen atom possesses a formal charge of zero (1 valence - 1 bond = 0). This confirms that the net charge of the entire ion is indeed +1. Understanding this helps chemists predict how the ion will react in acidic environments and explains why hydronium is a potent acid in aqueous solutions.
It is important to remember that Lewis structures are essentially 2D representations of 3D entities. While they are perfect for counting electrons and establishing connectivity, they do not always capture the full quantum mechanical reality of electron density. However, for most introductory and intermediate chemistry applications, this model is perfectly adequate for predicting reactivity and structural stability.
Final Thoughts on Molecular Modeling
By breaking down the H3o+ Lewis structure into manageable steps, we can clearly see how a simple water molecule transforms into a chemically significant ion. The combination of its trigonal pyramidal shape, the role of its lone pair, and the formal charge distribution makes it a staple topic in chemistry coursework. Recognizing how these electrons arrange themselves around the central oxygen atom allows you to better understand not just hydronium, but the broader principles of molecular geometry that apply to all polyatomic ions. Consistent practice with these diagrams will sharpen your ability to visualize molecular dynamics in more complex systems.
