Cardiac tamponade is a critical medical emergency characterized by the accumulation of fluid, blood, or pus in the pericardial sac, which puts excessive pressure on the heart. This pressure restricts the heart's ability to fill properly during diastole, leading to a significant decrease in cardiac output and potential cardiovascular collapse. One of the most vital diagnostic tools available to clinicians in the acute setting is the Heart Tamponade ECG. Recognizing the characteristic patterns on an electrocardiogram can often be the difference between life and death, serving as an early warning sign before more invasive diagnostic imaging like an echocardiogram can be performed.
Understanding the Pathophysiology of Cardiac Tamponade

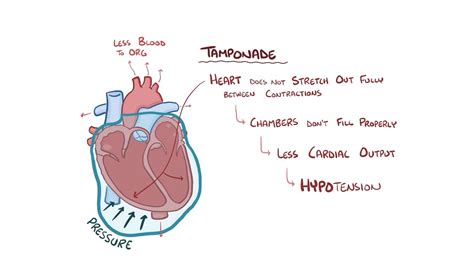

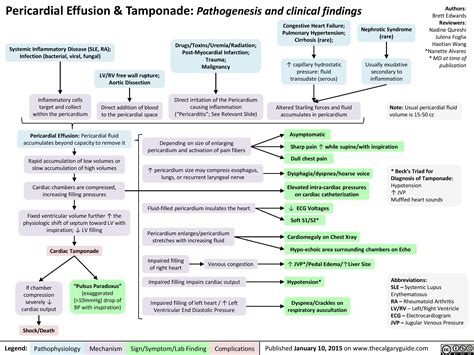

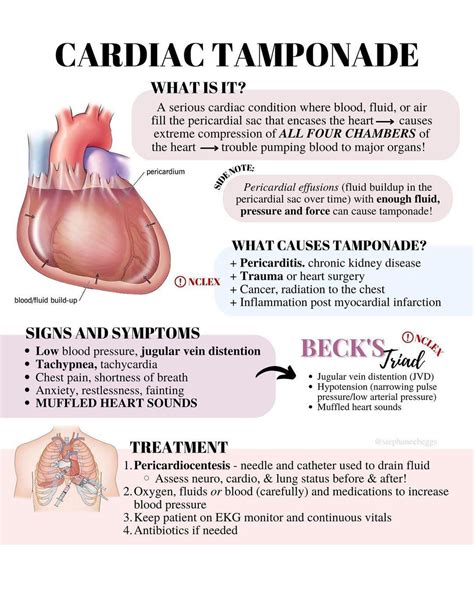

To grasp why the Heart Tamponade ECG presents with specific findings, one must first understand the mechanical constraints imposed on the heart. When the pericardial space fills rapidly, the intrapericardial pressure rises. This pressure compresses the cardiac chambers, particularly the right atrium and right ventricle, which operate under lower pressures than the left side of the heart. As these chambers struggle to expand, filling is hindered, leading to Beck’s Triad—a classic clinical sign consisting of hypotension, jugular venous distention, and muffled heart sounds.
Because the electrical activity of the heart is independent of the mechanical filling, the ECG records the heart's effort to beat against this external resistance. However, the electrical signals are often altered by the presence of the fluid acting as a physical insulator and the heart's changing position within the fluid-filled sac.
Key Diagnostic Indicators on an ECG
While the ECG is not the primary diagnostic tool for confirming tamponade—that role belongs to the bedside ultrasound—it provides essential clues. A clinician looking for Heart Tamponade ECG patterns should be hyper-vigilant for the following findings:
- Electrical Alternans: This is the most specific, though not the most sensitive, ECG finding. It is characterized by beat-to-beat variations in the amplitude of the QRS complex, P wave, or T wave. It occurs because the heart is physically swinging or "floating" within the large volume of pericardial effusion.

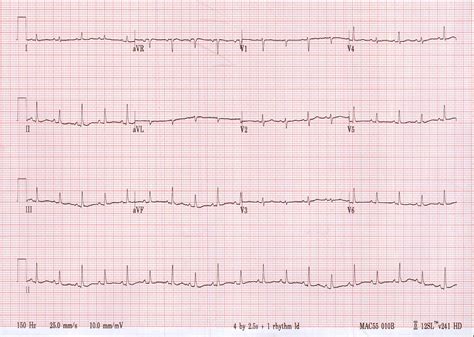

- Low Voltage: As fluid accumulates, it creates a layer of insulation between the heart's electrical pathways and the surface electrodes. This often results in a decrease in the overall voltage of the QRS complexes across all leads.
- Sinus Tachycardia: As the body attempts to compensate for reduced stroke volume (the amount of blood pumped per beat), it increases the heart rate to maintain cardiac output. Tachycardia is an almost universal, though non-specific, finding in tamponade.
- PR Segment Depression: This can occur as a secondary finding, often reflecting underlying pericarditis that may be causing the effusion.
⚠️ Note: Electrical alternans, while highly indicative of large pericardial effusion and potential tamponade, may also be seen in severe cases of myocarditis or chronic obstructive pulmonary disease (COPD) with rapid heart rates.
Clinical Comparison: Tamponade vs. Other Effusions
Differentiating between a stable pericardial effusion and a hemodynamically significant tamponade requires a holistic look at the patient. The table below summarizes how specific ECG and clinical features assist in identifying the emergency state.
| Feature | Stable Pericardial Effusion | Cardiac Tamponade |
|---|---|---|
| Heart Rate | Usually normal | Sinus tachycardia |
| QRS Amplitude | May be low | Low voltage + Electrical Alternans |
| Blood Pressure | Normal | Hypotension/Narrow pulse pressure |
| Clinical Presentation | Often asymptomatic | Dyspnea, JVD, Shock |
The Role of Electrical Alternans in Diagnosis
The "swinging heart" theory provides a mechanical explanation for the phenomenon of electrical alternans seen on a Heart Tamponade ECG. Because the heart is suspended in a large pool of fluid, its anatomical axis changes with every beat. As the heart oscillates, the distance between the myocardium and the chest leads varies rhythmically. This change in distance leads to the characteristic "tall-short-tall-short" pattern in the QRS complexes. If a physician observes this pattern in a patient presenting with dyspnea or hypotension, immediate investigation with an ultrasound is mandatory.
Management Strategies Following ECG Discovery
Once the Heart Tamponade ECG findings are identified, the clinical team must act with extreme speed. The primary goal is to relieve the pressure on the heart. Supportive measures, such as intravenous fluid resuscitation, can provide a temporary bridge to maintain cardiac output by increasing right-sided filling pressures. However, these are strictly temporizing.
The definitive treatment is pericardiocentesis, which involves draining the fluid from the pericardial space using a needle or catheter, often guided by ultrasound. In surgical settings, a pericardial window may be created to allow for continuous drainage. Monitoring the ECG during these procedures is also vital to detect any arrhythmias that might occur due to mechanical irritation of the heart muscle during the needle placement.
ℹ️ Note: Never delay definitive drainage based on the absence of classic ECG findings. If the clinical suspicion for tamponade is high, diagnostic imaging (ultrasound) must be prioritized immediately, even if the ECG appears relatively unremarkable.
Limitations and Diagnostic Nuances
It is important to emphasize that an ECG is a snapshot of electrical activity, not a direct measure of hemodynamics. Some patients may develop tamponade with only subtle ECG changes. Furthermore, the absence of low voltage does not rule out the condition, especially in acute presentations where fluid accumulation occurs so rapidly that the body has not had time to manifest the classic signs of electrical dampening. Clinicians must prioritize the "clinical picture" over any single diagnostic test.
Ultimately, the Heart Tamponade ECG should be viewed as one piece of a complex puzzle. While electrical alternans is a “classic” sign that serves as a red flag for the experienced practitioner, the diagnosis of cardiac tamponade rests on the combination of physical assessment, patient history, and rapid imaging. By staying attuned to the subtle warnings provided by the ECG, healthcare providers can initiate life-saving interventions, such as pericardiocentesis, before the patient progresses to irreversible cardiogenic shock. Always maintain a high index of suspicion, as early recognition remains the most effective strategy for improving patient outcomes in the face of this life-threatening condition.
