When you decide to start towing a trailer, boat, or camper, the complexity of the equipment can feel overwhelming at first. However, the connection point—the humble hitch ball—is perhaps the most critical component of the entire setup. This small, spherical piece of metal acts as the primary pivot point between your vehicle and your cargo. Understanding how to select, maintain, and properly utilize your hitch ball is not just about convenience; it is a fundamental requirement for road safety and the longevity of your towing equipment.
Understanding the Anatomy of a Hitch Ball
At its core, a hitch ball is a simple device, yet it is engineered to withstand immense forces. It typically consists of a steel or stainless steel sphere connected to a threaded shank that passes through the ball mount of your receiver hitch. The size of the ball must perfectly match the size of the trailer coupler to ensure a secure connection. If the ball is too small, the trailer can become detached during transit, which is a catastrophic safety failure.
When shopping for a new unit, you will notice different diameters, most commonly 1-7/8 inches, 2 inches, and 2-5/16 inches. These sizes correspond to specific weight capacities. Additionally, the shank diameter and length must be compatible with your specific vehicle's hitch setup. Using the wrong size shank can lead to the ball snapping under load, especially when navigating uneven terrain or sudden stops.
Key Specifications and Comparison
To help you determine which equipment is right for your towing needs, refer to the table below. This overview highlights the standard relationships between ball size and weight ratings, though you should always check the manufacturer's stamp on your specific gear.
| Ball Diameter | Common Application | Weight Capacity Range |
|---|---|---|
| 1-7/8" | Light-duty utility trailers | Up to 2,000 lbs |
| 2" | Boats, campers, and utility trailers | 3,500 - 6,000 lbs |
| 2-5/16" | Heavy-duty livestock and large campers | 6,000 - 30,000 lbs |
⚠️ Note: Always verify the Gross Trailer Weight (GTW) before purchasing a ball. Never exceed the lowest weight rating among your hitch, ball, and trailer coupler.
Selecting the Right Material
The material composition of your hitch ball significantly impacts its durability and resistance to the elements. You will generally find three primary material types on the market today:
- Chrome-Plated Steel: These are the most common and offer an attractive, shiny finish. They provide good corrosion resistance but can rust if the chrome layer is chipped.
- Stainless Steel: Known for superior corrosion resistance, these are ideal for boat owners who frequently launch their trailers in salt or fresh water.
- Raw Steel: Often used in heavy-duty or industrial applications where aesthetics are secondary to raw strength. These require regular lubrication and coating to prevent surface rust.
The Importance of Proper Maintenance
Because the hitch ball experiences constant friction with the trailer coupler, it is subject to wear and tear. Over time, the sphere can develop flat spots or reduce in diameter, which creates "slop" or excess play in the connection. This vibration can damage the coupler and affect vehicle handling. Proper maintenance involves:
- Lubrication: Applying a light layer of high-quality grease to the ball reduces friction and prevents binding during turns.
- Cleaning: After towing, especially in wet or salty conditions, clean the ball thoroughly to remove debris and corrosive agents.
- Inspection: Before every trip, check the torque on the nut securing the shank. If the ball shows signs of significant rust or metal fatigue, replace it immediately.
💡 Note: A well-lubricated ball should move smoothly within the coupler; if you hear excessive grinding or squealing, check your lubrication levels immediately.
Installation Best Practices
Installing a hitch ball is a straightforward process, but it requires attention to detail. First, ensure the shank fits snugly into the hole of your ball mount. If there is too much clearance, you may need a reducer bushing. Once inserted, apply the lock washer and nut provided by the manufacturer. Use a torque wrench to tighten the nut to the specific foot-pounds recommended in the manual—do not simply guess or use a standard wrench by feel.
If you are towing frequently, consider using a thread-locking compound on the shank threads to prevent the nut from vibrating loose over hundreds of miles of travel. After the first 50 miles of towing a new setup, it is a smart practice to pull over and verify that the nut is still securely fastened, as settling can occur.
Safety Considerations for Towing

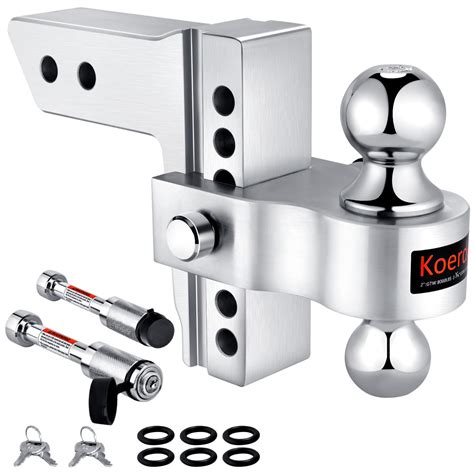

Safety is the primary concern when using a hitch ball. Beyond the connection itself, you must ensure your trailer is level. If the trailer sits at an awkward angle, the tongue weight is improperly distributed, which can cause the trailer to sway uncontrollably at highway speeds. Use an adjustable ball mount if your towing vehicle has a high ride height, ensuring the trailer frame remains parallel to the road surface.
Furthermore, never ignore the safety chains. These are your final line of defense should the coupler fail to stay attached to the ball. Always cross your safety chains underneath the tongue of the trailer, creating a cradle that would catch the tongue if the primary connection were to be severed. Taking these small, deliberate steps ensures that you protect your cargo, your vehicle, and other drivers on the road.
Finalizing your setup is a process of paying attention to the small details that make a big difference. By regularly inspecting the condition of your hitch ball, ensuring that you are using the correct size for your specific coupler, and keeping the assembly clean and properly lubricated, you significantly reduce the risk of mechanical failure on the highway. Always remember that the integrity of your towing operation depends entirely on the strength and security of that single point of contact. Investing in high-quality hardware and adhering to strict maintenance schedules will provide the peace of mind needed for a safe and successful journey, whether you are hauling a simple utility trailer or a heavy-duty camper for a long-distance excursion.
