Experiencing a sudden dead battery or flickering headlights while driving can be a stressful ordeal, and more often than not, the culprit is a failing charging system. If you have ever wondered how to check alternator health, you are taking the first step toward saving hundreds of dollars in unnecessary repairs. The alternator is the heart of your vehicle's electrical system, responsible for keeping your battery charged and powering all electronic components while the engine is running. When it begins to fail, the entire vehicle loses its reliable source of power, making it crucial to diagnose the issue early.
Symptoms of a Failing Alternator
Before pulling out your tools, it is important to recognize the signs that indicate your alternator might be on its way out. Because the alternator works in tandem with the battery, many drivers mistakenly replace the battery when the real problem lies within the charging circuit. Watch out for the following warning signs:
- Dim or Flickering Lights: If your headlights, dashboard lights, or interior lights appear dimmer than usual or pulse while you drive, your alternator is likely struggling to maintain steady voltage.
- Battery Warning Light: The most obvious indicator is the battery icon on your dashboard. This light often signals that the system voltage has dropped below a specific threshold.
- Strange Noises: A growling or whining sound coming from the engine bay, specifically near the serpentine belt, can indicate failing bearings inside the alternator.
- Slow Starting or Stalling: If your car struggles to start or stalls frequently, it could mean the spark plugs aren’t receiving enough electricity to keep the engine combustion cycle going.
- Electrical Glitches: Windows moving slower than normal, radio display issues, or inaccurate speedometer readings are classic signs of erratic power output.
Required Tools for Testing
You do not need an entire mechanic’s shop to perform this check. In fact, most diagnostic steps can be handled with one primary tool: a multimeter. A multimeter is an inexpensive device that measures electrical voltage, current, and resistance. Before starting, ensure you have the following:
- Digital Multimeter
- Safety gloves and eye protection
- Basic knowledge of your vehicle’s battery terminal locations
Step-by-Step Guide: How To Check Alternator with a Multimeter
Once you have your equipment ready, follow these precise steps to determine if your charging system is performing within the manufacturer’s specifications. Always ensure the engine is cool before working under the hood.
1. Inspect the Battery and Belts First
Before testing the electrical output, perform a visual inspection. Check the serpentine belt for signs of cracking, fraying, or excessive slack. A loose belt can cause the alternator to spin slower than required. Also, check for corrosion on the battery terminals; sometimes, a bad connection is the only thing preventing a healthy alternator from charging the battery.
2. Setting the Multimeter
Turn your multimeter dial to the DC Voltage (DCV) setting. Usually, this is marked with a “V” followed by a straight line and dots. Set the range to 20V, as vehicle batteries typically operate between 12V and 15V.
3. Test the Battery at Rest
With the engine turned off, touch the red probe to the positive (+) terminal and the black probe to the negative (-) terminal. A healthy battery should read between 12.2V and 12.6V. If the reading is significantly lower, your battery might be discharged, and the alternator will have to work overtime to recharge it.

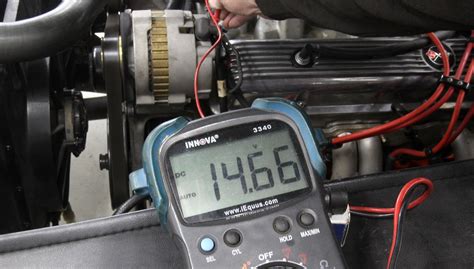

4. Test the Alternator Under Load
Start the engine. Place the probes on the battery terminals again while the engine is idling. A functioning alternator should push the reading up to between 13.5V and 14.5V. If the voltage remains near 12V or drops, the alternator is not outputting power.
| Test Condition | Expected Voltage | Diagnosis |
|---|---|---|
| Engine Off | 12.2V - 12.6V | Normal Battery State |
| Engine Idling | 13.5V - 14.5V | Alternator Charging Correctly |
| Engine Idling | Under 13V | Alternator Likely Faulty |
| Engine Idling | Over 15V | Voltage Regulator Failure |
💡 Note: If your voltage reading exceeds 15V, this suggests that the internal voltage regulator of the alternator is damaged. This can boil the battery acid and cause catastrophic failure to your car's electronic control modules.
Using the “Load Test” Method
To verify the alternator’s performance under stress, you should perform a load test. With the engine still running, turn on high-draw electrical components such as the headlights, high beams, cabin heater fan at maximum speed, and the rear defroster. Observe the multimeter reading. The voltage should remain steady above 13V. If the voltage dips significantly when these items are activated, your alternator is failing to produce enough amperage to handle the load.
💡 Note: Always ensure your engine is in a well-ventilated area before running it for extended testing periods to prevent carbon monoxide accumulation.
Advanced Diagnostics and Professional Help
If your multimeter tests are inconclusive, or if the results are inconsistent, the issue might be an intermittent internal short within the alternator’s diode bridge. In many modern vehicles, the charging system is controlled by the Engine Control Unit (ECU). If you have followed the steps above and found no clear fault, you may need to take your vehicle to a professional shop where they use an inductive clamp meter to measure amperage output, which provides a much more detailed view of the alternator’s health than voltage alone.
Understanding how to check alternator health is a fundamental skill for any vehicle owner. By performing these simple voltage tests, you can distinguish between a dying battery and a faulty charging component, preventing unnecessary part replacements and roadside breakdowns. Always prioritize safety by wearing protective gear and ensuring that your multimeter leads are firmly connected to the terminals before starting the engine. Regular monitoring of your charging system not only extends the life of your battery but also ensures that your vehicle remains dependable during your daily commutes. If you find the voltage is consistently out of range, addressing the problem promptly will help you avoid further damage to your car’s complex electrical architecture.
