Discovering that your "Check Engine" light has illuminated is never a pleasant experience, but identifying the culprit as an evaporative emission control system (EVAP) issue is quite common. The EVAP system is designed to trap gasoline vapors before they escape into the atmosphere, helping your vehicle remain environmentally friendly. When the system detects a breach, you need to know how to check evap leak effectively to save time and money on potential mechanic visits. Whether you are dealing with a loose gas cap or a cracked vacuum line, troubleshooting this issue requires a systematic approach.
Understanding the EVAP System
Before diving into the diagnostics, it is helpful to understand what the EVAP system actually does. This closed-loop system captures fuel vapors from the gas tank and routes them through a charcoal canister, where they are stored until the engine is running and conditions allow them to be burned in the combustion chamber. If there is a leak anywhere in this sealed path, the engine computer (ECU) will detect it, trigger a code, and illuminate the dashboard light.
Common symptoms of an EVAP system leak include:
- A persistent “Check Engine” light.
- A noticeable smell of raw gasoline around the vehicle.
- Poor fuel economy.
- Difficulty filling the gas tank (pump clicking off repeatedly).
Step-by-Step: How To Check Evap Leak
To perform a thorough inspection, you should follow a logical process, moving from the simplest solutions to more complex diagnostic procedures. Always ensure your vehicle is parked on a flat surface and the engine is off.
1. Inspect the Gas Cap
The most common cause of an EVAP leak code is a faulty or loose fuel cap. If the cap is not sealing properly, vapors can escape. Inspect the rubber seal on the cap for cracks, debris, or hardening. If it looks damaged, replacing it is an inexpensive and quick fix.
2. Visually Inspect Hoses and Connections

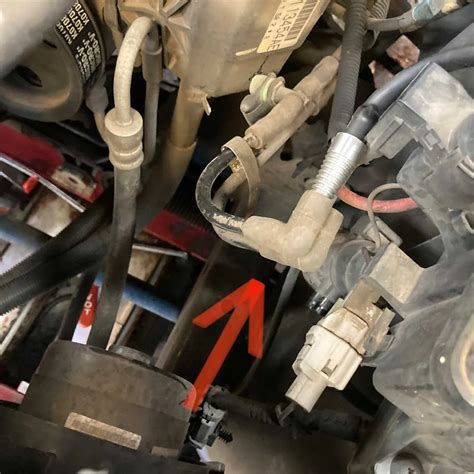

Locate the EVAP system components under the hood and near the fuel tank. Look for any rubber hoses that appear cracked, dry-rotted, or disconnected. Pay close attention to the charcoal canister area, as this is a high-traffic zone for vapor flow.
3. Use an OBD-II Scanner
Using an OBD-II scanner is essential to pinpoint the specific issue. Codes such as P0440, P0442, or P0456 indicate different levels of leak severity. This tool allows you to read live data and often perform an “EVAP Service Bay Test” if your vehicle’s computer supports it.
4. Perform a Smoke Test
If visual inspection fails, a smoke machine is the industry standard for finding leaks. By injecting specialized non-toxic smoke into the EVAP system, you can easily see smoke escaping from a crack in a hose, a faulty seal, or a damaged canister.
⚠️ Note: If you do not have access to a professional smoke machine, you can sometimes use a DIY setup, but be extremely careful not to over-pressurize the system, as this can damage the charcoal canister.
Diagnostic Quick Reference Table
| Trouble Code | Description | Likely Culprit |
|---|---|---|
| P0440 | General EVAP System Malfunction | Loose gas cap or damaged vacuum line |
| P0442 | Small Leak Detected | Small crack in hose or failing seal |
| P0456 | Very Small Leak Detected | Faulty gas cap gasket or pinhole leak |
| P0446 | Vent Control Circuit | Stuck EVAP vent solenoid |
Addressing Common EVAP Components
When you are learning how to check evap leak issues, you will frequently encounter three primary components that tend to fail over time:

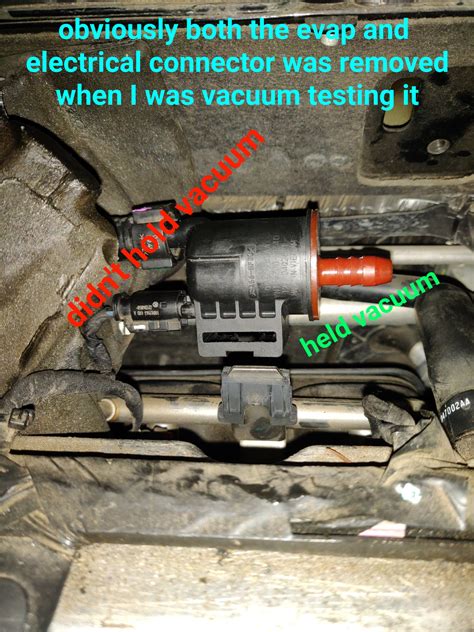

- Purge Valve: This valve controls the flow of vapors into the engine. If it sticks open or closed, it will trigger an error code.
- Vent Solenoid: This part allows fresh air to enter the system. If it gets clogged with dirt or fails electronically, the system cannot function correctly.
- Charcoal Canister: Over time, the charcoal inside can break down or become saturated, leading to leaks or system blockage.
💡 Note: Always disconnect the battery negative terminal before replacing electronic solenoids or valves to prevent short-circuiting the system.
Mastering the ability to diagnose and repair your own EVAP system can save you hundreds of dollars in shop fees. By starting with the basic inspection of your gas cap and moving toward visual hose checks or using a smoke test, you can methodically isolate the source of the leak. Keep in mind that patience is your greatest asset; taking the time to trace every line will often reveal a simple, inexpensive fix rather than a complex component failure. Whether it is a cracked hose or a faulty solenoid, following these steps will guide you toward restoring your vehicle’s environmental performance and clearing that stubborn dashboard warning light once and for all.
