How To Find Torque

Understanding how to find torque is a foundational skill for engineers, mechanics, and DIY enthusiasts alike. Whether you are tightening a bolt on an engine, designing a mechanical linkage, or simply trying to understand the rotational forces at play in a system, torque is the measurement you need. At its simplest, torque is a measure of the force that can cause an object to rotate about an axis. Just as force is what causes an object to accelerate in linear motion, torque is what causes an object to acquire angular acceleration. Mastering the calculation and application of this force ensures that components are held securely, machinery operates efficiently, and safety standards are met across various industries.

Table of Contents

What is Torque?

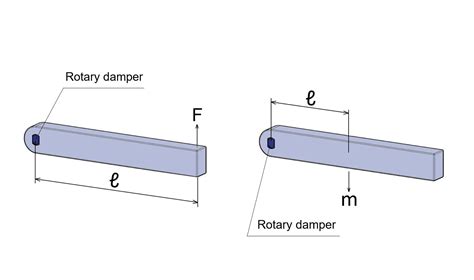

To grasp the concept of how to find torque, one must first define it clearly. Torque, often denoted by the Greek letter tau (τ), is defined as the product of the magnitude of the force applied, the distance from the pivot point (the lever arm), and the sine of the angle between them. Essentially, it is the rotational equivalent of linear force. When you apply a force to a wrench to turn a bolt, you are generating torque. The further away from the bolt you apply the force, the easier it becomes to turn, which highlights the critical relationship between distance and rotational effort.

The Formula for Torque

The mathematical representation of torque is straightforward, provided you identify the variables correctly. The formula used to calculate torque is:

Step-by-Step Guide on How to Find Torque

Learning how to find torque involves a systematic approach to ensure accuracy. Whether you are performing a manual calculation or using a tool, following these steps will provide reliable results.

Identify the Pivot Point: Determine exactly where the rotation occurs. For a bolt, this is the center of the bolt head.
Measure the Lever Arm (r): Measure the distance from the pivot point to the exact location where the force is applied. Ensure your units are consistent (meters or feet).
Determine the Force (F): Identify the amount of force being applied. This is typically measured in Newtons (N) or pounds-force (lbf).
Check the Angle (θ): If the force is not being applied at a 90-degree angle, you must measure the angle relative to the lever arm to use the sine function correctly.
Perform the Calculation: Multiply your distance, force, and the sine of the angle to reach the final value.

Torque Conversion Reference

When working with international specifications, you may need to convert between different units of measurement. Use the table below for quick conversions related to how to find torque values accurately.

From	To	Multiply By
Newton-meters (N·m)	Foot-pounds (ft-lb)	0.7376
Foot-pounds (ft-lb)	Newton-meters (N·m)	1.3558
Newton-meters (N·m)	Inch-pounds (in-lb)	8.8507
Inch-pounds (in-lb)	Foot-pounds (ft-lb)	0.0833

⚠️ Note: Always ensure that your measurement units (metric vs. imperial) are consistent throughout your entire equation before calculating to avoid significant errors.

Practical Applications in Engineering

Knowing how to find torque is vital in real-world scenarios. In automotive engineering, engines are rated by their torque output, which dictates the vehicle's ability to accelerate from a stop. Mechanics also use torque wrenches to tighten bolts to precise manufacturer specifications. If you apply too little torque, the component may vibrate loose; if you apply too much, you risk stripping the threads or snapping the bolt entirely.

Furthermore, in structural design, torque calculations help engineers ensure that beams, shafts, and other load-bearing members can handle rotational stresses without failing. By understanding the physics behind torque, professionals can design safer, more durable systems that withstand daily operational stresses.

Common Mistakes to Avoid

Even with the right formula, mistakes can happen. Here are some common pitfalls when learning how to find torque:

Ignoring the Angle: Assuming every force is applied at 90 degrees can lead to inaccurate readings if the user is pulling at an angle.
Unit Mismatch: Using centimeters instead of meters, or failing to convert foot-pounds to inch-pounds correctly, often results in catastrophic hardware failure.
Measuring from the Wrong Pivot: Starting your measurement from the edge of the tool handle instead of the center of the bolt (pivot point) will result in incorrect lever arm data.

💡 Note: Always verify the calibration of your torque-measuring tools annually. A tool that is out of calibration will provide false readings, regardless of your mathematical precision.

Using Torque Wrenches

When manual calculation isn't enough, torque wrenches are the standard tool. A torque wrench allows you to set a specific value, ensuring that you apply exactly the right amount of force. To use one effectively, place the wrench on the fastener, hold the handle firmly at the designated grip point, and apply force until the wrench clicks or indicates that the target value has been reached. This takes the guesswork out of how to find torque for critical mechanical assemblies.

By consistently applying the principles of physics and using the correct tools, you can manage rotational forces with confidence. Whether you are dealing with complex machinery or simple household repairs, the ability to calculate and verify torque ensures structural integrity and optimal performance. Start by measuring your distances accurately, respecting the angle of force, and always double-checking your units, and you will find that managing these forces becomes second nature in your technical projects.
