How To Measure Diameter

Whether you are a DIY enthusiast, a student tackling a geometry project, or a professional working in manufacturing, understanding how to measure diameter is a fundamental skill. At its simplest, the diameter is the straight-line distance across a circle, passing directly through its center. While this sounds straightforward, the method you choose depends heavily on the object's shape, size, and the level of precision required. From measuring a simple pipe or a tree trunk to finding the diameter of a circular hole, having the right tools and techniques can make all the difference in achieving accurate results.

Table of Contents

Understanding the Basics of Diameter

Before diving into the tools, it is crucial to recognize what exactly you are measuring. The diameter is always defined as twice the radius. If you cannot measure directly across the center, you might be tempted to guess; however, guessing often leads to significant errors. For circular objects, the measurement must be taken at the widest possible point. If your measurement is even slightly off-center, you are essentially measuring a chord rather than the true diameter, which will provide an inaccurate figure.

Choosing the Right Tools for the Job

The tool you select will often dictate the accuracy of your work. For general tasks, a standard ruler might suffice, but for industrial precision, you need specialized equipment. Here is a breakdown of common tools used for diameter measurement:

Tool	Best Used For	Precision Level
Standard Ruler	General estimation of large items	Low
Digital Calipers	Small precision parts	High
Pi Tape	Large cylindrical objects	Medium-High

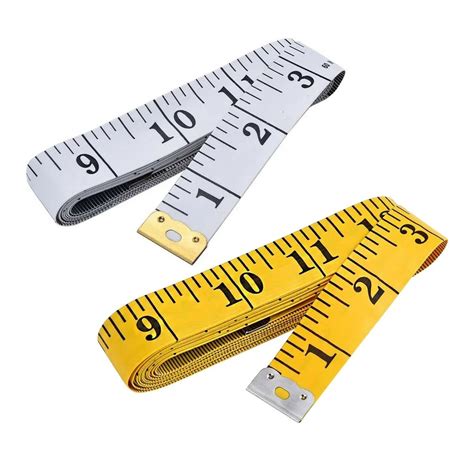

String/Measuring Tape	Trees, pillars, or large pipes	Low-Medium

Step-by-Step Guide: How to Measure Diameter with Calipers

If you are looking for professional-grade accuracy, calipers are your best friend. They are designed to grip the outer edges of an object firmly, providing a direct readout.

Zero the Tool: Ensure your digital caliper is turned on and set to zero before you begin. If using analog vernier calipers, check that the jaws meet perfectly at zero.
Open the Jaws: Slide the jaws open wide enough to fit the object you are measuring.
Position the Object: Place the object between the internal or external jaws. For diameter, use the large external jaws.
Apply Light Pressure: Close the jaws until they just make contact with the surface. Do not squeeze, as this can deform the object or skew the measurement.
Read the Value: Observe the display or the alignment of the vernier scale to determine the exact measurement.

⚠️ Note: Always measure the same spot twice to verify consistency and eliminate human error from your reading.

Using the Circumference Method

Sometimes, an object is too large or too bulky to place between the jaws of a caliper. In these cases, you can use the mathematical relationship between the circumference and the diameter. The formula is simple: Diameter = Circumference / π (Pi).

Common Challenges When Measuring

Even with the best tools, you might encounter issues. One frequent problem is the “out-of-round” issue. Many manufactured parts are not perfectly circular due to tolerance variances. To account for this, take measurements at several different angles. If the measurements differ, calculate the average to find the nominal diameter. Another common pitfall is failing to keep the measuring tool perpendicular to the object’s axis. If your ruler is tilted, you will be measuring a diagonal line, which is always longer than the true diameter.

💡 Note: When measuring soft materials like rubber, be careful not to compress the material during the measurement, as this will lead to an artificially small diameter reading.
