Inclined Plane Examples

The inclined plane is one of the most fundamental concepts in physics and engineering, serving as one of the six classical simple machines identified by Renaissance scientists. At its core, an inclined plane is a flat supporting surface tilted at an angle, with one end higher than the other. This simple setup allows us to move heavy objects across distances with significantly less force than would be required to lift them vertically. By understanding various Inclined Plane Examples, we gain insight into how human innovation has harnessed basic mechanical principles to simplify labor, construction, and transportation across centuries of development.

Table of Contents

The Physics Behind the Inclined Plane

To fully appreciate the utility of this simple machine, one must look at the relationship between force, distance, and work. When you lift an object straight up, you must exert a force equal to the object’s weight. When using an inclined plane, you trade distance for force; you move the object over a longer path, but you require less effort to reach the same height. This mechanical advantage is what makes slopes and ramps so effective in both industrial and everyday settings.

The efficiency of an inclined plane is determined by its angle of inclination. A gentler slope requires less force but covers a longer distance, while a steeper slope requires more force but covers a shorter distance. This trade-off is the hallmark of mechanical efficiency in simple machines.

Common Everyday Inclined Plane Examples

You encounter Inclined Plane Examples in almost every facet of modern life, often without realizing it. From the way our homes are built to the tools used in complex logistics, these structures are ubiquitous.

Wheelchair Ramps: These are critical for accessibility, allowing individuals with limited mobility to traverse changes in elevation safely and with minimal physical strain.

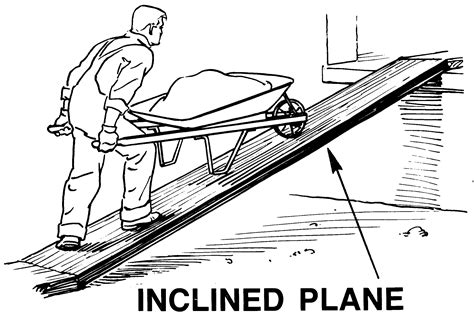

Loading Ramps: Moving heavy freight from the ground onto a truck bed is nearly impossible without the use of a ramp, which serves as a classic inclined plane.
Slides: Found on playgrounds, these utilize gravity and an angled surface to convert potential energy into kinetic energy.
Bathtub Slopes: The internal slope of a tub allows for drainage and ergonomic comfort, reflecting the application of inclined surfaces in design.
Staircases: While often viewed as a separate mechanism, stairs are essentially a series of inclined steps that function similarly to a ramp in allowing vertical ascent.

💡 Note: The mechanical advantage of an inclined plane increases as the slope length increases relative to its height, provided the surface friction remains low.

Mechanical Tools That Utilize the Inclined Plane

Many of the tools we use in the kitchen and the workshop are actually modifications of the inclined plane. When two inclined planes are joined back-to-back, they form a wedge, and when wrapped around a cylinder, they form a screw. Here is a breakdown of how these variations function:

Tool Type	Mechanism	Practical Application
Wedge	Two inclined planes joined together	Axes, knives, and doorstops
Screw	An inclined plane wrapped around a central core	Bolts, jar lids, and drill bits
Ramp	A single tilted surface	Driveways and loading docks

Inclined Plane Examples in Construction and Industry

In large-scale engineering, the principles of the inclined plane are used to move massive amounts of material. For instance, mountain roads are often designed with “switchbacks”—a series of zig-zagging turns that decrease the incline of the road, making it possible for vehicles to ascend steep terrain without overheating their engines or losing traction. This is a quintessential example of applying physics to improve safety and transportation efficiency.

In the construction of the Great Pyramids, historians believe that massive internal and external ramps were utilized to drag heavy limestone blocks to the top. By spreading the work over a long, gradual slope, the ancient workers could manage weights that would have been impossible to lift using vertical cranes available at the time.

Advantages of Using Inclined Planes

The primary benefit of utilizing an inclined plane is the reduction of the force required to move a load. This is essential for protecting human health and reducing the mechanical wear and tear on lifting equipment. Consider the following advantages:

Practical Tips for Using Inclined Planes

To maximize the utility of these simple machines, keep the following guidelines in mind:

Surface Friction: Use materials like rubber mats if you need more grip, or smooth metal tracks if you need to reduce drag.
Angle Optimization: If you find the effort is too high, lengthen the ramp. A longer path is always easier to traverse than a steeper one.
Load Distribution: Ensure the object is centered on the inclined plane to prevent tipping, particularly on narrow ramps.

Reflecting on Mechanical Foundations

The inclined plane is much more than just a piece of slanted ground; it is a fundamental pillar of mechanical physics that bridges the gap between massive effort and manageable work. By understanding the diverse Inclined Plane Examples surrounding us, we can better appreciate the ingenuity behind common structures and tools. Whether it is a wheelchair ramp facilitating accessibility, a screw holding furniture together, or a switchback road scaling a mountain, the principle remains the same: simplifying complex physical tasks through calculated design. As we continue to innovate in engineering and technology, this basic machine remains a timeless example of how simple physics can solve some of the most persistent challenges in labor and logistics. By mastering the balance of force and distance, we can continue to create safer, more efficient environments for everyone.
