Include Picture In Latex

Mastering the art of typesetting often feels like a steep learning curve, especially when you are transitioning from standard word processors to the precision of LaTeX. One of the most frequently asked questions by students, researchers, and technical writers is how to effectively include picture in LaTeX documents. While LaTeX is primarily a text-based system, its ability to handle high-quality graphics is one of its strongest features. By understanding the underlying mechanics of how the system processes images, you can create professional-grade documents that look polished and academically rigorous.

Table of Contents

Understanding the Graphicx Package

The foundation of all image handling in LaTeX is the graphicx package. Without this, LaTeX cannot communicate with your image files or interpret their dimensions. To get started, you must include the package in your document preamble—the area before the egin{document} command. Using this package allows you to manipulate, scale, and rotate images with minimal effort.

To initialize the package, simply add the following line to your preamble:

The Standard Syntax for Image Insertion

The basic command to import a file is includegraphics{filename}. However, this often results in images that are either too large or too small for the page margins. To maintain professional standards, you should always include parameters within the square brackets of the command. For example, to set the width of an image relative to the width of the text, you would use:

includegraphics[width=0.8 extwidth]{my_image.png}

This tells LaTeX to make the image 80% as wide as the text area, ensuring it never overflows the margins. Here are some commonly used parameters to control your output:

Using the Figure Environment

While includegraphics handles the file, the figure environment handles the placement and labels. In LaTeX, images are considered "floats." This means the system decides the best place to put the image to avoid large gaps in your text. By placing your image inside a figure environment, you gain access to captions, labels, and automatic numbering.

A typical structure looks like this:

egin{figure}[htbp]
centering
includegraphics[width=0.5 extwidth]{image.jpg}
caption{This is the caption for my image.}
label{fig:example}
end{figure}

The placement specifiers [htbp] tell LaTeX to try putting the image "here" (h), at the "top" of the page (t), at the "bottom" (b), or on a separate "page" (p) if necessary. This helps maintain a professional layout even as your text changes.

Comparison of Common Image Formats

When you decide to include picture in LaTeX, the file format plays a significant role in the final quality of your PDF output. Vector formats are generally preferred for diagrams and plots, while raster formats are best for photographs.

Format	Best For	Advantages
PDF	Vector Graphics	Perfect scaling without quality loss.
PNG	Screenshots/Web	Supports transparency.
JPG	Photographs	Small file size for complex colors.
EPS	Legacy Systems	Widely used in scientific publications.

Tips for Better Image Management

Managing images in large documents can become tedious. To stay organized, consider creating an "images" or "figures" subfolder within your project directory. If you do this, you must specify the path in your preamble using the graphicspath command:

graphicspath{ {images/} }

Additionally, always use the label command after your caption. This allows you to reference the image anywhere in your text using ef{fig:example}, ensuring that if you add more images later, the numbering remains consistent and automatic.

💡 Note: If you find that your images are appearing at the very end of your document or in unexpected places, adding usepackage{float} to your preamble and using [H] as an option in your figure environment forces LaTeX to place the image exactly where you typed the code.

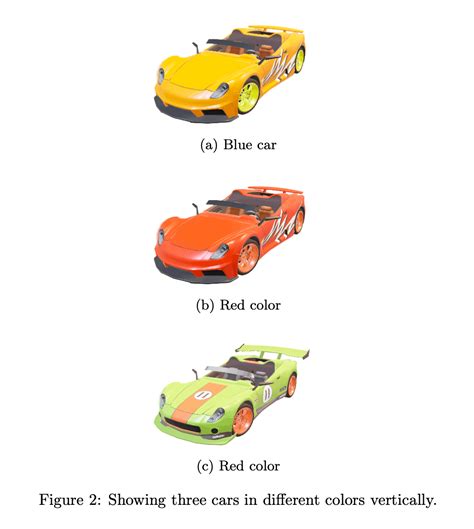

Handling Subfigures

Sometimes, you need to group several images together under a single figure heading. This is achieved using the subcaption package. By using the subfigure environment, you can align multiple images side-by-side or stacked, each with its own individual sub-caption while maintaining one main figure title.

This method is essential for academic reports where you might want to compare two related charts. It keeps your document clean and saves space, allowing for more concise explanations without sacrificing the visual clarity provided by side-by-side comparisons.

By following these systematic steps, you can effectively incorporate visuals into your documentation without the common frustrations often encountered by beginners. Always remember that the beauty of LaTeX lies in its ability to handle the “heavy lifting” of layout and alignment once you provide the correct instructions. By utilizing the graphicx package, defining proper figure environments, and organizing your files logically, your final document will achieve a professional appearance that is consistent and easy to manage. Whether you are adding a simple diagram or a complex series of scientific charts, mastering these commands will empower you to communicate your data and visual information with clarity and precision, ensuring that your work stands out for its structural integrity and visual appeal.
