In the modern landscape of water treatment and chemical processing, ion exchange resin serves as an indispensable technology. These synthetic, bead-like materials possess a unique ability to act as a chemical filter, swapping undesirable ions in a solution for more favorable ones. Whether you are purifying drinking water, refining pharmaceutical products, or managing industrial wastewater, understanding how this technology functions is essential for optimizing efficiency and maintaining high-quality standards.
Understanding Ion Exchange Resin Mechanics

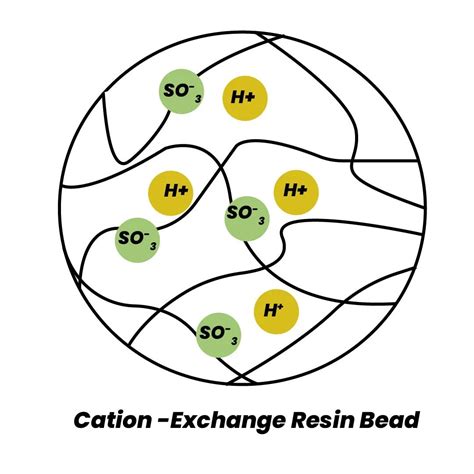

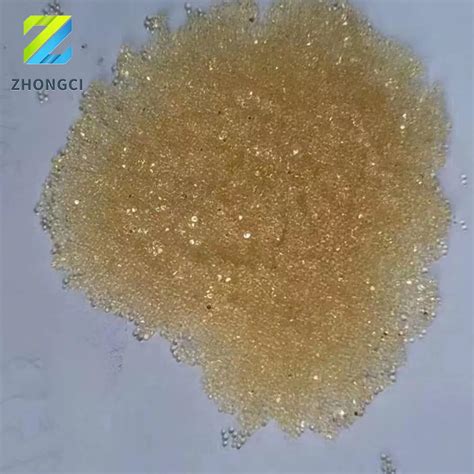

At its core, an ion exchange resin consists of a polymer matrix—typically polystyrene cross-linked with divinylbenzene—that acts as the structural backbone. Attached to this matrix are functional groups that carry an electric charge. Because these beads are insoluble in water, they provide a stationary phase through which a liquid can pass, allowing for highly selective chemical interactions.
The process functions based on the principle of electrostatic attraction. When a solution passes through a column filled with these beads, the ion exchange resin effectively "grabs" targeted ions while releasing a stoichiometrically equivalent amount of other ions into the treated liquid. This mechanism is primarily utilized in two ways: cation exchange, where positively charged ions are swapped, and anion exchange, where negatively charged ions are swapped.
Types and Classifications
To effectively implement this technology, it is vital to distinguish between the different types of resins available. Each variety is engineered for specific chemical affinities and operational pH ranges. Generally, we categorize them based on the strength of their functional groups:

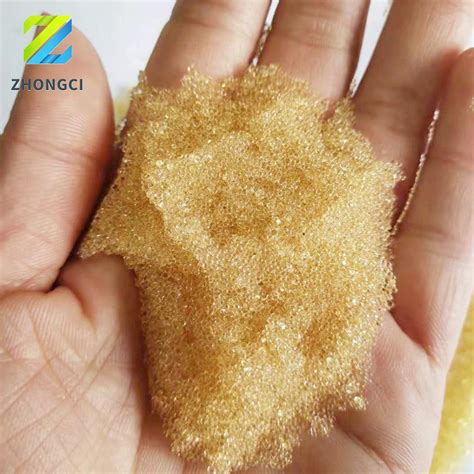

- Strong Acid Cation (SAC) Resins: Highly effective at removing total hardness (calcium and magnesium) and are commonly used in water softening.
- Weak Acid Cation (WAC) Resins: Used specifically for dealkalization and the removal of hardness associated with alkalinity.
- Strong Base Anion (SBA) Resins: Ideal for total demineralization and the removal of silica and weak acids.
- Weak Base Anion (WBA) Resins: Excellent for removing strong acid anions like sulfates and chlorides when high purity isn't the primary goal.

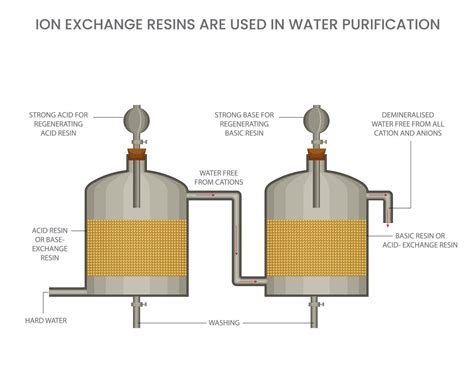

Choosing the correct ion exchange resin depends heavily on the specific contaminants present in your source water. For instance, in industrial boiler feed water applications, a combination of SAC and SBA resins is often employed to ensure the water is completely demineralized to prevent scaling and corrosion.
Comparison Table of Resin Characteristics
| Resin Type | Common Application | Operating pH Range |
|---|---|---|
| Strong Acid Cation | Water Softening | 0 - 14 |
| Weak Acid Cation | Dealkalization | 5 - 14 |
| Strong Base Anion | Demineralization | 0 - 14 |
| Weak Base Anion | Removal of strong acids | 0 - 9 |
Operational Best Practices
Maintaining the longevity and performance of your ion exchange resin requires strict adherence to regeneration protocols. Over time, the active sites on the beads become saturated with the captured ions. Once this "breakthrough" point is reached, the resin must be chemically regenerated to restore its capacity.
Regeneration usually involves passing a concentrated solution of regenerant—typically a salt brine for softening or acid/caustic solutions for demineralization—back through the resin bed. This forces the captured ions off the beads and replaces them with the original ions, effectively resetting the system.
⚠️ Note: Always ensure that your regeneration chemicals are handled with appropriate safety gear, as they are often highly corrosive or caustic substances.
Furthermore, managing the flow rate is critical. If the water flows too rapidly, the ions do not have enough "contact time" with the beads to complete the swap. If it flows too slowly, you may experience unnecessary downtime. Monitoring the pressure drop across the resin bed is a standard way to ensure the system is not fouled by suspended solids.
Common Challenges and Troubleshooting
Even with high-quality ion exchange resin, issues can arise over time. One of the most frequent problems is "fouling," where the surface of the beads becomes coated with organic matter, iron, or silt. This prevents the ions from accessing the internal active sites of the resin, causing a significant drop in exchange capacity.
To mitigate this, operators should consider the following:
- Pre-filtration: Use multimedia filters or carbon filters to remove suspended solids before water reaches the resin.
- Backwashing: Regular backwashing cycles are essential to expand the resin bed and clear out any trapped debris.
- Chemical Cleaning: Occasionally, specialized cleaning agents may be required to strip biofilms or heavy metal deposits that backwashing alone cannot remove.
It is also important to note that thermal degradation can occur if the operating temperature exceeds the manufacturer's recommendation. Constant exposure to high temperatures will cause the polymer matrix to break down, resulting in physical bead cracking and the release of organic fragments into the treated water.
💡 Note: Documenting your effluent quality daily can help you predict when your resin is reaching its end-of-life cycle, preventing unexpected system failure.
Industrial Applications
Beyond simple residential water softening, the versatility of ion exchange resin has revolutionized several industries. In the food and beverage sector, it is used for decolorizing sugar syrups and removing bitter compounds from fruit juices. In the pharmaceutical industry, it facilitates the isolation and purification of specific proteins and active ingredients.
Furthermore, in the field of environmental protection, ion exchange systems are used for the recovery of precious metals from industrial waste streams and the removal of toxic heavy metals such as lead, chromium, and mercury from wastewater. By sequestering these pollutants, facilities can comply with strict environmental regulations while potentially recovering valuable materials for reuse.
Selecting the right resin involves not just evaluating capacity, but also considering the particle size and physical durability. Uniform particle size resins, for instance, offer better hydraulic performance and more efficient regeneration compared to traditional heterogeneous resins. As the technology continues to evolve, we are seeing the development of more durable resins capable of operating in harsher chemical environments, further expanding the scope of what can be achieved through ion exchange.
The strategic implementation of ion exchange technology is a cornerstone of effective resource management and process purity. By carefully selecting the appropriate resin type, adhering to precise regeneration schedules, and implementing robust pre-treatment practices, organizations can ensure that their water systems operate at peak efficiency. As we look toward a future where high-quality water and resource reclamation are increasingly vital, the role of these sophisticated polymers will only become more prominent. Maintaining these systems with a clear understanding of their chemistry and physical requirements ensures long-term operational success and sustainability in any application.
