When it comes to construction and industrial fastening, the J bolt stands out as one of the most versatile and essential pieces of hardware available. Often referred to as a hook bolt, this fastener is characterized by its distinct "J" shape, which allows it to anchor objects securely into concrete or hold components in place in various structural applications. Whether you are a professional contractor working on a commercial site or a DIY enthusiast tackling a backyard project, understanding the nuances of how to select, install, and maintain these bolts is crucial for structural integrity.
Understanding the Mechanics of a J Bolt

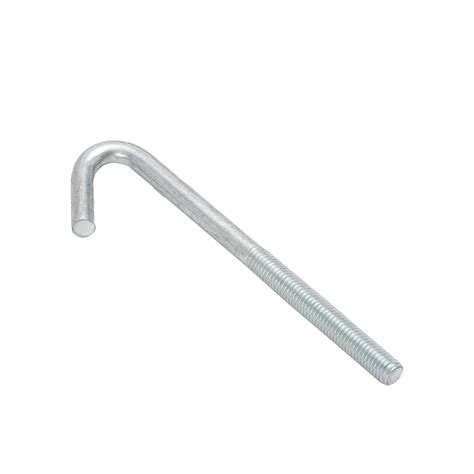

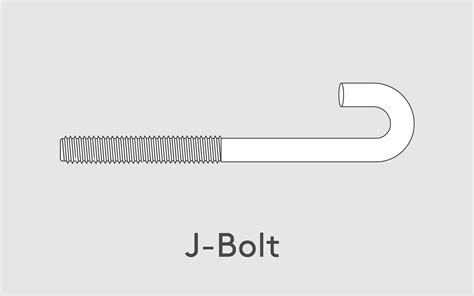

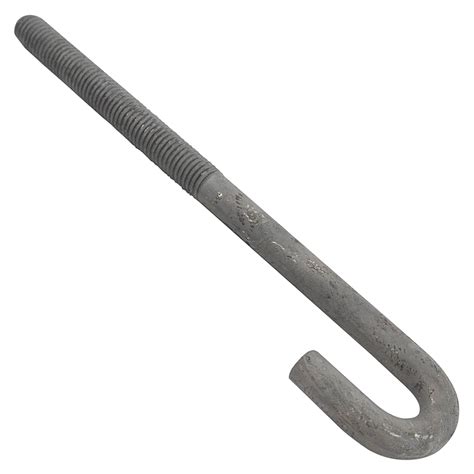

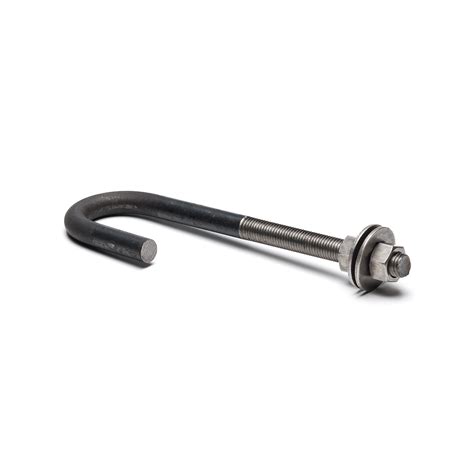

The J bolt is not just a simple piece of bent metal; it is a precision-engineered anchor. The shape is specifically designed to distribute loads evenly. The hook end is embedded into concrete or wrapped around a structural member, while the threaded end provides a secure point to fasten nuts, plates, or other connection hardware. Because they are often used in load-bearing scenarios, they are typically manufactured from high-strength carbon steel, stainless steel, or galvanized materials to prevent corrosion.
The primary advantage of using a J bolt lies in its mechanical locking capability. Once set into wet concrete or hooked around an anchor point, the curved base resists pull-out forces far better than a straight anchor bolt would. This makes them the industry standard for securing heavy machinery, columns, and building frames to foundations.
Key Applications in Modern Construction
You will find the J bolt in a wide array of environments. Because of its unique geometry, it excels in tasks where traditional fasteners might fail or require extensive modification. Common applications include:
- Foundation Anchoring: Used to secure sill plates to concrete foundations in residential and commercial framing.
- Industrial Machinery: Essential for bolting heavy-duty equipment to factory floors to dampen vibration.
- Solar Panel Installation: Frequently used to mount mounting brackets to structural steel components.
- Fencing and Signage: Ideal for attaching posts to existing concrete pads or masonry.
- Marine Environments: Stainless steel variants are utilized for securing decking and dock hardware where saltwater exposure is a concern.
Technical Specifications and Material Selection
Choosing the right material for your J bolt project is as important as the installation itself. If you select the wrong coating for the environment, you risk premature rust, which compromises the structural safety of your build. Use the table below as a quick reference guide for common material applications.
| Material Type | Best Use Case | Corrosion Resistance |
|---|---|---|
| Plain Carbon Steel | Indoor, dry environments | Low (requires painting) |
| Hot-Dipped Galvanized | Outdoor/Exposed structures | High |

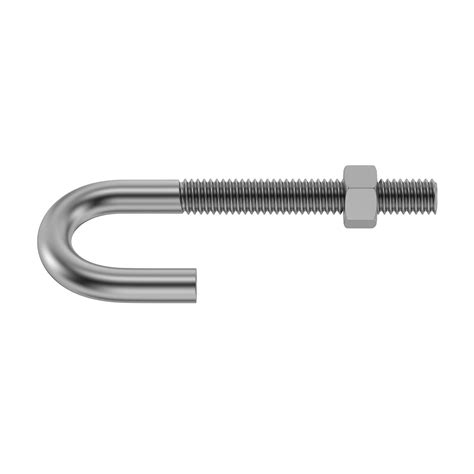

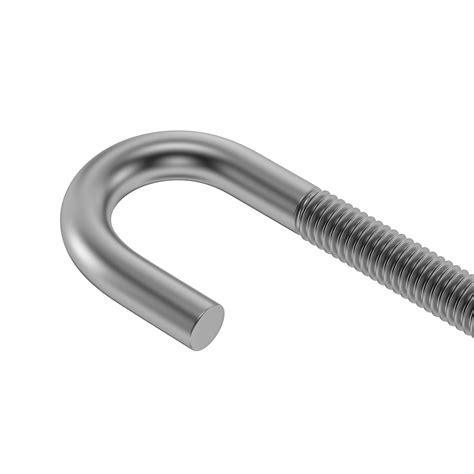

| Stainless Steel (304/316) | Marine or chemical environments | Excellent |
⚠️ Note: Always verify the load-bearing requirements with a structural engineer before installing bolts in critical foundation work, as local building codes often dictate specific steel grades and embedment depths.
Step-by-Step Installation Guidelines
Installing a J bolt correctly requires patience and precision. If you are casting these bolts directly into wet concrete, follow these steps to ensure they remain perfectly aligned:
- Template Preparation: Build a wooden template that holds the bolts in the exact desired position. This prevents the bolts from shifting as the concrete is poured.
- Depth Calibration: Ensure the threaded portion is exposed at the correct height, accounting for the thickness of any base plates or leveling nuts.
- Securing the Bolts: Attach the bolts to the template using nuts. The “J” curve should face toward the center of the concrete mass to maximize pull-out resistance.
- Vibration Control: As you pour concrete, avoid hitting the bolts directly with vibratory tools, as this can cause them to move out of alignment.
- Curing: Allow the concrete to reach its full strength before tightening the nuts onto the exposed threads.
⚠️ Note: If you are installing into existing concrete, use a high-strength epoxy or grout to secure the bolt in a pre-drilled hole, ensuring that the anchor point is fully encapsulated.
Maintaining Structural Integrity Over Time
Even a high-quality J bolt can suffer from wear if not maintained. Over time, environmental factors like moisture and temperature fluctuations can loosen the nut or lead to oxidation. It is recommended to perform an annual inspection of all accessible bolts. Check for signs of surface rust, ensure the nuts are still torqued to the manufacturer’s specifications, and apply anti-seize lubricant if the bolts are in a location that may require future removal or adjustment. For outdoor applications, a simple coat of clear exterior-grade sealant around the point where the bolt enters the concrete can help prevent water ingress, which is the leading cause of internal corrosion.
Final Thoughts on Structural Fastening
Integrating a J bolt into your construction or maintenance routine offers a reliable and proven way to secure critical components. By focusing on the correct material selection, ensuring accurate placement during the installation phase, and performing periodic inspections, you can guarantee that your structures remain safe and stable for years to come. Whether you are anchoring a heavy piece of machinery or securing the framing of a new building, respecting the mechanics of this fastener will serve you well in any project. Remember that safety should always be the priority when dealing with structural components; when in doubt, consult local building regulations and technical datasheets to ensure your implementation meets all current safety standards. Mastering the use of these robust fasteners is a foundational skill that elevates the quality and longevity of any construction effort.
