J Trim

When you embark on a siding installation project, the details often determine the longevity and aesthetic appeal of the final result. Among the most critical components in any vinyl siding job is the J Trim. Often overlooked by novices, this specialized piece of trim acts as the unsung hero of your exterior wall assembly. It provides the necessary channel to house the cut edges of siding panels, ensuring they remain secure, weather-tight, and visually professional. Without proper J-channel installation, your home remains vulnerable to water infiltration and an unfinished appearance that can diminish your property’s curb appeal significantly.

Table of Contents

Understanding the Role of J Trim in Siding Projects

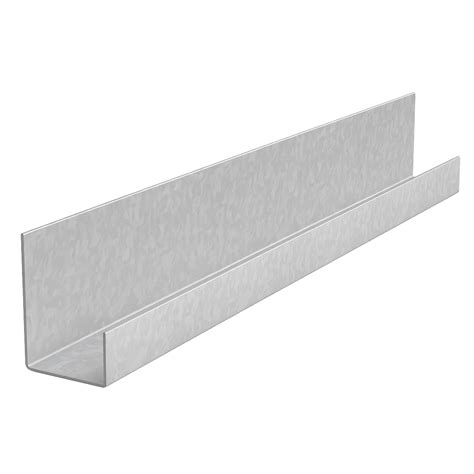

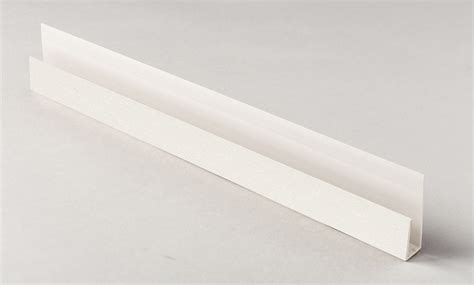

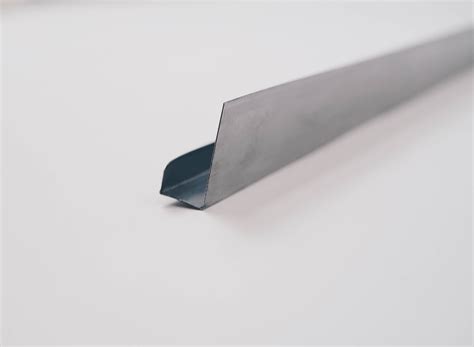

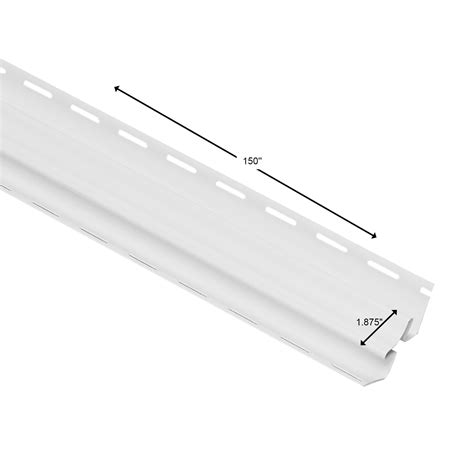

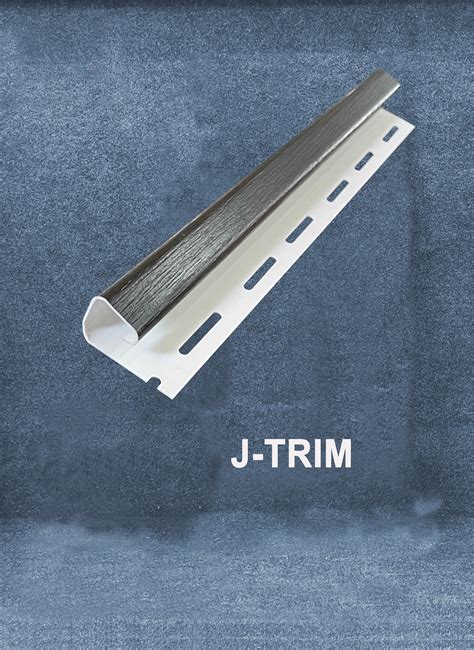

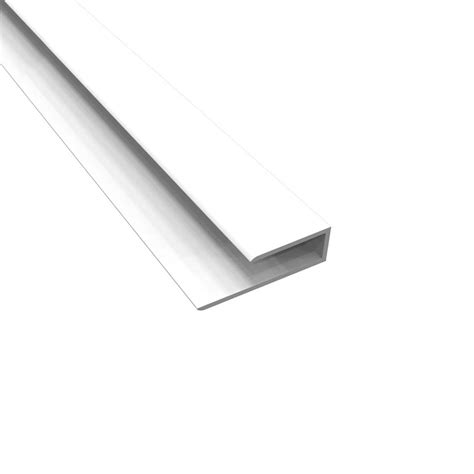

The J Trim gets its name from its distinctive profile, which resembles the letter "J." This channel is specifically designed to receive the ends of siding panels around windows, doors, and transitions between different wall surfaces. By capping off the raw, cut edges of the siding, the trim prevents moisture from seeping behind the exterior cladding, which is essential for protecting your home’s structural sheathing.

Beyond its functional water-shedding capabilities, the trim serves as a vital structural guide. Vinyl siding is a material that expands and contracts significantly with temperature changes. A properly installed J-channel provides enough space for this thermal movement while keeping the panels firmly in place. If the siding were simply butt-jointed against a window frame without this trim, you would likely see warping, buckling, or gaps within just a few seasons.

Essential Tools and Materials for Installation

Before you begin the installation process, it is important to gather the correct tools. Precision is key when working with exterior trim, as small errors can lead to uneven lines that are highly visible once the job is finished. You will need:

Snips or Aviation Shears: Necessary for cutting and notch-trimming the vinyl channels.
Utility Knife: Useful for scoring and snapping pieces when long, straight cuts are required.
Hammer and Siding Nails: Always use corrosion-resistant nails designed for vinyl siding.
Level and Chalk Line: Essential for maintaining a perfectly straight line around your structures.
Measuring Tape: To ensure accurate dimensions for every window or corner.

Comparison of J Trim Profiles and Applications

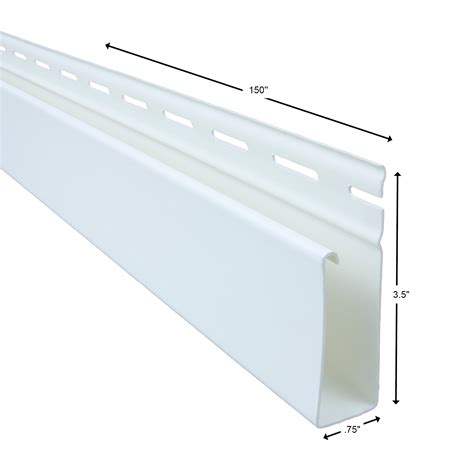

Not all channels are identical. Manufacturers offer variations in depth and width to accommodate different siding thicknesses and aesthetic preferences. Understanding these differences will help you choose the right product for your specific home architecture.

Trim Type	Primary Use	Key Advantage
Standard J Trim	Windows and Doors	Versatile and easy to install.
Wide-Face J Channel	Gable Ends/Large Transitions	Covers larger gaps for a cleaner look.
Flexible J Channel	Arched Windows	Bends to fit curved architectural features.
Starter Strip Combo	Foundation Transitions	Simplifies installation at the base.

💡 Note: Always ensure that your nail heads are not driven too tightly against the trim. Leave a small gap (about 1/16th of an inch) to allow the vinyl to slide and expand naturally during seasonal temperature shifts.

Step-by-Step Installation Guidelines

Installing J Trim effectively requires a methodical approach, particularly when dealing with corners where two pieces of trim meet. If you rush this step, you risk creating an entry point for water. Follow these professional techniques to ensure a watertight seal.

Step 1: Measuring and Cutting

Measure the length of your window or door frame precisely. When cutting the trim for the top of a window, it is common practice to leave the trim slightly longer than the width of the frame. This allows you to create “tabs” that can be folded down, acting as a small gutter to divert water away from the junction.

Step 2: Installing the Base Channel

Always install the bottom piece of the trim first. By starting at the bottom and working your way up, you ensure that the overlapping pieces effectively shed water downward. If you were to install the top piece first, water would flow behind the lower pieces, defeating the purpose of the trim entirely.

Step 3: Managing the Corner Overlaps

At the corners, you must perform a miter cut to ensure the pieces fit flush. For a professional finish, notch the upper piece so it overlaps the lower piece. This technique ensures that water cascades over the joint rather than being channeled into it. Many contractors use a small amount of exterior-grade sealant at these intersections as an added layer of protection.

💡 Note: Use a snap-lock punch tool when you need to secure a piece of siding that has been ripped to fit into the J-channel. This tool creates small "teeth" on the cut edge of the siding, allowing it to lock securely into the trim.

Common Mistakes to Avoid

Even experienced DIYers can make errors when installing vinyl trim. Avoiding these pitfalls will save you time and money in the long run:

Over-nailing: Driving nails through the vinyl face instead of the pre-slotted holes. This prevents movement and leads to cracking.
Ignoring Thermal Expansion: Forgetting to leave a quarter-inch gap at the end of the trim runs inside window sills.
Poor Drainage: Failing to install "flashing" behind the J-channel to ensure that any moisture that does get past the trim is directed safely away from the house.
Mixing Materials: Using incompatible sealants that might react with the vinyl over time, causing it to become brittle.

Maintenance and Inspection Tips

Once your J Trim is installed, it requires very little maintenance. However, an annual inspection is recommended to ensure that everything remains tight and secure. Check the corners to ensure the sealant hasn't cracked and that no debris has built up inside the channel. If you live in an area with high winds, verify that the siding panels haven't disengaged from the channel. Cleaning the trim with a mild soap and water solution once a year will keep the exterior looking fresh and help you spot any potential issues before they escalate into costly repairs.
