Understanding where to place your floor jack is one of the most fundamental skills for any car owner, whether you are performing a simple tire change or tackling complex suspension repairs. Many DIY enthusiasts dive straight into maintenance without identifying the correct jacking point car manufacturers have designated, which can lead to catastrophic damage to the vehicle's frame, fuel lines, or brake components. Knowing these specific locations not only ensures your safety while working under the vehicle but also preserves the structural integrity of your car's chassis.
Why Identifying the Correct Jacking Point Car is Critical
Modern vehicles are engineered with specific high-strength points designed to support the entire weight of the vehicle. These points are typically reinforced to prevent the metal from bending or crushing when localized pressure is applied. If you attempt to lift a car by placing a jack under a floor pan, plastic trim, or an engine oil pan, you risk permanent damage that can be expensive to repair and may even compromise the vehicle's safety features.
Furthermore, using the wrong location can lead to a jack slip. A slipping jack is a dangerous scenario that could result in the car falling off the lift, potentially causing severe injury to the operator. By strictly adhering to the manual's guidance regarding the jacking point car, you ensure that the load is balanced and stable.
Locating Your Vehicle's Jacking Points
Before you begin, consult your owner’s manual. Most manufacturers include a dedicated section on how to lift the vehicle. However, if the manual is missing, there are standard locations most vehicles utilize. Generally, these points are found near the wheels along the rocker panels, often marked by small indentations, notches, or reinforced metal tabs. For structural lifting, the frame rails or the subframe are often the safest spots to place a jack stand once the car has been lifted.
Consider the following types of common lift points:
- Pinch Welds: These are the most common points, found along the bottom edge of the rocker panel. They look like a protruding vertical metal seam.
- Subframe Mounts: These are solid, structural points where the suspension connects to the chassis.
- Differential/Axle Points: On some rear-wheel-drive vehicles, the center of the rear differential is a valid jacking point, though you must exercise caution.
| Component | Safety Level | Recommendation |
|---|---|---|
| Pinch Weld | High | Use a slotted rubber pad to prevent bending. |
| Floor Pan | Zero | Never lift here; it will crush the metal. |
| Subframe | High | Excellent for placing jack stands. |
| Oil Pan | Zero | Will cause engine damage and leakage. |
⚠️ Note: Always use jack stands once the vehicle is lifted. A floor jack is designed to lift the vehicle, not to support its weight over an extended period.
Step-by-Step Guide to Lifting Your Vehicle Safely
Once you have identified the appropriate jacking point car, follow these steps to ensure a safe operation:
- Find a Flat Surface: Always work on level, hard ground like concrete or asphalt. Never lift a car on grass, dirt, or an incline.
- Secure the Wheels: Use wheel chocks on the tires opposite to the ones you are lifting to prevent the car from rolling.

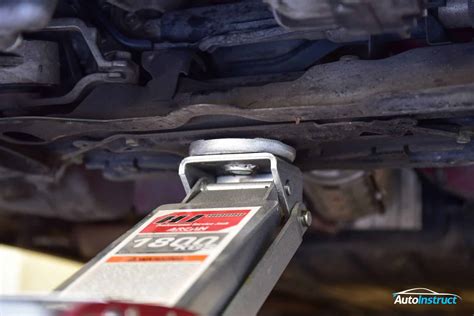

- Position the Jack: Slide the jack under the identified point. Ensure the saddle of the jack is centered correctly on the reinforcement tab.
- Lift Slowly: Operate the jack handle slowly. Keep your body away from under the vehicle during this process.

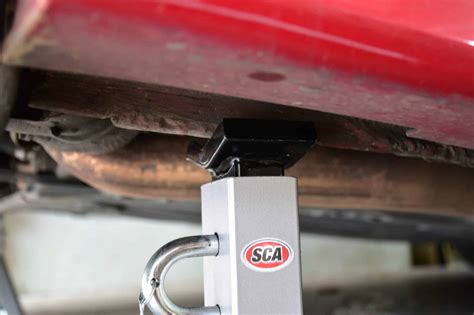

- Insert Jack Stands: Once at the desired height, slide the jack stands under the vehicle’s frame rails or subframe and lower the car onto them carefully.
💡 Note: If your car has plastic aerodynamic panels covering the bottom, you may need to remove them or find the specific access points designated by the manufacturer before you can reach the structural frame.
Common Mistakes to Avoid
Even seasoned mechanics can occasionally overlook safety protocols. One of the most frequent errors is relying solely on the emergency scissor jack that comes with the spare tire for long-term repairs. These jacks are intended for emergency tire changes on the side of the road and are not suitable for ongoing mechanical work. Additionally, never place your jack on a rusted or corroded section of the frame, as the metal may not be strong enough to hold the vehicle's weight, leading to a structural failure.
Always inspect your jacking point car area for excessive rust before lifting. If the metal flakes away or feels soft, do not attempt to lift the vehicle from that spot; instead, seek a professional garage with a frame-contact hoist.
Final Thoughts on Safe Lifting Practices
Mastering the identification of a safe jacking point car location is an essential part of responsible vehicle ownership. By respecting the structural design of your automobile and utilizing the correct equipment—such as quality floor jacks, wheel chocks, and jack stands—you significantly reduce the risk of accidents. Always prioritize a flat, stable workspace and never rush the setup process. Taking an extra five minutes to ensure the jack is correctly seated can save you from thousands of dollars in frame damage and keep you safe while you maintain your car’s performance. Remember that consistency and caution are the keys to a successful and injury-free DIY experience.
