The human heart is a marvel of biological engineering, relying on a complex electrical conduction system to maintain a steady, life-sustaining beat. Normally, the sinoatrial (SA) node acts as the primary pacemaker, setting the rhythm for the entire cardiac cycle. However, when the SA node fails to initiate an impulse or when the electrical conduction path is blocked, the heart’s secondary pacemaker centers—specifically the atrioventricular (AV) junction—take over. This leads to a unique electrical pattern known as a junctional rhythm. Understanding the Junctional Rhythm Rate is essential for medical professionals and students alike, as it provides critical insights into the heart's compensatory mechanisms and underlying health status.
What Exactly is a Junctional Rhythm?
A junctional rhythm occurs when the AV junction, which includes the AV node and the bundle of His, becomes the primary pacemaker of the heart. Because this region is located lower in the heart than the SA node, the electrical signal must travel upward toward the atria and downward toward the ventricles. This often results in absent, inverted, or retrograde P-waves on an electrocardiogram (ECG).
The Junctional Rhythm Rate is typically slower than the standard sinus rhythm. While a normal heart rate is defined between 60 and 100 beats per minute, the AV junction has its own inherent firing frequency. This natural escape mechanism ensures that if the primary pacemaker fails, the heart does not simply stop, providing a vital safety net for the body.
Classifying the Junctional Rhythm Rate
Not all junctional rhythms are identical. The rate of the rhythm is the primary metric used by cardiologists to classify these impulses. Depending on the frequency of the beats, a junctional rhythm may be categorized as follows:
- Junctional Escape Rhythm: This occurs when the SA node fails to fire. The rate is typically 40 to 60 beats per minute. It is considered a protective mechanism.

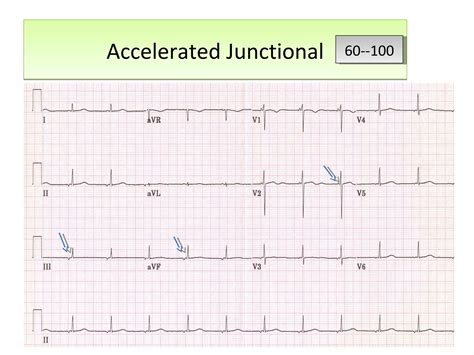

- Accelerated Junctional Rhythm: This occurs when the AV junction fires faster than its intrinsic rate, usually between 60 and 100 beats per minute. It is often associated with digitalis toxicity or myocardial infarction.
- Junctional Tachycardia: This is defined by a rate exceeding 100 beats per minute. This is often pathological and may require medical intervention to stabilize the patient.
| Rhythm Type | Expected Rate (BPM) | Clinical Significance |
|---|---|---|
| Junctional Escape | 40–60 | Safety mechanism for sinus failure |
| Accelerated Junctional | 60–100 | Often linked to medication toxicity |
| Junctional Tachycardia | >100 | Requires clinical evaluation |
Identifying Junctional Rhythms on an ECG
To accurately identify the Junctional Rhythm Rate on an ECG strip, clinicians must look for specific wave morphology. Because the impulse originates in the AV junction, the depolarization of the atria and ventricles happens simultaneously or in an unconventional order. Key indicators include:
- Absence of P-waves: Since the impulse travels through the atria in a retrograde fashion, the P-waves may be buried within the QRS complex.
- Inverted P-waves: If P-waves are visible, they will often appear inverted (negative) in leads II, III, and aVF.
- Narrow QRS complex: Because the electrical signal enters the ventricles through the normal conduction pathways (the Bundle of His and Purkinje fibers), the QRS complex usually remains narrow and well-defined.
⚠️ Note: Always correlate ECG findings with the patient's physical symptoms. A slow junctional rhythm may be asymptomatic in some, while causing dizziness or syncope in others.
Causes and Clinical Triggers
The transition to a junctional pacemaker is rarely a primary disease itself; rather, it is usually a sign of an underlying issue. Common causes that can influence the Junctional Rhythm Rate include:
- SA Node Dysfunction: Sick sinus syndrome or degenerative heart disease.
- Medication Effects: Certain drugs, such as beta-blockers, calcium channel blockers, and especially digoxin, can suppress the SA node and allow the junctional focus to take over.
- Myocardial Ischemia: Damage to the area around the SA node or AV junction due to a heart attack can alter electrical conduction.
- Electrolyte Imbalances: Abnormal levels of potassium or magnesium can significantly impact the heart's intrinsic rhythmicity.
Management and Therapeutic Considerations
Management of a junctional rhythm depends entirely on the rate and the patient’s hemodynamic stability. If the Junctional Rhythm Rate is within a normal range (e.g., 50-60 bpm) and the patient is asymptomatic, medical professionals often adopt a "watch and wait" approach. The primary goal is to identify and treat the underlying cause of the SA node suppression.
However, if the rhythm is bradycardic (too slow) and causing symptoms like hypotension, confusion, or shortness of breath, interventions may include:
- Atropine administration: Used to temporarily increase the heart rate by blocking parasympathetic nervous system input.
- Discontinuation of offending drugs: If digoxin or other nodal-blocking agents are identified as the cause.
- Permanent Pacemaker: In cases of chronic, symptomatic junctional rhythms caused by permanent SA node failure, a permanent pacemaker may be implanted.
ℹ️ Note: If a patient presents with a junctional tachycardia, clinicians must carefully differentiate it from other types of supraventricular tachycardia to avoid improper treatment.
Diagnostic Challenges
Distinguishing a junctional rhythm from other heart rhythms can be difficult in a clinical setting. For instance, a junctional escape rhythm can mimic certain types of AV blocks. The key differentiator is the P-wave relationship. In a third-degree AV block, the atria and ventricles beat independently. In a junctional rhythm, the atrial activation is tied to the junctional focus, even if the P-wave is inverted or hidden.
Advanced diagnostic tools, such as continuous Holter monitoring or an electrophysiology study, may be necessary if the exact origin of the arrhythmia remains unclear. Understanding the Junctional Rhythm Rate allows the medical team to determine whether the rhythm is a protective escape or a primary tachyarrhythmia, which dictates the choice between monitoring or active intervention.
In summary, the heart’s ability to switch to a junctional rhythm is a sophisticated biological contingency plan designed to maintain perfusion when the primary pacemaker falters. By recognizing the patterns associated with the junctional rhythm rate, healthcare providers can effectively categorize the severity of the conduction disturbance. Whether it presents as a slow escape rhythm or a fast, pathological tachycardia, the heart’s electrical activity serves as a vital clue to the underlying health of the cardiovascular system. Proper identification through ECG analysis, combined with a comprehensive review of the patient’s medications and clinical history, remains the gold standard for managing these complex rhythm disturbances and ensuring optimal patient outcomes.
