The Chevrolet small-block engine remains a legendary platform for enthusiasts, and the L31 Vortec is widely considered the pinnacle of factory production performance for this architecture. Originally found in trucks and SUVs from 1996 to 2002, the L31 5.7-liter engine features high-flowing cylinder heads that respond exceptionally well to modifications. However, the factory camshaft profile was designed primarily for low-end torque and towing efficiency, leaving significant untapped power on the table. Choosing the right L31 Vortec Cam 5.7 upgrade is the most effective way to wake up this engine and transform your vehicle into a high-performance machine.
Understanding the L31 Vortec Platform

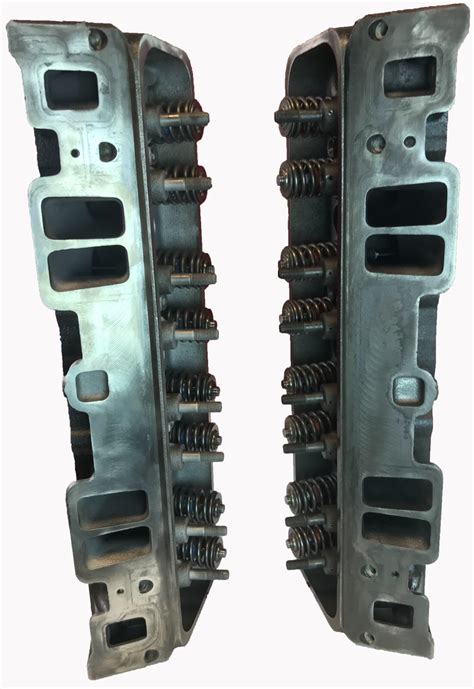

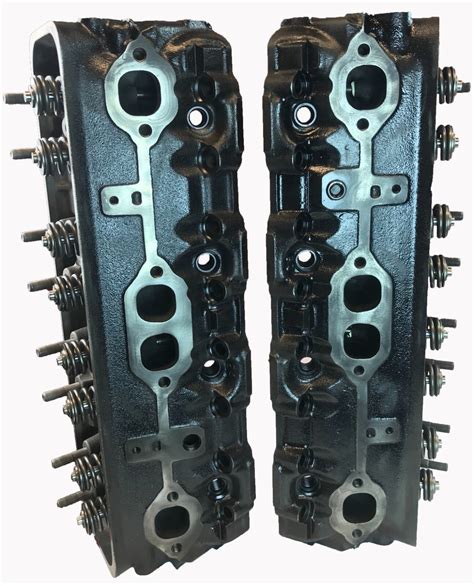

Before selecting a new camshaft, it is crucial to understand the limitations of the stock L31 valvetrain. The factory Vortec heads are excellent, but they have a specific limitation regarding valve lift. Because of the factory valve seal and retainer design, the stock setup is typically limited to about .450” to .470” of lift before the retainer hits the seal or the valve spring reaches coil bind. When upgrading your L31 Vortec Cam 5.7, you must ensure your valvetrain can support the increased lift and duration to avoid catastrophic engine damage.
Factors for Selecting Your Camshaft
When searching for the best L31 Vortec Cam 5.7, your choice should be dictated by how you plan to use the vehicle. A daily-driven truck requires a different profile than a weekend drag strip warrior. Consider the following factors:
- Power Band: Determine if you want more low-end grunt for towing or high-RPM horsepower for racing.
- Drivability: A more aggressive cam will have a rougher idle and may require tuning or a higher stall torque converter.
- Valvetrain Compatibility: Ensure your springs, retainers, and pushrods are upgraded to match the lift and duration of the new camshaft.
- Computer Tuning: The factory ECU (Black Box or 0411 PCM) will likely require custom tuning to accommodate a more aggressive camshaft profile to maintain proper idle and air-fuel ratios.
Comparison of Camshaft Upgrades
The table below provides a general overview of how different cam types affect the performance characteristics of an L31 5.7L engine:
| Cam Type | Power Focus | Idle Quality | Required Mods |
|---|---|---|---|
| Mild/Torque Cam | Low to Mid Range | Near Stock | Basic Valve Springs |
| Street/Strip Cam | Mid to High Range | Slightly Lopey | Springs, Retainers, Tune |
| Aggressive Race Cam | High RPM | Very Lopey | Full Valvetrain, Converter, Stall |
⚠️ Note: Always measure your specific piston-to-valve clearance when installing an aftermarket camshaft, especially if you are using aftermarket heads or milled factory heads to increase compression.
Installation Best Practices
Replacing the camshaft on a Vortec 5.7L requires patience and precision. Since these engines are typically installed in vehicles with limited front-end clearance, most enthusiasts choose to either pull the engine or remove the radiator and grille assembly to gain the necessary room. When you upgrade your L31 Vortec Cam 5.7, it is an ideal time to perform a few other critical maintenance tasks:
- Timing Chain: Never reuse the old timing chain. Upgrade to a double-roller timing set for better durability.
- Valve Springs: Replace the factory springs with beehive or dual springs specifically rated for your new cam’s lift.
- Lifters: Always install new hydraulic roller lifters with a new camshaft to prevent premature lobe wear.
- Gaskets: Use a high-quality timing cover gasket set and consider installing a new front main seal while the cover is off.
The Importance of Tuning
Installing an L31 Vortec Cam 5.7 changes the volumetric efficiency of your engine. The factory speed-density tune will no longer be optimized for the new airflow characteristics. If you fail to update the ECU, the engine may run rich, suffer from poor idle, or fail to produce the expected power gains. Whether you use a handheld tuner or professional dyno tuning software, adjusting the fuel maps, timing advance, and idle speed settings is mandatory for a successful build.
💡 Note: Many L31 owners swap to the 0411 PCM from a 2001-2002 van, as it offers much better tuning capabilities and wider availability of software support compared to the earlier 1996-2000 "Black Box" computers.
Final Thoughts on the Upgrade
Upgrading the camshaft in an L31 Vortec 5.7 is one of the most rewarding modifications an owner can undertake. By carefully selecting a profile that matches your vehicle’s purpose and ensuring that the supporting components—specifically the valve springs and ECU calibration—are correctly addressed, you can unlock a significant increase in both horsepower and torque. Whether you are aiming for a reliable street performer or a dedicated track vehicle, the L31 remains a powerhouse that, with the right cam, will continue to impress for years to come. Take your time during the installation, double-check your clearances, and enjoy the substantial performance gains that come with a properly executed engine build.
