Lead Precordial

When performing a 12-lead electrocardiogram (ECG), understanding the specific placement and function of the lead precordial electrodes is fundamental for accurate cardiac diagnostics. These electrodes, often referred to as chest leads, are critical for capturing the electrical activity of the heart from the horizontal plane. By strategically placing these sensors on the anterior chest wall, clinicians can gain a detailed view of the heart’s chambers, allowing for the detection of myocardial infarctions, arrhythmias, and other structural abnormalities that might not be visible from limb leads alone.

Table of Contents

Understanding the Role of Precordial Leads in ECG

The lead precordial system consists of six specific electrodes, labeled V1 through V6. These leads provide a "short-axis" or horizontal view of the heart. While limb leads (I, II, III, aVR, aVL, and aVF) look at the heart in the frontal plane, the precordial leads act like a camera lens moving across the chest, capturing electrical impulses as they travel toward or away from the specific electrode site. This spatial resolution is vital for localizing myocardial damage, particularly in the anterior, septal, and lateral walls of the left ventricle.

The clinical importance of these leads cannot be overstated. For instance, ST-segment elevation in specific precordial leads can help healthcare professionals pinpoint which coronary artery is likely occluded. Without precise placement, the ECG data can become misleading, leading to potential diagnostic errors. Proper anatomical landmarks must be identified to ensure consistent and reproducible results every time an ECG is performed.

Anatomical Landmarks for Electrode Placement

Accuracy in the lead precordial configuration depends entirely on identifying the correct intercostal spaces and midpoints on the chest. Any deviation can result in artifact-heavy readings or shifts in the electrical axis that do not reflect the patient's true cardiac status.

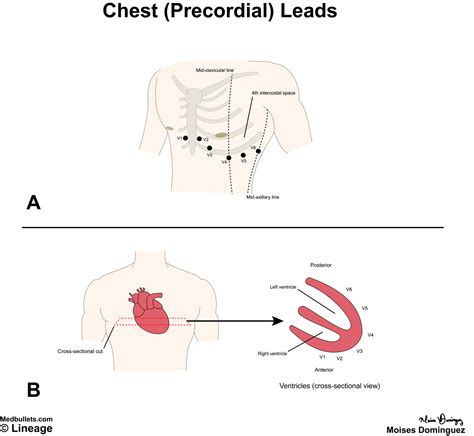

Below are the standard anatomical placements for the six precordial leads:

V1: Placed in the 4th intercostal space at the right sternal border.
V2: Placed in the 4th intercostal space at the left sternal border.
V3: Placed midway between V2 and V4.
V4: Placed in the 5th intercostal space at the midclavicular line.
V5: Placed horizontally level with V4, at the anterior axillary line.
V6: Placed horizontally level with V4 and V5, at the midaxillary line.

Using these landmarks ensures that each lead precordial sensor is positioned to monitor the specific area of the heart intended, maintaining consistency for monitoring changes over time.

Quick Reference Table for Lead Placement

Lead	Anatomical Location	Heart Area Observed
V1	4th ICS, Right Sternal Border	Septal
V2	4th ICS, Left Sternal Border	Septal
V3	Midpoint between V2 and V4	Anterior
V4	5th ICS, Midclavicular Line	Anterior
V5	Anterior Axillary Line (level with V4)	Lateral
V6	Midaxillary Line (level with V4)	Lateral

⚠️ Note: Always palpate the sternal notch and count the ribs carefully to identify the intercostal spaces. Avoid relying solely on visual estimation, as body habitus can vary significantly between patients.

Technical Considerations and Common Challenges

Even when landmarks are identified correctly, several technical factors can influence the quality of the lead precordial trace. Skin preparation is the most overlooked step in the process. Oil, sweat, or hair on the chest can significantly increase skin-electrode impedance, leading to "wandering baseline" or signal interference. Cleaning the skin with alcohol and, if necessary, shaving excess hair can improve the fidelity of the ECG signal drastically.

Another challenge involves patient movement and electrode adhesion. Because these leads are placed on a curved surface, electrodes may lose contact if they are not applied firmly or if the adhesive is of poor quality. Furthermore, ensuring that the cables are not pulling on the electrodes is essential to prevent motion artifacts, which can mimic the appearance of complex arrhythmias.

Also read: Laser Hair Removal Pubic Area

Clinical Interpretation and Diagnostic Utility

The progression of the R-wave across the lead precordial range is a classic indicator of cardiac health. In a normal heart, the R-wave amplitude typically increases from V1 to V4, a process known as R-wave progression. Poor R-wave progression can be an early sign of an old anterior myocardial infarction or other underlying pathologies. Similarly, sudden changes in the T-wave or ST-segment within these leads often serve as the primary warning signs for ischemia.

Advanced diagnostic techniques sometimes utilize additional leads (such as V7, V8, or V9) placed on the patient's back to detect posterior wall infarctions that the standard 12-lead might miss. However, the standard six precordial leads remain the bedrock of non-invasive cardiac evaluation, providing the necessary data for rapid clinical decision-making in emergency settings.

💡 Note: When working with female patients, the lead precordial electrodes V4, V5, and V6 should be placed underneath the breast tissue whenever possible to ensure they are on the chest wall rather than the breast tissue itself, which can dampen the signal.

Optimizing Results for Accurate Monitoring

Maintaining the integrity of the ECG monitoring process involves regular equipment checks and staff training. Digital ECG machines often provide automated interpretations, but these should never replace a clinician's trained eye. Understanding the placement of the lead precordial sensors allows the technician to troubleshoot poor signal quality effectively. If a signal looks "noisy" or inconsistent, the first step should always be to inspect the electrode contact and the cable connections.
