Leaf Spring Suspension

When you look beneath the chassis of a heavy-duty truck, a trailer, or a classic off-road vehicle, you will often find a traditional yet remarkably resilient system known as the Leaf Spring Suspension. Despite the rapid advancement of air suspension and independent coil-over systems, this time-tested technology remains the gold standard for hauling massive payloads and navigating punishing terrain. Understanding how these metal arcs function—and why they persist in modern automotive design—is essential for any vehicle owner or fleet manager looking to balance performance, durability, and cost-effectiveness.

Table of Contents

The Mechanics of Leaf Spring Suspension

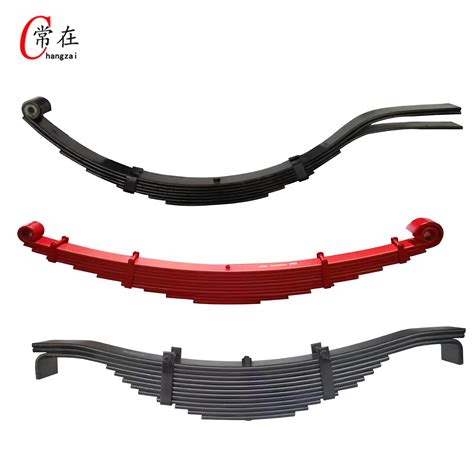

Heavy duty truck leaf springs

At its core, a Leaf Spring Suspension consists of several strips of flexible steel, known as "leaves," which are stacked on top of one another in order of length. These layers are bound together by a center bolt and held in place by clips that prevent the leaves from sliding out of alignment. The entire assembly is attached to the vehicle frame at one end and to a pivoting shackle at the other.

Also read: Cooper Discoverer Road+Trail At

The system works through the principle of elastic deformation. When a vehicle hits a bump or carries a heavy load, the arc of the leaves flattens, absorbing the energy of the impact. As the force is dissipated, the spring naturally wants to return to its original arched shape. Because the leaves are held together by friction, they provide an inherent dampening effect, which helps to control the rebound of the chassis without relying solely on the shock absorbers.

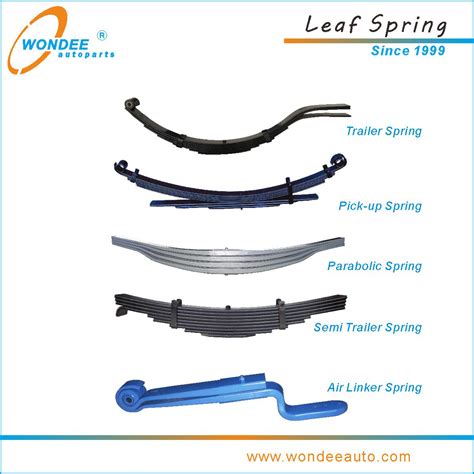

Types of Leaf Spring Configurations

Not all suspension setups are identical. Depending on the vehicle's specific application, manufacturers utilize different configurations to achieve varying results in ride quality and load capacity:

Semi-Elliptical: The most common type, featuring a simple arc shape that is highly durable and easy to maintain.
Quarter-Elliptical: Often found in older vehicles, where one end is fixed to the frame and the other is left to support the axle.
Elliptical: Rare in modern cars, these are essentially two semi-elliptical springs joined together at the ends.
Multi-Leaf vs. Mono-Leaf: Multi-leaf springs offer higher weight capacity, while mono-leaf springs provide a softer, more flexible ride for lighter applications.

Comparing Suspension Technologies

To understand why a Leaf Spring Suspension is chosen over other systems, it helps to view how they stack up against modern alternatives in terms of practicality and function.

Feature	Leaf Spring Suspension	Coil Spring Suspension	Air Suspension
Load Carrying	Excellent	Moderate	Adjustable
Durability	Very High	Moderate	Low (Complex)
Ride Quality	Stiff	Comfortable	Superior
Cost	Economical	Moderate	High

Advantages of Choosing Leaf Springs

The longevity of this suspension type is not an accident. Fleet operators and off-road enthusiasts continue to prioritize Leaf Spring Suspension for several key reasons:

Superior Load Distribution: Because the springs are connected directly to the frame at multiple points, they distribute the weight of the cargo across a wider surface area of the chassis.
Simplicity of Maintenance: With no complex pumps, bags, or sensors to fail, these systems are easily serviced by any qualified mechanic.
Structural Integrity: The springs themselves act as a structural member, often negating the need for complex control arms or trailing links, which reduces the overall weight of the vehicle's undercarriage.
Cost-Effectiveness: When maintenance is required, the components are generally much cheaper to source and install compared to modern electronic air systems.

Maintenance Tips for Optimal Longevity

While known for their "fit and forget" nature, taking care of your suspension system ensures it performs well for hundreds of thousands of miles. Keeping the leaves clean and free of excessive debris helps prevent premature friction-related wear. Applying a light lubricant designed for spring packs can also prevent the metal-on-metal squeaking that often plagues older rigs. Always ensure that the U-bolts securing the spring pack to the axle are torqued to the manufacturer's specifications; if they are too loose, the individual leaves will shift, leading to cracks and reduced spring rate.

Troubleshooting Common Suspension Issues

Drivers often notice symptoms that suggest their suspension system is nearing the end of its life cycle. One of the most common indicators is "sagging," where the vehicle sits noticeably lower on one side or appears "bottom-heavy" even when empty. Another sign is a harsh, jarring ride that transfers every minor road imperfection directly into the cabin. In many cases, these issues are not caused by the springs losing their spring rate, but rather by the bushings at the shackle ends becoming worn or perished. Replacing these rubber or polyurethane bushings can often rejuvenate the ride quality of an older vehicle without the need for a full spring pack overhaul.

In summary, the Leaf Spring Suspension remains a pillar of heavy-duty automotive engineering for its unmatched durability and load-bearing capabilities. While it may not offer the plush, computer-controlled comfort of high-end luxury air systems, its reliable performance in demanding environments makes it indispensable. By understanding how the system functions and adhering to a consistent maintenance schedule, you ensure that your vehicle remains capable of tackling the toughest tasks for years to come. Whether you are hauling building materials or traversing rugged backcountry trails, this classic design provides the strength and stability required to get the job done right.
