Understanding phase diagrams is a cornerstone of materials science and metallurgical engineering. Among the various analytical tools available, the Lever Rule stands out as a fundamental mathematical concept used to determine the mass fraction of phases in a two-phase system. Whether you are dealing with binary alloy systems, ceramic compositions, or polymer blends, this simple yet powerful calculation allows engineers to predict the microstructural constitution of materials under equilibrium conditions. Mastering this concept is essential for anyone looking to optimize material properties through heat treatment or alloy design.
What is the Lever Rule?

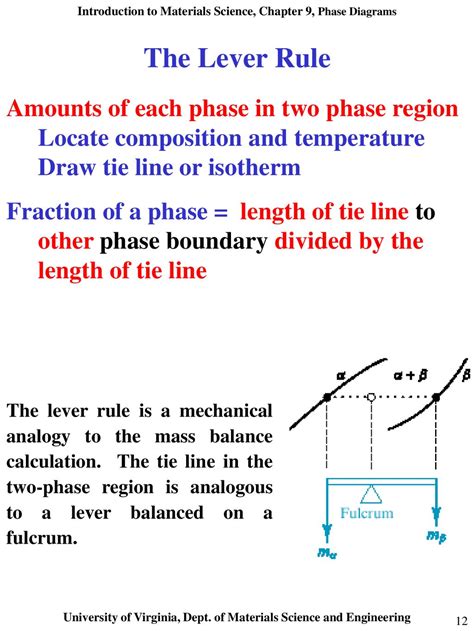

The Lever Rule is a technique used in binary phase diagrams to calculate the relative amounts of each phase present at a specific temperature and composition. Imagine a seesaw balanced on a fulcrum; the balance point represents the overall composition of the alloy, while the ends of the seesaw represent the compositions of the two individual phases present at that temperature. The principle suggests that the amount of each phase is inversely proportional to the "lever arm" distance from the overall composition to the phase boundary.
To use the rule effectively, you must identify the tie line—a horizontal line drawn through the two-phase region at a specific temperature. The intersection of this line with the phase boundaries provides the composition of the solid and liquid phases (or two solid phases) coexisting in equilibrium.
The Mathematical Formula
The calculation is relatively straightforward, relying on the conservation of mass. If we consider a binary system with components A and B, where the overall composition is C0, the composition of phase α is Cα, and the composition of phase β is Cβ, the mass fractions W are calculated as follows:
- Weight fraction of phase α: Wα = (Cβ - C0) / (Cβ - Cα)
- Weight fraction of phase β: Wβ = (C0 - Cα) / (Cβ - Cα)
This formula ensures that the sum of the fractions equals one (100% of the material). By visually inspecting the phase diagram, you can quickly estimate the distribution of phases by observing how close the global composition is to either end of the tie line.
Application in Binary Phase Diagrams

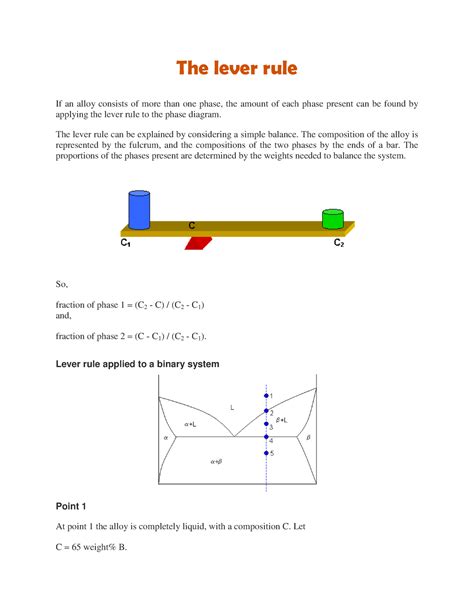

When analyzing a binary phase diagram, such as the Copper-Nickel (Cu-Ni) system, the Lever Rule becomes an indispensable diagnostic tool. Below is a representation of how different phases might look in a typical calculation scenario:
| Phase | Composition Formula | Physical Meaning |
|---|---|---|
| Alpha (α) | (Cβ - C0) / (Cβ - Cα) | Proportion of the solid phase |
| Beta (β) | (C0 - Cα) / (Cβ - Cα) | Proportion of the liquid/solid phase |
⚠️ Note: Always ensure your composition units (weight percent vs. atomic percent) are consistent throughout your entire calculation to avoid significant errors in your final phase fraction results.
Step-by-Step Implementation
To successfully apply the Lever Rule to a real-world material problem, follow these methodical steps to ensure accuracy:
- Locate the Point: Identify the point on the phase diagram corresponding to the given temperature and total alloy composition.
- Draw the Tie Line: Construct a horizontal isothermal line that spans the two-phase region, connecting the two phase boundaries.
- Read Compositions: Determine the compositions Cα and Cβ at the ends of the tie line where it intersects the boundary curves.
- Apply the Formula: Plug your values into the Lever Rule equations, ensuring the total composition C0 is placed correctly in the numerator.
- Verify Results: Ensure the sum of the resulting fractions equals 1.0.
By following these steps, you can accurately predict how much of a particular microstructure exists within an alloy, which directly correlates to the mechanical strength, ductility, and conductivity of the final product.
Why Phase Fractions Matter

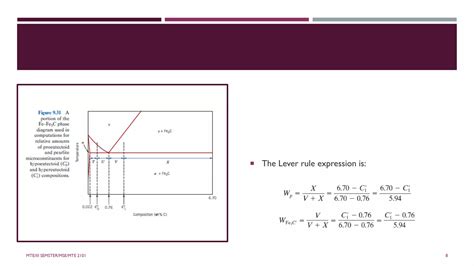

The importance of calculating phase fractions extends beyond mere academic interest. In industrial casting and welding, the ratio of solid to liquid phases dictates the cooling rate requirements to avoid defects like porosity or cracking. For instance, in steel manufacturing, knowing the exact amount of austenite versus ferrite at a specific temperature determines the final hardness after quenching. The Lever Rule provides the theoretical baseline needed to manipulate these properties through controlled cooling paths.
Furthermore, in advanced manufacturing processes such as additive manufacturing, the Lever Rule helps engineers understand the solidification behavior of complex metal powders. By predicting the amount of secondary phases that precipitate during solidification, engineers can prevent brittleness and improve the fatigue life of high-performance components used in aerospace and automotive sectors.
💡 Note: The Lever Rule is strictly applicable only under equilibrium cooling conditions; rapid quenching often shifts phase boundaries and results in non-equilibrium structures where this rule may not be fully accurate.
Common Pitfalls and How to Avoid Them
Even experienced materials scientists can occasionally stumble when applying this rule. A frequent mistake is misidentifying the tie line, particularly in regions where the phase boundaries are very steep. Another common error is mixing up the numerator components in the fractional equations.
- Units Misalignment: Ensure you are not comparing weight percentage (wt%) with atomic percentage (at%) in the same equation.
- Wrong Phase Side: A common mnemonic is to remember that the fraction of a phase is the length of the lever arm opposite to that phase's side.
- Ignoring Temperature Shifts: Remember that phase boundaries shift with temperature; never use a tie line from a different isotherm.
By maintaining awareness of these potential errors, you will gain confidence in your metallurgical assessments and ensure that your microstructural predictions remain robust and reliable during the design process.
Final Thoughts
The Lever Rule remains a vital component of materials science because it simplifies the complex reality of phase transformations into a manageable, predictable mathematical framework. By quantifying the weight fractions of distinct phases within an alloy, engineers can make informed decisions about processing parameters, leading to stronger, more reliable materials. Whether you are a student learning the fundamentals of metallurgy or an engineer optimizing a high-tech alloy, internalizing this rule provides a solid foundation for understanding how temperature and composition collaborate to define the physical world. Consistency, careful reading of diagrams, and an adherence to mass balance principles will ensure that your use of this tool yields precise and actionable data for any material project you undertake.
