Understanding the molecular geometry and electron distribution of chemical compounds is a fundamental skill in chemistry, and one of the most common tasks students encounter is drawing the Lewis Dot Structure for PH3 (phosphine). Phosphine is a colorless, flammable, and highly toxic gas that plays a significant role in organic synthesis and the semiconductor industry. To visualize how the atoms in this molecule are held together, we must look at the arrangement of valence electrons surrounding the phosphorus and hydrogen atoms. By following a structured approach to mapping these electrons, you can easily determine the stability and shape of the PH3 molecule.
Understanding Valence Electrons in PH3
Before diving into the drawing process, it is essential to calculate the total number of valence electrons available in the molecule. This provides the "currency" we have to work with when distributing electrons around the central atom and the surrounding atoms.
- Phosphorus (P): Located in Group 15 of the periodic table, phosphorus has 5 valence electrons.
- Hydrogen (H): Located in Group 1, each hydrogen atom contributes 1 valence electron. Since there are three hydrogen atoms, they contribute a total of 3 valence electrons.
- Total Valence Electrons: 5 (from P) + 3 (from H) = 8 valence electrons.
This total of 8 electrons must be accounted for in our final Lewis Dot Structure for PH3. Remember that phosphorus will act as the central atom because it is less electronegative than hydrogen in the context of bond formation, and it has the capacity to form three single bonds.
Step-by-Step Drawing Process
To construct the structure accurately, follow these systematic steps:

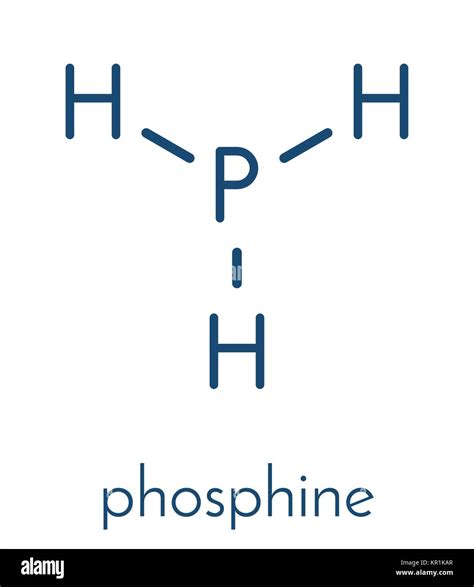

- Identify the central atom: Phosphorus is the central atom, with the three hydrogen atoms arranged around it.
- Draw single bonds: Create a single covalent bond between the central phosphorus atom and each of the three hydrogen atoms. Each bond represents 2 electrons. Since there are 3 bonds, we have used 3 × 2 = 6 valence electrons.
- Place remaining electrons: We have 8 total valence electrons and have used 6 for the bonds. This leaves us with 2 remaining electrons. These must be placed as a lone pair on the phosphorus atom to fulfill its octet requirement.
⚠️ Note: Always verify that the central atom follows the octet rule; in PH3, phosphorus has 8 electrons in its valence shell (6 from bonds and 2 from the lone pair).
Molecular Geometry and Bonding Characteristics
Once you have drawn the Lewis Dot Structure for PH3, you can predict its geometry using VSEPR theory (Valence Shell Electron Pair Repulsion). Even though the molecule has four electron domains (three bonding pairs and one lone pair), the lone pair exerts a stronger repulsive force than the bonding pairs.
The following table summarizes the key properties of the PH3 molecule:
| Property | Value/Description |
|---|---|
| Central Atom | Phosphorus (P) |
| Total Valence Electrons | 8 |
| Bonding Pairs | 3 |
| Lone Pairs | 1 |
| Molecular Geometry | Trigonal Pyramidal |
| Bond Angle | Approximately 93.5 degrees |
Why the Lone Pair Matters
The presence of the lone pair on the phosphorus atom is the reason why PH3 is not a perfect tetrahedral shape. In a tetrahedral molecule like methane (CH4), the bond angles are 109.5 degrees. However, in phosphine, the lone pair pushes the three P-H bonds closer together, significantly reducing the bond angle. This lone pair is also responsible for the basicity of phosphine; although it is a weak base compared to ammonia (NH3), the lone pair can technically be donated to an acid, forming a phosphonium ion (PH4+).
Common Challenges in Mapping Electron Structures
Students often confuse PH3 with NH3 because they belong to the same group in the periodic table. While they share similar Lewis structures—both having three bonds and one lone pair—their physical behaviors differ due to the size of the central atom. Phosphorus is larger than nitrogen, and its valence electrons are held less tightly, which influences the bond length and the polarity of the molecule. Understanding the Lewis Dot Structure for PH3 is the first step in recognizing these subtle chemical differences.
💡 Note: Do not confuse the molecular geometry (Trigonal Pyramidal) with electron geometry (Tetrahedral); the former describes the position of the atoms, while the latter describes the position of all electron domains.
The Impact of Hybridization
The electronic arrangement in PH3 suggests the involvement of p-orbitals in bonding. Unlike ammonia, where sp3 hybridization is often cited, the bond angles in phosphine (very close to 90 degrees) suggest that the phosphorus atom uses mostly its unhybridized p-orbitals to bond with hydrogen atoms. This is a fascinating aspect of phosphorus chemistry that differentiates it from lighter elements in the periodic table, highlighting the importance of looking beyond just the 2D drawing of the Lewis Dot Structure for PH3 to understand actual molecular behavior.
Final Thoughts on Electronic Distribution
Mastering the Lewis structure of PH3 provides a robust foundation for exploring more complex inorganic molecules. By accurately calculating valence electrons, assigning bonds, and accounting for lone pairs, you gain insight into why molecules behave the way they do in chemical reactions. Whether you are analyzing molecular polarity, predicting reactivity, or studying geometry, the simple act of mapping electrons ensures you have a clear picture of the molecular architecture. Always prioritize the octet rule for the central atom and remain mindful of the repulsive effects that lone pairs have on bond angles, as these factors are crucial for interpreting the physical properties of substances like phosphine.
