Link Seal

In the complex world of industrial piping and infrastructure, maintaining a reliable seal where pipes pass through walls, floors, or casings is paramount. Whether you are dealing with underground utility conduits, water treatment plants, or massive HVAC systems, the integrity of these entry points often dictates the longevity and safety of the entire facility. This is where the Link Seal technology becomes indispensable. By providing a mechanical, hydrostatic seal that is both easy to install and incredibly durable, this system has become the industry standard for sealing annular spaces against water, pressure, and gas.

Understanding the Mechanics of a Link Seal

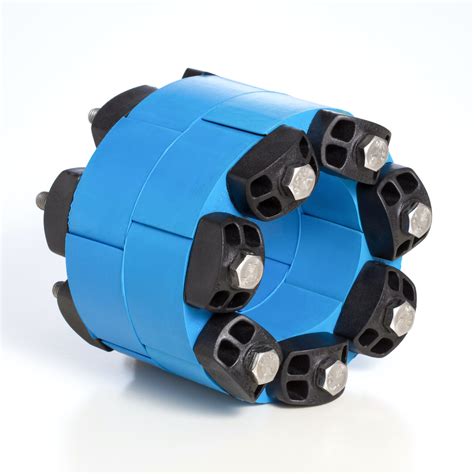

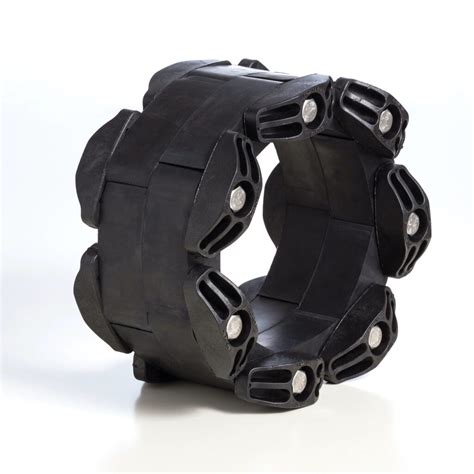

At its core, a Link Seal is a modular mechanical seal consisting of rubber links interconnected with bolts and nuts. When the bolts are tightened, the rubber links expand and compress against the pipe and the wall sleeve, creating a watertight barrier. Unlike traditional methods such as using mortar, mastics, or flammable lead-oakum joints, this system offers a clean, reliable, and removable solution.

The system is specifically engineered to handle the challenges of annular space—the gap between the carrier pipe and the sleeve or cored hole. Because pipes often shift due to thermal expansion, ground settling, or mechanical vibration, a rigid seal is prone to cracking. A Link Seal, however, maintains its compression even under dynamic conditions, ensuring that the seal remains intact throughout the life of the infrastructure.

Why Choose Modular Sealing Systems?

Choosing the right sealing method is not just about keeping water out; it is about protecting your capital investment. When you opt for a high-quality Link Seal, you are selecting a solution that offers several distinct advantages over alternative sealing techniques:

• Hydrostatic Resistance: Capable of withstanding significant pressure, making them ideal for below-grade applications and flood-prone areas.
• Corrosion Protection: By sealing the annular space, you effectively prevent moisture from reaching the exterior of the pipe, significantly slowing down the rusting process.
• Ease of Installation: No specialized tools or extensive training are required, allowing for quick deployment in busy construction environments.
• Flexibility: The modular design allows for customization based on the diameter of the carrier pipe and the wall opening, providing a perfect fit every time.
• Longevity: Made from high-grade synthetic rubbers, these seals are resistant to aging, ozone, and chemical exposure.

Technical Considerations and Selection

Selecting the correct size and material for your Link Seal application is vital for performance. The selection process involves identifying the outside diameter (OD) of the pipe and the inside diameter (ID) of the sleeve or core. Furthermore, environmental factors such as temperature, potential chemical exposure, or electrical isolation requirements must be taken into account when choosing the specific rubber compound (e.g., EPDM, Nitrile, or Silicone).

💡 Note: Always ensure the pipe surface is clean and free of debris before installation to ensure the rubber links can form a complete 360-degree seal against the wall.

Installation Best Practices

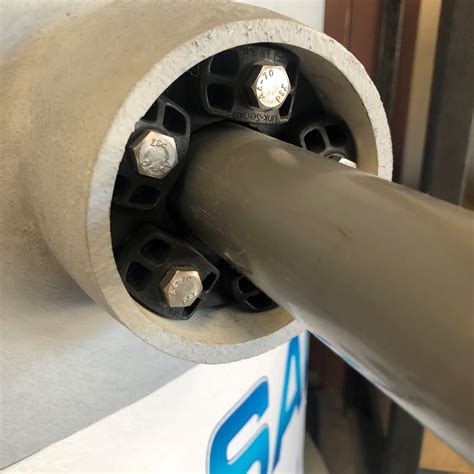

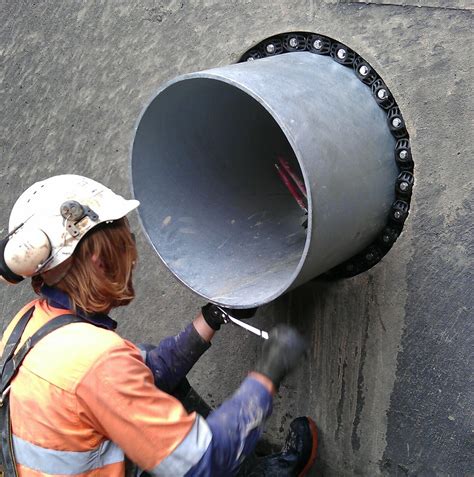

The installation of a Link Seal is a straightforward process, but following the correct sequence is crucial for optimal results. First, center the carrier pipe within the sleeve or core hole. Next, wrap the linked belt of rubber modules around the pipe. Once wrapped, feed the belt into the annular space between the pipe and the sleeve. Finally, tighten the bolts sequentially. As you tighten the bolts, the links expand, compressing the rubber until the seal is secure.

It is important to tighten the bolts in a "star" or alternating pattern to ensure even distribution of pressure around the entire circumference. Over-tightening or uneven tightening can lead to a localized stress concentration, which might compromise the seal's effectiveness over long periods. Periodic inspections should be performed on all exposed seals to verify that bolts remain at the recommended torque settings, especially in facilities subject to high-vibration equipment, such as pump rooms or mechanical plant basements.

💡 Note: Do not use lubricants on the rubber links during installation, as this can cause the seal to migrate or shift under pressure.

Applications Across Various Industries

The versatility of Link Seal systems makes them suitable for an array of sectors. In municipal water and wastewater treatment plants, these seals are critical for preventing groundwater infiltration. In commercial building construction, they are used to seal service pipe penetrations through fire-rated walls and foundation floors, helping to maintain the fire integrity and waterproof envelope of the building. Furthermore, in the petrochemical and power generation industries, the use of specialized Link Seal compounds ensures chemical resistance and electrical isolation, providing a safe and compliant barrier for high-stakes environments.

Final Thoughts

Effective infrastructure management relies on the small, often overlooked components that prevent catastrophic failures. The implementation of a Link Seal is a proactive measure that mitigates the risks of leaks, corrosion, and structural degradation. By understanding the mechanical properties, ensuring correct sizing and material selection, and adhering to standard installation procedures, facility managers and contractors can ensure long-term reliability for their piping systems. This proven technology offers a balance of simplicity, versatility, and industrial-grade protection that remains unmatched in the field of piping penetration sealing. Ultimately, prioritizing these sealing solutions leads to safer, more efficient, and cost-effective operations across the built environment.
