Potassium is an essential mineral and electrolyte that plays a vital role in maintaining the normal electrical activity of the heart. When potassium levels in the blood drop below the normal range, a condition known as hypokalemia, it can significantly disrupt the heart's rhythm and function. One of the most critical diagnostic tools used to assess the impact of this imbalance is the electrocardiogram (ECG). Understanding the relationship between low potassium and ECG changes is crucial for healthcare providers and patients alike, as these patterns serve as early warning signs for potentially life-threatening arrhythmias.
The Role of Potassium in Cardiac Function
To appreciate why low potassium and ECG manifestations are so closely linked, one must first understand how the heart beats. The heart relies on a precise balance of ions—primarily potassium, sodium, and calcium—to generate and transmit electrical impulses. Potassium is largely concentrated inside the cardiac cells, while sodium and calcium are more concentrated outside. This concentration gradient is maintained by ion pumps in the cell membrane.
During a heartbeat, these ions move across the cell membrane, creating an electrical charge that triggers the muscle to contract. When potassium levels are too low, the membrane potential of cardiac cells is altered. This makes the cells more excitable, increasing the likelihood of abnormal electrical signals, or arrhythmias, developing. Because the ECG is a direct recording of the heart’s electrical activity, these ionic shifts are immediately reflected in the waveform patterns.
Recognizing ECG Changes Caused by Hypokalemia
When a physician interprets an ECG in the context of suspected hypokalemia, they look for specific, well-documented changes. While not every patient with low potassium will exhibit all of these signs, certain patterns are highly suggestive of the condition. Recognizing these early is essential for timely intervention.

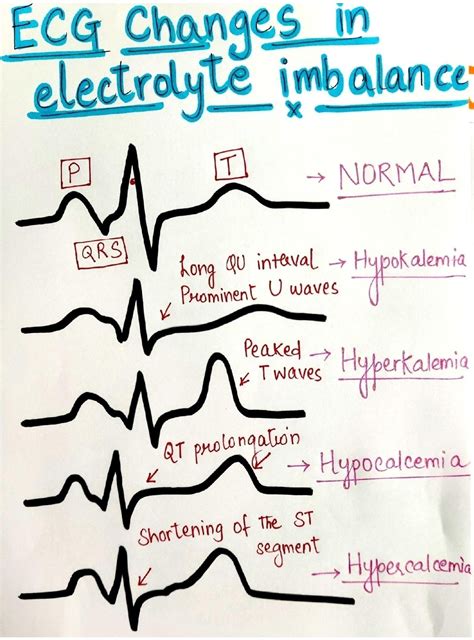

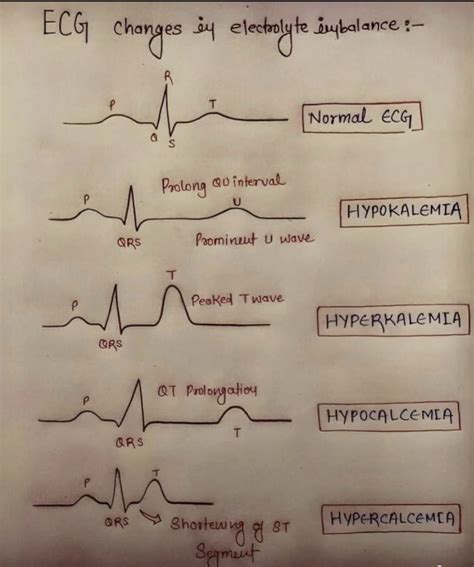

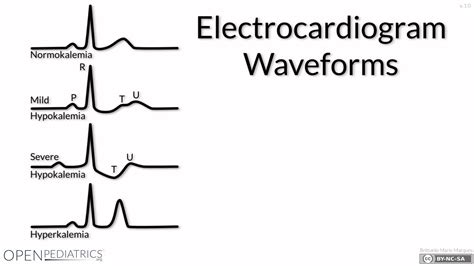

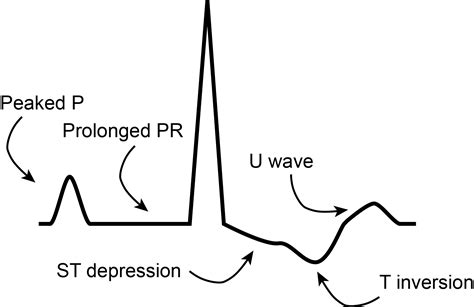

- Flattening or Inversion of the T-wave: The T-wave represents the repolarization (recovery phase) of the heart’s ventricles. As potassium levels decline, the T-wave typically decreases in amplitude, flattens, or may even become inverted.
- ST-segment Depression: The ST-segment, which should ideally be flat along the baseline, often dips downward in patients with hypokalemia.
- Prominent U-waves: Perhaps the most classic sign associated with low potassium is the appearance of a U-wave. This is a small, additional deflection that occurs after the T-wave. While U-waves can sometimes be seen in healthy individuals, they become significantly more prominent and visible when potassium is low.
- Prolonged QT Interval: As a result of T-wave flattening and the emergence of the U-wave, the overall QT interval—which measures the time taken for ventricular depolarization and repolarization—often appears prolonged. This prolongation is significant because it increases the risk of dangerous arrhythmias, such as Torsades de Pointes.
⚠️ Note: ECG changes are not always linear; they do not necessarily correlate perfectly with the absolute severity of serum potassium levels. A patient may show significant ECG changes with only mild hypokalemia, or conversely, show minimal changes despite severely low levels.
Summary of Typical ECG Changes
| ECG Feature | Expected Change in Hypokalemia |
|---|---|
| T-wave | Flattening, decrease in amplitude, or inversion. |
| ST-segment | Downsloping depression. |
| U-wave | Becomes prominent, often merging with the T-wave. |
| QT Interval | Appears prolonged (often due to U-wave fusion). |
| P-wave | May increase in amplitude and width in severe cases. |
Clinical Significance and Risks
The connection between low potassium and ECG abnormalities is not merely academic; it has profound clinical implications. The primary risk of these electrical disturbances is the development of cardiac arrhythmias. Because hypokalemia alters the electrical stability of the cardiac myocytes, it creates an environment where chaotic, rapid, or irregular heart rhythms can easily initiate.
Patients who are also taking medications known to prolong the QT interval, such as certain antiarrhythmic drugs, antibiotics, or antipsychotics, are at an exponentially higher risk of developing Torsades de Pointes—a specific, fast, and often fatal type of ventricular tachycardia—when they have low potassium. Consequently, monitoring serum potassium levels is a standard of care for patients on these medications.
Furthermore, hypokalemia is frequently seen in clinical scenarios such as diuretic use (especially loop and thiazide diuretics), severe gastrointestinal losses (vomiting or diarrhea), or diuretic abuse. Recognizing the ECG signs is often the first step in diagnosing underlying causes that might otherwise remain overlooked.
Diagnostic Approach and Management
When an ECG shows findings suggestive of hypokalemia, the immediate clinical step is to confirm the diagnosis with a serum blood test. Relying solely on the ECG is insufficient because other conditions, such as medication effects or myocardial ischemia, can sometimes mimic the ECG changes of hypokalemia.
Once hypokalemia is confirmed, the goal of treatment is to replenish potassium stores while continuously monitoring cardiac electrical activity. Management generally involves:
- Oral or Intravenous Potassium Supplementation: Depending on the severity of the depletion and the patient’s symptoms.
- Continuous Cardiac Monitoring: Patients with significant ECG changes are often admitted for telemetry to monitor for life-threatening arrhythmias during the repletion process.
- Addressing the Underlying Cause: Identifying why potassium levels became low in the first place—whether it is drug-induced, dietary, or due to a medical condition—is critical to preventing recurrence.
⚠️ Note: Potassium replacement must be carefully managed. Intravenous potassium can be irritating to veins and, if administered too rapidly, can cause hyperkalemia (dangerously high potassium), which brings its own set of lethal cardiac risks.
The relationship between low potassium and ECG patterns serves as a crucial bridge between electrolyte balance and cardiac stability. Because potassium is vital for the proper electrical depolarization and repolarization of the heart, even minor fluctuations can result in observable changes on an ECG, such as flattened T-waves, depressed ST-segments, and the development of prominent U-waves. These indicators are indispensable for clinicians, acting as immediate cues to investigate potential hypokalemia and take swift action to prevent serious cardiac arrhythmias. By understanding these ECG signals and promptly addressing the underlying electrolyte deficiency, medical professionals can effectively mitigate the risks associated with this common but potentially dangerous condition, ultimately ensuring better patient outcomes and heart rhythm stability.
