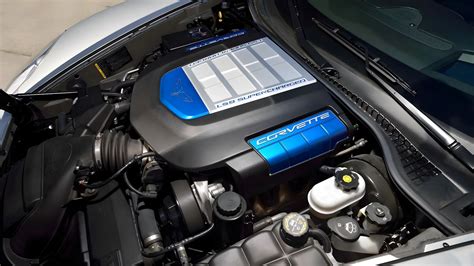

The Ls9 engine stands as one of the most legendary achievements in the history of General Motors' small-block V8 lineage. Introduced in the awe-inspiring C6 Chevrolet Corvette ZR1, this supercharged powerhouse redefined what a production-based sports car could achieve in terms of raw power and track-ready reliability. For automotive enthusiasts, tuners, and high-performance builders, the Ls9 remains the gold standard for forced-induction LS platform builds. Its unique combination of advanced metallurgy, integrated forced induction, and precision engineering makes it a marvel of modern internal combustion technology.
Engineering Marvel: The Architecture of the Ls9
At the heart of the Ls9 engine is a 6.2-liter aluminum cylinder block that was specifically designed to handle the massive stress of its Eaton Twin Vortex Series (TVS) supercharger. Unlike standard LS engines, the Ls9 block features deck-plate honing to ensure the cylinders remain perfectly round under extreme pressure. The block also utilizes high-strength, six-bolt main bearing caps, ensuring that the rotating assembly remains stable even when pushing well beyond its factory power rating.
One of the most critical aspects of the Ls9 architecture is the integration of titanium connecting rods and a forged steel crankshaft. These components were chosen not just for their weight-saving properties, but for their incredible tensile strength. By reducing reciprocating mass, the engine can rev faster and more reliably, which is essential when the supercharger is forcing massive amounts of air into the combustion chamber.
Key Specifications and Performance Metrics
When the Ls9 engine first hit the streets, it boasted a staggering 638 horsepower and 604 lb-ft of torque. These numbers were monumental for a production V8 in the late 2000s, helping the ZR1 achieve a top speed of over 200 mph. The following table highlights the core technical specifications that set this engine apart from its naturally aspirated siblings.
| Feature | Specification |
|---|---|
| Displacement | 6.2L (376 cubic inches) |
| Supercharger Type | Eaton TVS R2300 |
| Compression Ratio | 9.1:1 |
| Valve Train | OHV, 2 valves per cylinder |
| Max Horsepower | 638 hp @ 6,500 rpm |
| Max Torque | 604 lb-ft @ 3,800 rpm |
The Role of Forced Induction

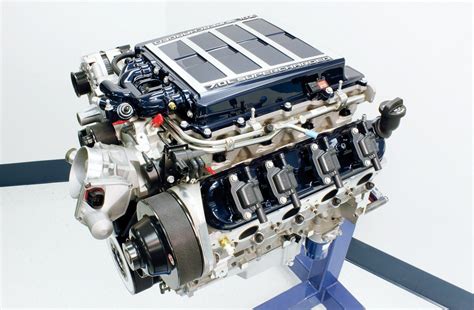

The Eaton TVS R2300 supercharger is what truly defines the personality of the Ls9 engine. Unlike centrifugal superchargers that build power linearly, the TVS system provides near-instant torque, making the engine incredibly responsive at low RPMs. This "instant-on" power delivery is a hallmark of the Ls9, providing a driving experience that feels more like a naturally aspirated engine with massive displacement rather than a traditional forced-induction unit.
To support this high-pressure environment, GM implemented several cooling solutions:
- Dual-Brick Intercooler: A highly efficient liquid-to-air cooling system located inside the supercharger housing.
- Dry Sump Lubrication: A sophisticated oiling system that prevents oil starvation during high-G cornering, a necessity for a car intended for road racing.
- Piston Oil Squirters: Tiny nozzles that spray oil onto the underside of the pistons to manage heat and prevent detonation.
⚠️ Note: Maintaining the cooling system is paramount. Always ensure the supercharger intercooler fluid is clean and free of air bubbles to prevent heat soak, which can drastically reduce performance.
Why the Ls9 Engine Remains Highly Coveted
Despite being succeeded by newer platforms like the LT4 and LT5, the Ls9 engine remains highly desirable in the aftermarket scene. Its simplicity compared to modern direct-injection engines makes it easier for enthusiasts to modify and tune. Because the Ls9 was built with an over-engineered bottom end, it is an excellent candidate for those seeking to push the engine toward the 800-1000 horsepower mark without replacing major internal components.
Furthermore, the Ls9 represents an era of "analog" performance before extreme emissions regulations tightened the reins on engine design. It sounds aggressive, behaves predictably, and provides the kind of mechanical feedback that modern, highly computerized cars often lack.
Customizing and Upgrading Your Build
For those looking to build or modify an Ls9 engine, the aftermarket offers a wealth of options. Most enthusiasts begin with these three primary areas to unlock more potential:
- Pulley Upgrades: By swapping to a smaller supercharger pulley, you can increase boost pressure, yielding immediate gains in horsepower.
- Ported Supercharger Snout: Enhancing the airflow path leading into the Eaton unit allows the engine to "breathe" better, especially at high RPMs.
- Custom ECU Calibration: A professional tune is mandatory when adding more air to ensure the air-fuel ratios remain within a safe range, preventing engine failure.
💡 Note: When increasing boost, always verify that your fuel system, specifically the injectors and fuel pump, can support the additional volume of fuel required to maintain the proper air-fuel mixture.
The Legacy of Power

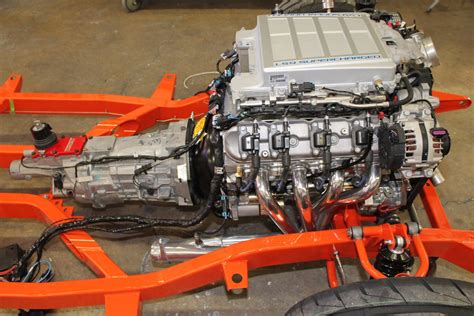

Reflecting on the impact of this powertrain, it is clear that the Ls9 succeeded in bridging the gap between a street-legal cruiser and a track-dominating beast. Its influence can be felt in almost every high-performance engine released by General Motors in the decade that followed. Whether it is powering a restored classic, a purpose-built race car, or simply preserved in a factory-original Corvette ZR1, the Ls9 represents a golden era of internal combustion. Its legacy is secured by its bulletproof construction, its massive tuning potential, and the pure, unfiltered joy it brings to anyone lucky enough to stand on the gas pedal.
