Left ventricular hypertrophy (LVH) is a clinical condition characterized by the thickening of the muscular wall of the heart's left pumping chamber. As the heart works harder to pump blood against increased resistance—often due to chronic hypertension or valvular heart disease—the muscle fibers enlarge, leading to structural changes that can impair cardiac function over time. Clinicians rely on specific Lvh Criteria derived from electrocardiograms (ECG) to identify these structural adaptations early. Understanding these diagnostic benchmarks is essential for healthcare providers to prevent long-term complications such as heart failure, arrhythmias, and sudden cardiac death.
The Clinical Importance of Detecting Left Ventricular Hypertrophy
Early detection of cardiac structural changes is a cornerstone of modern cardiology. When the heart muscle undergoes hypertrophy, it requires more oxygen, becomes stiffer, and has a higher susceptibility to electrical instability. By applying standardized Lvh Criteria, medical professionals can categorize a patient's risk profile more effectively. An ECG remains the most accessible and cost-effective screening tool for this purpose, serving as an initial window into the anatomical health of the heart before more invasive procedures like echocardiography are required.
Commonly Used Electrocardiographic Criteria
While various methods exist to diagnose LVH via ECG, some are more sensitive while others prioritize specificity. The reliance on voltage-based measurements is the most common approach. Below are the primary diagnostic markers used in clinical settings today:
- Sokolow-Lyon Index: This is one of the most widely used methods. It adds the amplitude of the S-wave in lead V1 to the amplitude of the R-wave in lead V5 or V6. A sum exceeding 35 mm is highly suggestive of LVH.

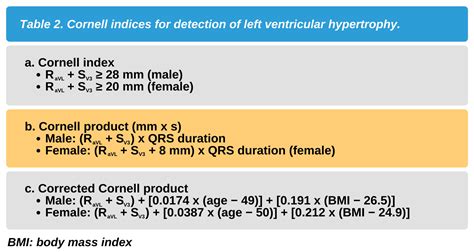

- Cornell Voltage Criteria: Often considered more accurate than Sokolow-Lyon, this method involves adding the R-wave in lead aVL to the S-wave in lead V3. The threshold is greater than 28 mm for men and greater than 20 mm for women.
- Romhilt-Estes Point Score System: This is a more comprehensive diagnostic scoring tool. It assigns points based on voltage criteria, ST-T segment changes, left atrial enlargement, and left axis deviation. A score of 5 or more points provides a definitive diagnosis.
- Lead aVL Voltage: Simple voltage criteria can also be applied to lead aVL alone. An R-wave amplitude greater than 11 mm in this lead is a specific marker for LVH.
💡 Note: Sensitivity for voltage-based criteria is generally low in obese patients or individuals with chronic obstructive pulmonary disease (COPD), as increased chest wall thickness or lung hyperinflation can dampen electrical signals.
Comparative Analysis of Diagnostic Thresholds
Because no single test is perfect, clinicians often compare multiple criteria to confirm a suspected diagnosis. The following table highlights the common voltage-based benchmarks used during routine patient assessment:
| Criteria Name | Calculation/Method | Threshold for Diagnosis |
|---|---|---|
| Sokolow-Lyon | S (V1) + R (V5/V6) | > 35 mm |
| Cornell Voltage (Men) | R (aVL) + S (V3) | > 28 mm |
| Cornell Voltage (Women) | R (aVL) + S (V3) | > 20 mm |
| aVL Voltage | R-wave amplitude | > 11 mm |
Limitations and Diagnostic Nuances
It is important to recognize that Lvh Criteria are tools, not absolute substitutes for imaging. The ECG is known for having high specificity but relatively low sensitivity. This means that if the ECG criteria are met, the patient likely has hypertrophy, but if the ECG appears normal, LVH cannot be entirely ruled out. Factors such as age, body mass index, and the presence of bundle branch blocks can significantly influence the accuracy of these readings.
For instance, in the presence of a Left Bundle Branch Block (LBBB), standard voltage criteria are often rendered unreliable. In such cases, physicians typically move toward secondary markers, such as the "strain pattern"—a characteristic downsloping ST-segment depression and T-wave inversion in leads V5 and V6. Recognizing these secondary signs is just as critical as measuring the amplitude of specific waveforms.
💡 Note: Always cross-reference ECG findings with the patient's physical examination and history, particularly looking for signs of systemic hypertension, as this remains the leading driver of left ventricular remodeling.
Moving Beyond the Electrocardiogram
When the Lvh Criteria on an ECG suggest structural abnormalities, the next step is usually a transthoracic echocardiogram. This imaging modality allows the cardiologist to visualize the septum and posterior wall thickness directly. It provides a definitive measurement of the left ventricular mass index (LVMI), which is the gold standard for classifying the severity of hypertrophy. By integrating the electrical data from the ECG with the anatomical data from the echocardiogram, clinicians can create a highly personalized treatment plan, which may include lifestyle modifications, blood pressure management, or specialized medications to promote "regression" of the muscle thickening.
The Path to Better Cardiac Outcomes
Addressing the underlying causes of left ventricular hypertrophy is a lifelong commitment. Hypertension management, salt reduction, consistent exercise, and regular monitoring are the cornerstones of therapy. When these strategies are implemented, many patients see a measurable decrease in heart strain and an improvement in overall cardiac efficiency. It is the synergy between accurate diagnostic criteria and disciplined patient care that ensures the heart remains a strong and resilient pump throughout the patient's life.
Effective cardiac care begins with the precise application of diagnostic tools. By utilizing the Lvh Criteria during routine screenings, clinicians can detect the subtle electrical signals of a heart that is struggling under pressure. While the ECG offers a vital starting point, it is the comprehensive approach—combining voltage thresholds, clinical history, and advanced imaging—that ultimately guides the medical community in protecting heart health. Consistent monitoring and timely intervention, guided by these established diagnostic benchmarks, remain the most effective ways to manage the structural health of the heart and improve the long-term prognosis for those at risk.
