Map Sensor Meaning

When you pop the hood of your vehicle, you are met with a complex array of sensors, wires, and mechanical components that work in harmony to keep your engine running smoothly. Among these, the Manifold Absolute Pressure sensor is one of the most critical components for performance and efficiency. Understanding the Map Sensor Meaning is essential for any car owner who wants to diagnose engine issues, improve fuel economy, or simply understand how their vehicle "breathes." Without this tiny but powerful device, your engine’s internal computer would be essentially flying blind, unable to determine how much air is entering the combustion chamber.

What is a MAP Sensor?

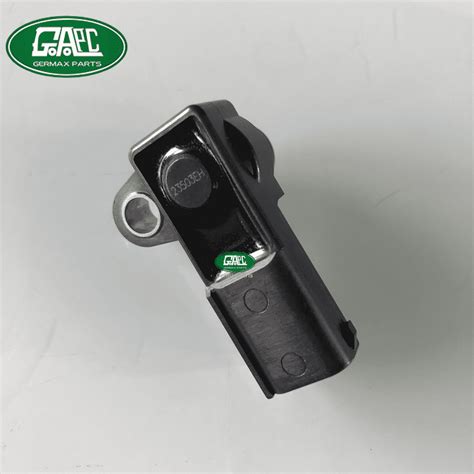

The MAP sensor, which stands for Manifold Absolute Pressure sensor, is an electronic component that measures the pressure of the air inside the intake manifold. The intake manifold is the part of the engine that distributes air to the cylinders for the combustion process. By measuring the pressure, the MAP sensor provides the Engine Control Unit (ECU) with vital data about the engine's load and atmospheric conditions.

When you press the gas pedal, the throttle plate opens, changing the pressure within the intake manifold. The MAP sensor detects these rapid changes and signals the ECU to adjust the fuel injection timing and spark advance accordingly. In essence, it acts as a primary sensor that helps the vehicle maintain the perfect air-to-fuel ratio, ensuring optimal performance under various driving conditions.

The Function of the MAP Sensor in Modern Engines

To fully grasp the Map Sensor Meaning, it is helpful to look at why the ECU needs this specific data. An engine operates by mixing a precise amount of fuel with air. If there is too much air (a lean mixture) or too much fuel (a rich mixture), the engine will not run efficiently and may eventually suffer damage. The MAP sensor helps the ECU calculate:

• Engine Load: The sensor determines how hard the engine is working, which is vital for transmission shifting and fuel delivery.
• Altitude Compensation: As you drive at higher altitudes, the air becomes thinner. The MAP sensor informs the ECU that there is less air pressure, allowing it to adjust fuel delivery so the engine does not run too rich.
• Fuel Injection Timing: By knowing exactly how much air is entering the engine, the ECU can deliver the exact micro-drop of fuel required for combustion.

Symptoms of a Faulty MAP Sensor

Because the MAP sensor is so central to engine management, a failure can cause a wide variety of symptoms. Many drivers mistakenly believe their transmission is failing or their fuel pump is dying, when the culprit is simply a malfunctioning sensor. Common signs include:

• Check Engine Light: The ECU will almost always trigger a code (usually P0106, P0107, or P0108) when it receives illogical data from the MAP sensor.
• Poor Fuel Economy: If the sensor sends a signal suggesting the engine is under a heavy load when it is not, the ECU will dump unnecessary fuel into the cylinders.
• Rough Idling: An inconsistent signal can cause the engine to stumble or vibrate excessively while waiting at a traffic light.
• Hesitation during Acceleration: If the sensor fails to detect a sudden change in pressure when you step on the gas, the engine will feel sluggish or "flat" for a second before picking up speed.

⚠️ Note: If you notice a strong smell of gasoline coming from your exhaust, it is often a sign of a bad MAP sensor causing an overly rich fuel mixture, which can lead to catalytic converter failure if ignored.

Testing and Troubleshooting

If you suspect your MAP sensor is failing, you do not necessarily need to rush to the mechanic immediately. You can perform a basic inspection. Most MAP sensors have three wires: a 5-volt reference wire, a ground wire, and a signal wire. By using a multimeter, you can check if the sensor is providing a signal that changes as you rev the engine.

In many cases, the sensor itself is not broken, but the vacuum hose connected to it may be cracked or disconnected. Since the Map Sensor Meaning is tied to "pressure," any air leak in the vacuum lines will result in an incorrect reading. Always check the physical integrity of the rubber hoses before concluding that the electronic component has failed.

Maintenance and Replacement

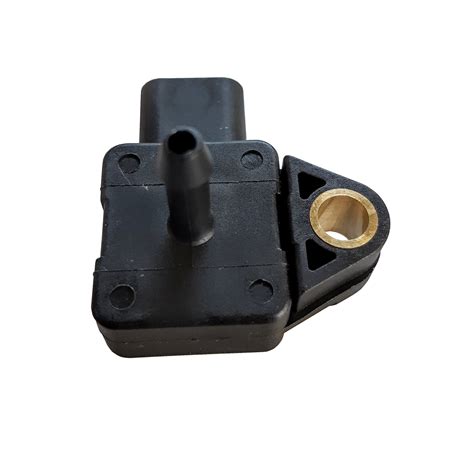

Most modern MAP sensors are "plug and play." They do not require routine maintenance in the traditional sense, but they can get clogged with oil vapors or carbon buildup over time. In some vehicles, cleaning the sensor with a specialized electronics cleaner can restore its function. However, if the internal diaphragm of the sensor has degraded, it must be replaced.

When replacing a MAP sensor, ensure you disconnect the negative battery terminal to reset the ECU. Once the new sensor is installed, the vehicle may need a short "re-learn" period where the computer calibrates itself to the new input data. This ensures that the engine idle and shift points return to their optimal factory settings.

Gaining a clear understanding of the Map Sensor Meaning demystifies a core aspect of automotive engineering. It is not just a piece of plastic and wire; it is the sensor that allows your car to adapt to the world around it, whether you are climbing a mountain pass or navigating stop-and-go city traffic. By keeping an eye out for the symptoms mentioned above and performing simple routine checks on vacuum lines and connections, you can keep your engine running efficiently for many years. Always remember that a healthy engine relies on accurate data, and the MAP sensor is a primary source of that vital information. If you ever find your car hesitating or consuming more fuel than usual, checking the intake pressure readings is always a smart first step in your diagnostic process.
