Aerodynamics is a field that often seems reserved for massive, industrial-scale laboratories filled with complex equipment and high-cost machinery. However, the principles governing flight, drag, and airflow can be explored right on your workbench. A Miniature Wind Tunnel serves as an indispensable tool for students, hobbyists, and budding engineers to visualize fluid dynamics without needing a multi-million dollar facility. Whether you are testing the drag coefficient of a custom drone chassis or optimizing a high-speed racing car model, these compact devices provide empirical data that bridge the gap between theoretical calculations and real-world performance.
The Fundamentals of Aerodynamic Testing
Before diving into the construction of a Miniature Wind Tunnel, it is essential to understand why these devices are so effective. At its core, a wind tunnel functions by moving air past a stationary object, allowing researchers to observe the interactions between the object's geometry and the air stream. By keeping the object stationary while the air is in motion, you can simulate flight conditions under controlled parameters, such as speed, angle of attack, and turbulence intensity.
In a small-scale environment, laminar flow is the primary goal. Laminar flow occurs when air travels in smooth, parallel layers, which is crucial for obtaining accurate results. If the air becomes turbulent before hitting your test model, the data collected will be inconsistent, making it nearly impossible to determine the true aerodynamic efficiency of your design.

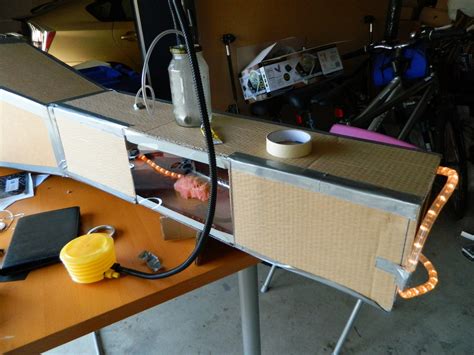

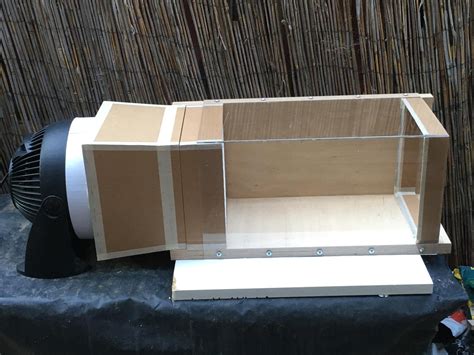

Key Components of a Small-Scale Wind Tunnel
Building an effective Miniature Wind Tunnel requires a precise arrangement of components. If any single part of the "wind tunnel circuit" is flawed, it will introduce artifacts or errors into your aerodynamic experiments. Here are the fundamental sections of a typical setup:

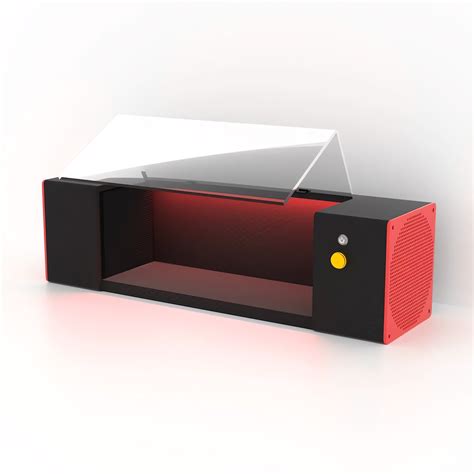

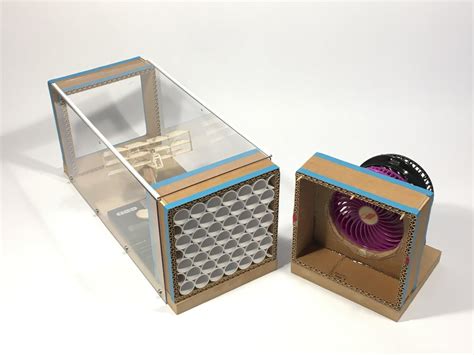

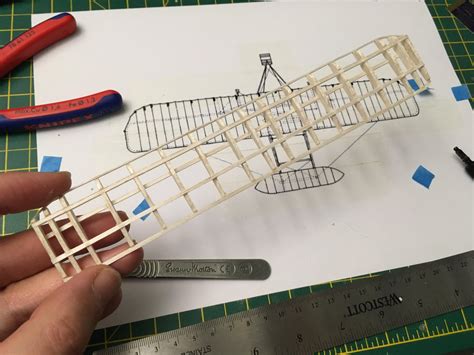

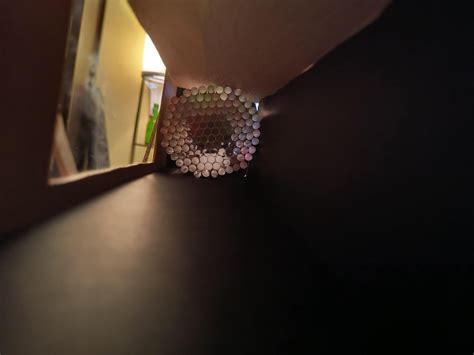

- The Intake (Settling Chamber): This section often includes a honeycomb structure to straighten out incoming air and remove large-scale turbulence.
- Contraction Cone: This is a funnel-like section that increases the velocity of the air as it moves from the wide settling chamber to the narrow test section.

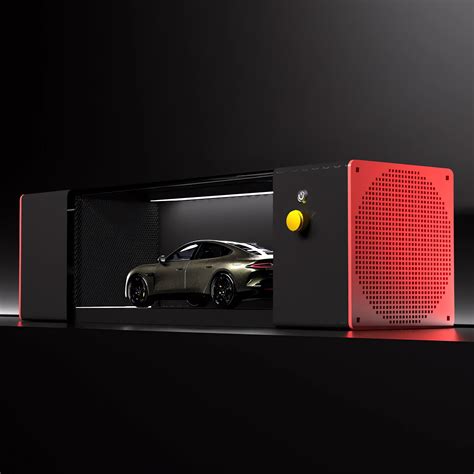

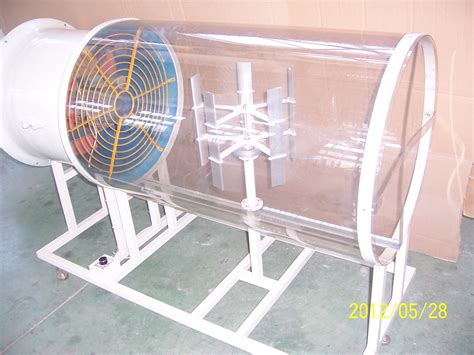

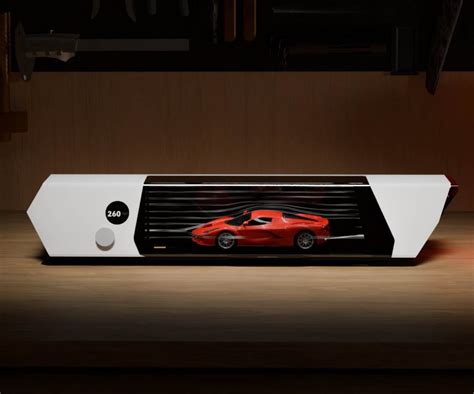

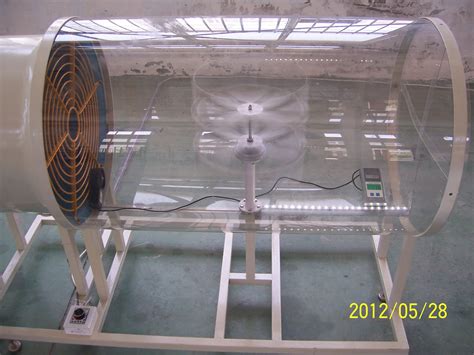

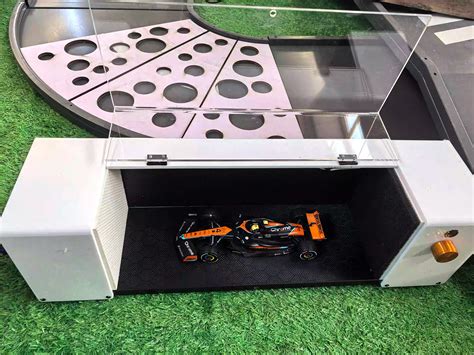

- Test Section: The core area where your model is placed. This area must be transparent to allow for observation or camera mounting.
- Diffuser: Located at the end of the tunnel, the diffuser slows down the air stream before it hits the fan, which helps in pressure recovery.
- Fan/Blower: The power source that draws air through the system. Placing the fan at the rear (a suction-type tunnel) often results in a smoother flow compared to a blowing-type tunnel.
Comparison of Wind Tunnel Configurations
| Configuration | Pros | Cons |
|---|---|---|
| Open-Circuit | Simpler construction, lower cost. | Affected by ambient room air quality. |
| Closed-Circuit | Higher efficiency, controlled air temperature. | Large footprint, complex design. |
| Suction-Type | Smoother flow profile in the test section. | Fan must be rated for high volume. |

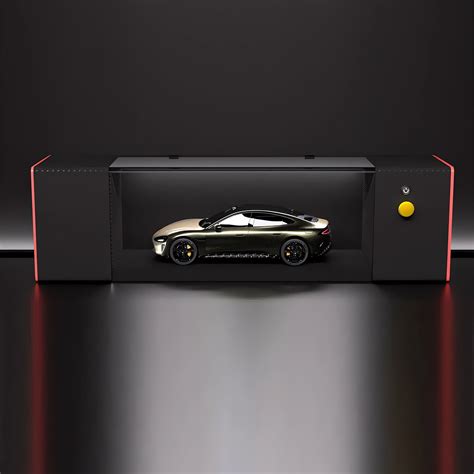

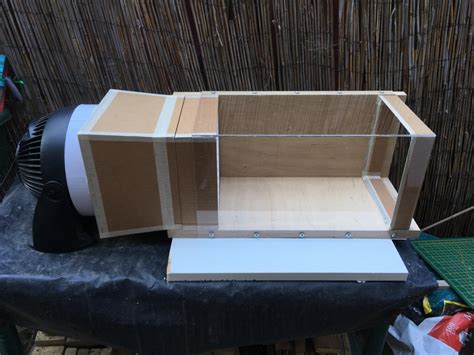

Designing Your Own Test Section
The test section is where the magic happens. When designing a Miniature Wind Tunnel, ensure the test section walls are smooth. Any imperfections in the wall surface—like a screw head or a sharp joint—can trigger boundary layer separation, which will ruin the accuracy of your lift and drag measurements. Many engineers use acrylic or polycarbonate sheets to build these sections, as they are easy to machine and provide excellent visibility for flow visualization techniques like smoke injection or tuft testing.
Furthermore, you must consider the "blockage ratio." This refers to the size of the model relative to the cross-sectional area of the tunnel. If the model is too large, it will force the air to accelerate around it unnaturally, leading to erroneous high-speed data. A general rule of thumb is to ensure the model’s frontal area does not occupy more than 5% to 10% of the test section’s cross-sectional area.
💡 Note: Always ensure that the mounting hardware for your model is as thin as possible. Thick supports can interfere with the airflow and create parasitic drag that isn't actually part of your model's design.
Advanced Flow Visualization Techniques
Once your Miniature Wind Tunnel is operational, you will want to see the invisible forces at play. Visualization is not just for aesthetic appeal; it is the primary way to identify "stagnation points" and "separation bubbles" on a test object. Common methods include:

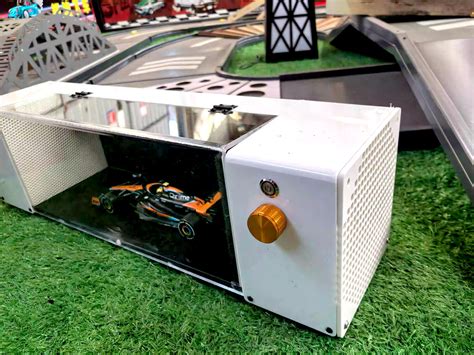

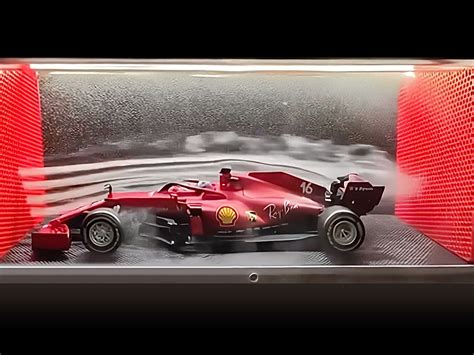

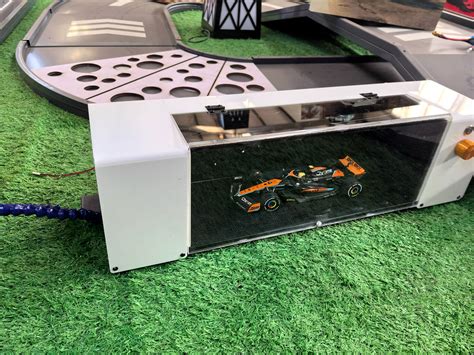

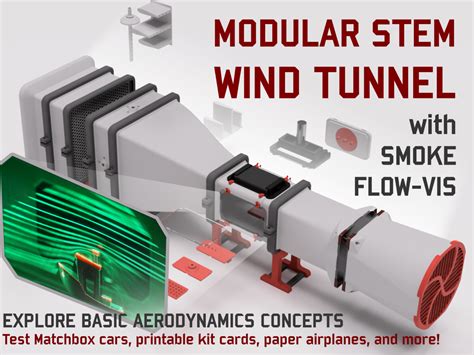

- Smoke Wands: Introducing a stream of smoke into the intake allows you to see the streamlines as they flow over your model.
- Surface Tufting: Attaching small pieces of yarn to the surface of the model reveals whether the air is flowing smoothly or if the airflow has detached from the surface.
- Oil Flow Visualization: Painting a thin layer of oil mixed with pigment on the model allows you to see skin-friction patterns after the tunnel has been running for a period of time.
Maintenance and Calibration Tips
Maintaining a Miniature Wind Tunnel is a routine process. Dust and debris are the enemies of precision testing. Because the tunnel acts like a giant vacuum cleaner, it will inevitably pull dust from the room, which can build up on your sensors or distort the airflow patterns. Regularly cleaning the internal walls with an anti-static cloth is highly recommended.
Calibration is equally important. You should use a pitot tube or a hot-wire anemometer to verify the velocity of the air in the test section at various fan power settings. Keeping a logbook of these "speed-to-voltage" correlations will save you hours of guesswork during your actual research sessions.
⚠️ Note: Avoid testing models with loose parts, as the high-velocity air can easily rip off small components and send them flying into the fan blades, potentially damaging the equipment.
The journey into aerodynamics through a Miniature Wind Tunnel offers a deep, hands-on understanding of how fluid physics influences the objects we use every day. By carefully constructing each segment of the tunnel, paying close attention to flow quality, and utilizing smart visualization techniques, you turn a complex scientific process into an accessible learning experience. Whether you are refining an automotive prototype or exploring the effects of wing geometry on lift, the consistency provided by a well-built wind tunnel is the foundation of innovation. As you continue your experiments, you will find that even small adjustments in model design can lead to massive improvements in efficiency, proving that sometimes the most important breakthroughs start in the smallest of spaces.
