Modes In Ventilator

Mechanical ventilation is a cornerstone of critical care medicine, providing essential life support for patients unable to breathe effectively on their own. Central to the safe and effective delivery of this support is a thorough understanding of modes in ventilator settings. A ventilator mode defines how the machine interacts with the patient's respiratory efforts, determining how breaths are triggered, limited, and cycled. Choosing the appropriate mode is a dynamic process, requiring clinicians to balance oxygenation, ventilation, patient comfort, and the prevention of ventilator-induced lung injury (VILI).

Table of Contents

Understanding the Basics of Ventilator Modes

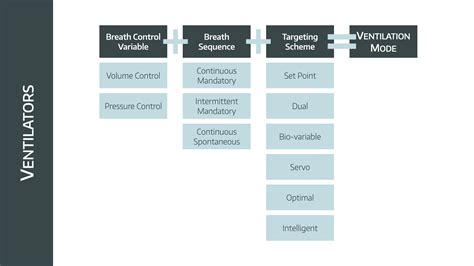

At its core, a ventilator mode is essentially a set of instructions telling the machine how to deliver a breath. To understand these modes, one must understand the three phases of a breath: trigger (what starts the breath), limit (what controls the flow or pressure during the breath), and cycle (what ends the breath). Modern ventilators offer a wide array of modes, but they generally fall into three main categories based on the level of support provided:

Full Support: The ventilator performs the majority or all of the work of breathing.
Partial Support: The patient takes some breaths, and the ventilator assists with others, allowing the patient to actively participate in the work of breathing.
Spontaneous Breathing: The patient performs all the work of breathing, with the ventilator providing only minimal assistance, such as pressure support or Positive End-Expiratory Pressure (PEEP).

Commonly Used Ventilator Modes

While technology continues to advance, several traditional modes remain the standard in most intensive care units. Familiarity with these is crucial for respiratory therapists, nurses, and physicians.

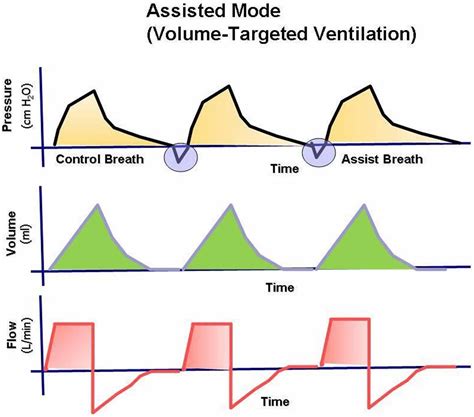

Volume Control Ventilation (VCV)

In Volume Control Ventilation, the clinician sets a specific tidal volume (the amount of air delivered with each breath) and a respiratory rate. The ventilator guarantees this volume regardless of the pressure required to achieve it. This mode is excellent for ensuring consistent minute ventilation but carries a risk of high airway pressures if lung compliance changes.

Pressure Control Ventilation (PCV)

Conversely, Pressure Control Ventilation focuses on limiting the pressure in the airway. The clinician sets a target inspiratory pressure and an inspiratory time. The tidal volume delivered will depend on the patient’s lung compliance and resistance. This mode is often preferred to reduce the risk of barotrauma, as the airway pressure is capped at the set limit.

Synchronized Intermittent Mandatory Ventilation (SIMV)

SIMV is a hybrid mode that allows the patient to breathe spontaneously between mandatory, ventilator-delivered breaths. The ventilator synchronizes the mandatory breaths with the patient’s own inspiratory efforts to prevent “fighting the vent.” It is frequently used during the weaning process to gradually reduce ventilator support.

Pressure Support Ventilation (PSV)

PSV is a purely spontaneous mode. The patient triggers every breath, and the ventilator provides a set amount of positive pressure to assist the breath. This reduces the work of breathing associated with breathing through an endotracheal tube. It is arguably the most common mode used for weaning patients off the ventilator.

💡 Note: Always monitor the patient's respiratory rate and tidal volume when using pressure-targeted modes, as changes in lung mechanics can lead to inadequate ventilation if the pressure limits remain unchanged.

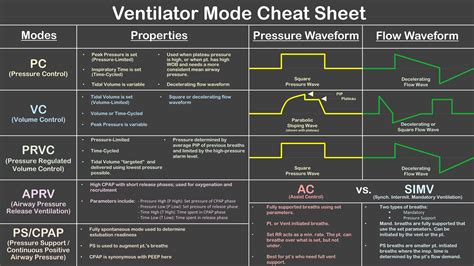

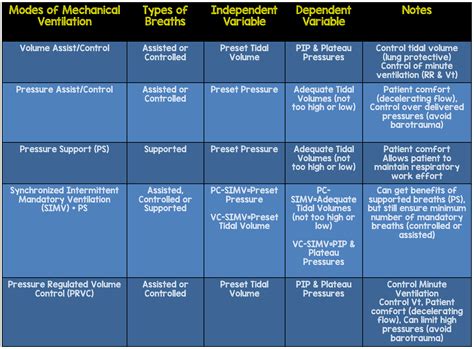

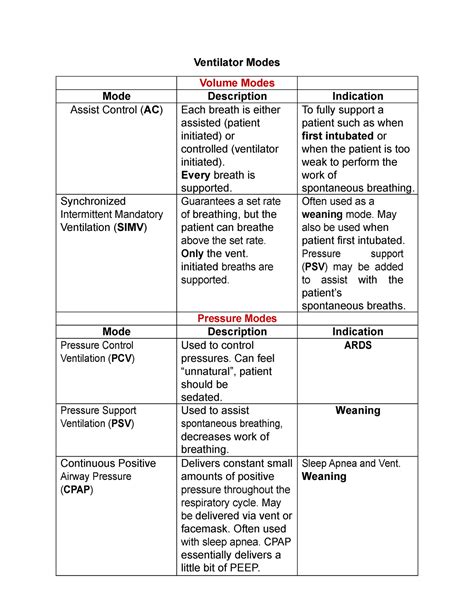

Comparison Table of Primary Ventilator Modes

Mode	Primary Control	Patient Effort	Main Advantage
Volume Control (VCV)	Volume	Variable	Guarantees minute ventilation
Pressure Control (PCV)	Pressure	Variable	Limits peak airway pressure
SIMV	Mixed	Spontaneous allowed	Useful for weaning
Pressure Support (PSV)	Pressure	Fully spontaneous	Increases patient comfort

Advanced Modes and Adaptive Support

Beyond traditional modes, modern ventilators offer advanced options designed to optimize patient-ventilator synchrony and reduce clinical workload. These often use complex algorithms to adjust settings automatically based on real-time feedback.

Also read: When Does Braxton Hicks Happen

Adaptive Support Ventilation (ASV)

Adaptive Support Ventilation is a closed-loop mode that automatically adjusts the respiratory rate and pressure support based on the patient’s measured lung mechanics and exhaled carbon dioxide. The clinician sets a target minute ventilation, and the machine does the rest, aiming to minimize the work of breathing and avoid dynamic hyperinflation.

Proportional Assist Ventilation (PAV)

PAV acts as an amplifier of the patient’s own respiratory effort. The ventilator senses the patient’s effort and provides assistance proportional to that effort. When the patient breathes harder, the ventilator assists more; when the patient breathes less, the ventilator assists less. This mode can significantly improve patient-ventilator synchrony, as it allows the patient to control their own respiratory pattern.

Neurally Adjusted Ventilatory Assist (NAVA)

Considered one of the most advanced modes, NAVA uses an esophageal catheter to detect the electrical activity of the diaphragm (Edi). Because the diaphragm is activated by the brain before actual breathing starts, NAVA triggers the ventilator almost instantly, making the interaction nearly seamless. This is particularly beneficial for patients who have difficulty triggering conventional ventilators.

Selecting the Right Mode

Choosing between the various modes in ventilator support is not a one-size-fits-all endeavor. The selection should be based on the patient’s primary pathology, their current phase of illness, and their neurological status. For instance, a patient with ARDS (Acute Respiratory Distress Syndrome) may benefit from pressure-limited, lung-protective strategies, while a patient undergoing a weaning trial is better suited for pressure support.
