Mortise And Tenon Joint

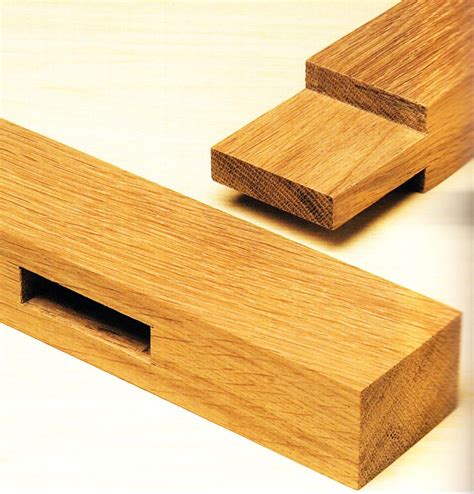

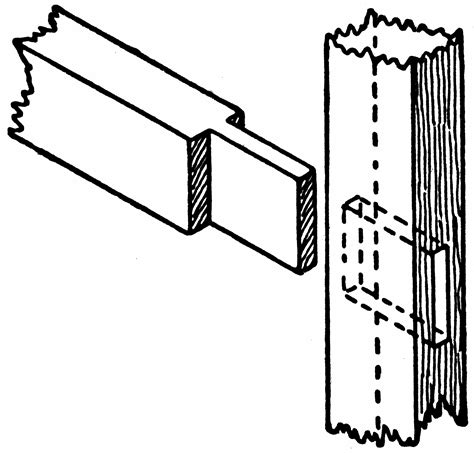

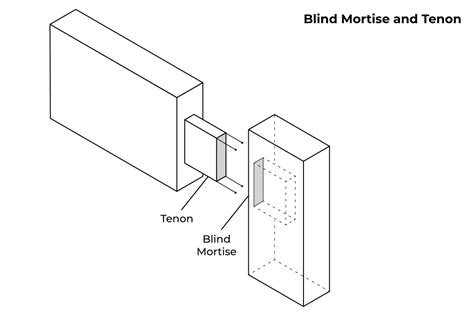

The Mortise And Tenon Joint stands as the undisputed titan of woodworking joinery. With a history stretching back thousands of years—found in ancient Egyptian furniture and traditional Japanese temple architecture—this technique remains the gold standard for structural integrity and longevity. Whether you are crafting a simple stool or a robust dining table, understanding how to execute this connection is a rite of passage for every woodworker. At its core, it is a deceptively simple marriage of two components: the mortise, which is the hole or slot, and the tenon, which is the tongue or projection that fits snugly into it. When cut with precision, this joint creates an incredibly strong bond that relies on mechanical interlocking rather than just wood glue.

Table of Contents

Understanding the Mechanics of the Joint

To master the Mortise And Tenon Joint, one must appreciate the forces at play. This joint is specifically designed to resist racking, pulling, and twisting—the three primary enemies of furniture stability. By nesting a piece of wood inside another, you maximize the long-grain-to-long-grain surface area, which is essential for a high-strength glue bond. Unlike screws or nails that can pull out over time, the physical footprint of this joint ensures that the wood moves as a single unit as it expands and contracts with seasonal humidity changes.

There are several variations of the joint, each suited to different applications:

Essential Tools for Success

While power tools like a hollow chisel mortiser or a router with a guide can accelerate the process, many traditionalists prefer the precision of hand tools. Achieving a perfect fit often comes down to the quality of your layout and the sharpness of your chisels. Below is a breakdown of the essential equipment required to cut a clean Mortise And Tenon Joint.

Tool	Purpose
Marking Gauge	Ensures exact, consistent layout lines.
Mortise Chisel	Designed specifically for levering out waste material.
Tenon Saw	Provides a fine, straight cut for the tenon cheeks.
Mallet	Provides the driving force for chiseling.
Combination Square	Essential for checking for 90-degree accuracy.

Step-by-Step Execution

The process of creating a professional-grade Mortise And Tenon Joint is split into two distinct phases: cutting the mortise and forming the tenon. Always start with the mortise, as it is easier to trim a tenon to fit a hole than it is to adjust a hole to fit a pre-cut tenon.

Step 1: Layout

Precision begins with your layout. Use a marking gauge to scribe lines that represent the width of your mortise. If you set your gauge once and use it for both parts of the joint, you guarantee that the centerlines will align perfectly, regardless of the board thickness.

Step 2: Cutting the Mortise

Begin by chopping out the waste using your mortise chisel. Start from the center and work your way toward the ends of your marked layout lines. It is helpful to work in small increments to prevent the chisel from binding. Once you have reached the desired depth, clean up the ends to ensure they are crisp and vertical.

Step 3: Forming the Tenon

Using a tenon saw or a bandsaw, make the cheek cuts. The key here is to cut on the “waste” side of your layout line, leaving the line visible. If the fit is too tight, use a shoulder plane or a sharp paring chisel to shave off thin ribbons of material until the tenon slides into the mortise with a gentle, hand-pressed fit. The joint should be snug but not so tight that it splits the wood or requires excessive force.

⚠️ Note: Always test your fit on scrap wood of the same species before working on your final project pieces to ensure your technique is dialed in.

Common Challenges and Solutions

Even experienced woodworkers occasionally face issues when cutting a Mortise And Tenon Joint. One of the most common mistakes is a "loose" joint. If you accidentally cut the tenon too thin, do not rely solely on wood glue to fill the gap, as it will weaken over time. Instead, consider using a shim of veneer to build up the tenon thickness or utilize a wedged tenon approach if the design allows.

Another issue is "blowout" when chiseling the mortise. To prevent this, always work from both sides of the board. By chopping halfway through from one face and then flipping the board to meet in the middle, you ensure the exit point is clean and free of splintering. If you are using power tools, backing the board with a sacrificial piece of timber will have a similar protective effect.

Refining the Fit

The beauty of a well-crafted joint lies in the final assembly. Before applying glue, perform a dry fit. If the joint doesn't go together, resist the urge to hammer it home. Determine where the binding occurs—often it is at the shoulders or the very tip of the tenon—and use a chisel to ease those specific areas. A joint that requires only a light tap with a rubber mallet is considered ideal. Once you achieve this, you can proceed to glue-up, knowing that your project will stand the test of time.

Mastering this technique effectively bridges the gap between basic woodworking and fine furniture making. By focusing on the fundamentals of layout, careful material removal, and patience during the fitting process, you can create pieces that are not only aesthetically pleasing but also structurally sound. The Mortise And Tenon Joint remains a fundamental skill because it rewards accuracy and persistence, offering a sense of accomplishment that is hard to replicate with modern fasteners. As you continue your journey in the workshop, let this joint serve as the foundation for your future creations, knowing that its inherent strength will support your craft for generations to come.
