Upgrading the wheels on your Ford Mustang is one of the most effective ways to change the vehicle's aesthetic and handling characteristics. Whether you are aiming for a track-ready setup with lightweight forged wheels or a street cruiser look with deep-dish rims, the most critical specification you must verify is the Mustang bolt pattern. Without the correct bolt pattern, you simply cannot mount the wheels to your vehicle, making this the foundational step in any wheel-buying project.
Understanding the Mustang Bolt Pattern
The bolt pattern (or lug pattern) refers to the arrangement of the wheel studs on the wheel hub. It is defined by two numbers: the number of lug nuts and the diameter of an imaginary circle that passes through the center of all the studs, known as the Pitch Circle Diameter (PCD). For most modern Ford Mustangs, the bolt pattern is consistently standardized, but historical variations exist that owners of classic models must account for.

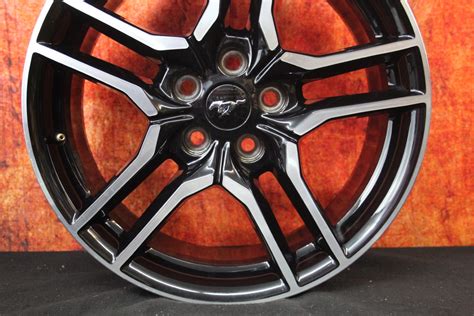

Most modern Mustangs, starting from the SN95 generation (1994) through the current S650 platform, utilize a 5x114.3mm bolt pattern. This is commonly referred to in imperial measurements as 5x4.5 inches. Because this is the most common bolt pattern for many Japanese and domestic vehicles, there is a massive variety of aftermarket wheel options available for these cars.
| Generation/Year Range | Mustang Bolt Pattern |
|---|---|
| 1964.5 – 1973 (Classic) | 5x4.5" (114.3mm) |
| 1974 – 1978 (Mustang II) | 4x4.25" |
| 1979 – 1993 (Fox Body) | 4x4.25" (5-lug conversions vary) |
| 1994 – 2004 (SN95/New Edge) | 5x4.5" (114.3mm) |
| 5x4.5" (114.3mm) | |
| 2015 – 2024+ (S550/S650) | 5x4.5" (114.3mm) |
Why Bolt Pattern Compatibility Matters
Attempting to install a wheel with an incorrect pattern can lead to catastrophic failure. If the bolt holes do not align perfectly with the wheel studs on your hub, you will experience dangerous vibrations, loose lug nuts, or worse, the wheel could shear off while driving. Never attempt to force a wheel onto the hub or use "wobble bolts" or adaptors unless you are highly experienced with automotive suspension geometry, as these can compromise structural integrity.
- Safety: Ensuring the wheel sits flush against the hub prevents the lug nuts from loosening due to shear forces.
- Fitment: Even if the Mustang bolt pattern matches, you must still consider the offset (ET) and center bore.
- Longevity: Using the correct pattern ensures that the weight of the vehicle is evenly distributed across all studs.
Identifying Your Specific Mustang Bolt Pattern
If you own an older model, particularly a Fox Body Mustang, identifying the pattern can be slightly more complex. Many enthusiasts perform a "5-lug conversion" on Fox Bodies to utilize the larger, stronger brakes and wheel options from later models. If you bought your car used, it is always wise to measure the pattern yourself rather than assuming it remains stock.
To measure the pattern, use a digital caliper or a specialized bolt pattern gauge:
- For 5-lug patterns, measure from the back of one hole to the center of the hole directly across from it.
- If you are working with a 4-lug setup, measure from the center of one hole to the center of the hole directly across (the diameter of the circle).
⚠️ Note: Always verify the center bore size alongside the bolt pattern. Even if the bolt pattern is a perfect 5x114.3mm, if the center bore of the aftermarket wheel is smaller than the Mustang hub flange, the wheel will not seat properly.
Common Challenges During Wheel Swaps

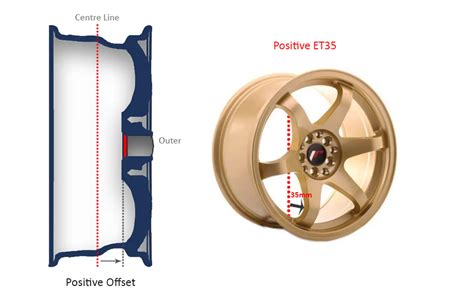

When selecting aftermarket wheels, many owners forget that the Mustang bolt pattern is only one piece of the puzzle. The offset is arguably more important for visual appeal and clearance. An offset that is too high will cause the tire to rub against the suspension components, while an offset that is too low will make the tire poke out past the fender, which may be illegal in some jurisdictions.
Furthermore, if you are upgrading to high-performance wheels, ensure you are using the correct lug nuts. Many aftermarket wheels have a "conical seat" or "tapered seat" while some OEM wheels use "mag-style" flat washers. Mixing these up will result in the wheel coming loose during operation.
Final Considerations for Your Setup
When you start searching for your next set of wheels, don't be intimidated by the technical specifications. The vast majority of Mustang owners are looking for wheels that fit the industry-standard 5x4.5" pattern. Most reputable wheel manufacturers provide fitment guides specific to the S550 or S650 platforms that take the guesswork out of the process.
Always double-check your hub measurements if you have installed a big brake kit, as these can sometimes change the effective offset or interference points. It is also beneficial to check if your new wheels require hub-centric rings. These rings are small plastic or metal adapters that fill the gap between the hub flange and the wheel center bore, ensuring that the wheel is perfectly centered, which eliminates vibration at high speeds.
Taking the time to verify your Mustang bolt pattern, offset, and center bore before purchasing will save you from the headache of returns and ensures your vehicle remains safe and road-worthy. By sticking to these guidelines, you can confidently customize your Mustang’s appearance while maintaining the performance engineering that Ford built into the vehicle from the factory. Whether you choose classic five-spoke designs or modern multi-spoke configurations, knowing your specific hardware requirements is the key to a successful upgrade.
