Negative Inspiratory Force

The Negative Inspiratory Force (NIF), often referred to in clinical literature as the Maximum Inspiratory Pressure (MIP), is a critical diagnostic measurement used to assess the strength of the respiratory muscles. For healthcare professionals working in critical care, pulmonology, and physical therapy, understanding this metric is essential for evaluating a patient’s ability to breathe independently and their potential for successful mechanical ventilation weaning. By measuring the maximum pressure that a patient can generate against an occluded airway, clinicians gain valuable insights into neuromuscular integrity and respiratory drive.

Table of Contents

Understanding the Mechanics of Negative Inspiratory Force

At its core, the Negative Inspiratory Force represents the pressure generated by the respiratory muscles—primarily the diaphragm and intercostal muscles—during a maximal inspiratory effort against a closed airway. When a patient attempts to inhale against a complete obstruction, the intrathoracic pressure drops, creating a negative pressure environment. The magnitude of this negative pressure serves as a direct indicator of the functional capacity of the muscles responsible for ventilation.

This diagnostic tool is frequently employed when assessing patients with neuromuscular diseases, such as myasthenia gravis or Guillain-Barré syndrome, as well as those recovering from prolonged mechanical ventilation. A healthy, robust inspiratory force suggests that the patient has the physical capability to maintain adequate tidal volumes, whereas a diminished force often signals muscle fatigue, weakness, or respiratory failure.

Clinical Significance and Normal Ranges

Interpreting NIF values requires an understanding of both the patient's baseline and standardized norms. While individual results vary based on age, sex, and underlying physical condition, clinicians generally look for values that indicate sufficient muscle power to protect the airway and maintain gas exchange. Generally, values are measured in centimeters of water (cmH2O).

Clinical Status	NIF Value (cmH2O)
Normal Adult Strength	-80 to -100
Acceptable for Weaning	-20 to -30
Risk of Respiratory Failure	Greater than -20

⚠️ Note: These ranges serve as general clinical guidelines. Always contextualize NIF readings with other diagnostic markers, such as rapid shallow breathing index (RSBI) and arterial blood gas analysis, for a comprehensive patient assessment.

How to Measure Negative Inspiratory Force

The measurement process requires precision and patient cooperation. To achieve an accurate reading, the procedure must be standardized to avoid false negatives caused by poor technique or lack of patient effort.

Also read: Colonoscopy Prep Instructions Pdf

Preparation: Explain the procedure to the patient, as active cooperation is required. Ensure the patient is in a comfortable, upright or semi-upright position.

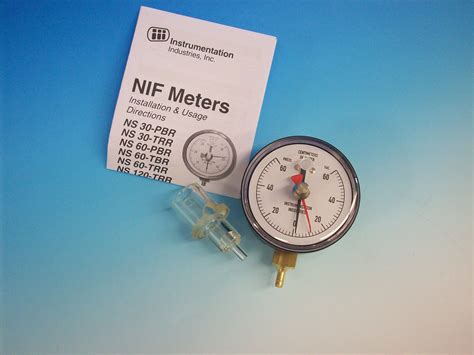

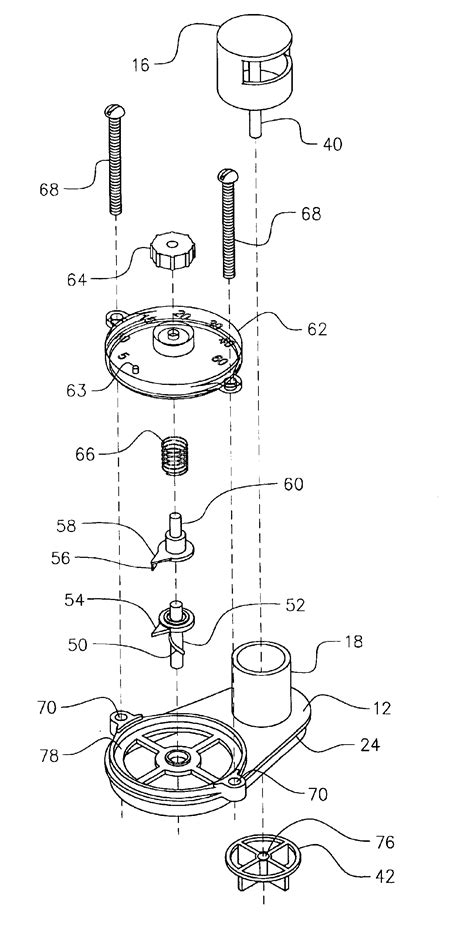

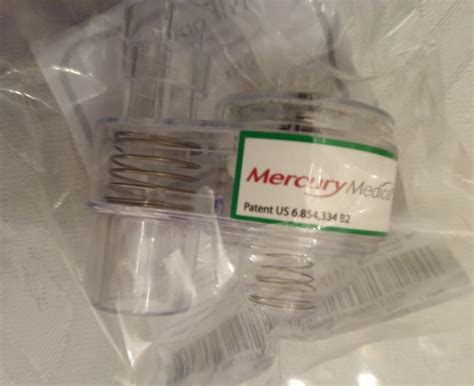

Occlusion: Use a specialized pressure manometer connected to a one-way valve or a T-piece assembly that allows for temporary airway occlusion.
The Maneuver: Ask the patient to exhale completely to their functional residual capacity and then perform a maximal inspiratory effort against the blocked airway for at least 1-2 seconds.
Observation: Monitor the manometer for the highest (most negative) pressure reading generated during the attempt.
Repetition: Perform the maneuver at least three times to ensure consistency and take the best result as the final value.

Consistency is key. Because the test relies on the patient's voluntary effort, sub-maximal attempts can lead to misleadingly low readings, which might incorrectly suggest that a patient is not ready to be weaned from a ventilator.

Factors Affecting NIF Readings

Several variables can influence the Negative Inspiratory Force, and failing to account for these can lead to clinical errors. Clinicians should be aware of the following factors:

Patient Effort: As a voluntary maneuver, patient fatigue or lack of motivation can result in reduced pressure readings.
Air Leaks: If there is a leak around an endotracheal tube cuff, the negative pressure will dissipate, leading to an artificially low reading.
Underlying Neuromuscular Conditions: Diseases that cause muscle atrophy or signal conduction issues will naturally manifest as lower NIF values.
Age and Gender: Physiological changes related to aging can result in a gradual decline in maximal inspiratory pressure, which is an expected finding rather than a sign of acute pathology.

Clinical Application in Ventilator Weaning

In the intensive care unit, the Negative Inspiratory Force is one of the most reliable predictors of successful extubation. When a patient is being transitioned off a mechanical ventilator, the clinical team needs assurance that the diaphragm can handle the workload of spontaneous breathing without tiring. An NIF value of -20 cmH2O or lower (more negative) is often used as a threshold to indicate that the respiratory muscles have sufficient endurance.

The Role of NIF in Monitoring Chronic Conditions

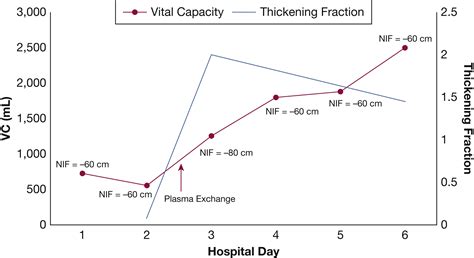

Beyond the ICU, Negative Inspiratory Force is an excellent tool for tracking the progression of chronic neuromuscular disorders. Conditions like Amyotrophic Lateral Sclerosis (ALS) or chronic myopathy cause a progressive weakening of the diaphragm. Serial measurements of NIF allow neurologists and pulmonologists to monitor the rate of decline in respiratory muscle function.

By tracking these numbers over months or years, physicians can make informed decisions regarding the timing of non-invasive ventilation (NIV) or the necessity of planning for advanced respiratory support. This proactive approach helps in optimizing the patient's quality of life and managing symptoms before severe respiratory failure occurs.
