Nonlinear Optical

The study of light and its interaction with matter has evolved significantly since the invention of the laser, ushering in the era of Nonlinear Optical phenomena. In classical optics, the response of a material to an electromagnetic field is typically linear; that is, the polarization of the material is directly proportional to the strength of the incident electric field. However, when light intensity reaches extreme levels, such as those produced by focused laser beams, this linear relationship breaks down. This departure from linear behavior, known as Nonlinear Optical (NLO) response, allows for the manipulation of light in ways previously thought impossible, forming the backbone of modern photonics, telecommunications, and advanced imaging technologies.

Table of Contents

Understanding the Physics of Nonlinear Optics

At the heart of Nonlinear Optical effects is the way electrons within a material react to the oscillating electric field of incoming light. Under normal circumstances, electrons are bound to atoms or molecules and oscillate in harmony with the frequency of the incoming light. As light intensity increases, the electrons are driven far from their equilibrium positions, causing the potential energy landscape of the material to appear anharmonic. This nonlinearity means the medium responds to the light in a way that generates new frequencies, effectively allowing the light to modify its own properties or the properties of the material through which it travels.

The mathematical representation of this is often expressed via the polarization expansion. When an intense electric field E interacts with a material, the total polarization P can be described as:

Common Phenomena in Nonlinear Optical Systems

The diversity of Nonlinear Optical effects is vast, and each phenomenon serves a unique purpose in scientific research and industrial applications. Among the most significant are:

Second-Harmonic Generation (SHG): Two photons of the same frequency are combined to create a single photon with twice the frequency (and half the wavelength). This is widely used in green laser pointers.
Sum-Frequency Generation (SFG): Two different laser beams interact to produce a third beam whose frequency is the sum of the two input frequencies.
Optical Kerr Effect: The refractive index of a material changes in response to the intensity of the light, leading to self-focusing of laser beams.
Four-Wave Mixing: A process where three incident photons interact to produce a fourth photon, crucial for wavelength division multiplexing in telecommunications.

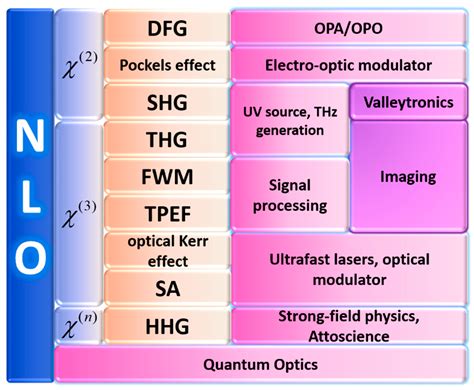

To better understand the hierarchy of these effects, the following table summarizes the relationship between the order of nonlinearity and typical applications:

Nonlinear Order	Physical Effect	Practical Application
1st Order	Linear Polarization	Standard Lenses and Prisms
2nd Order	Second Harmonic Generation	Laser Frequency Doubling
3rd Order	Kerr Effect / Raman Scattering	Optical Switching / Microscopy

Advancements in Materials Science

The efficiency of any Nonlinear Optical process is heavily dependent on the material used. Historically, crystals like lithium niobate (LiNbO₃) and potassium titanyl phosphate (KTP) have been the industry standards due to their robust second-order nonlinear coefficients. However, the push for miniaturization and integration into silicon photonics has driven researchers to explore new materials.

Thin-film lithium niobate, two-dimensional materials like graphene and transition metal dichalcogenides (TMDs), and organic polymers are currently at the forefront of research. These materials offer higher nonlinear coefficients, broader transparency ranges, and the ability to be integrated directly onto CMOS-compatible chips. By engineering these materials at the nanoscale, scientists can tailor their Nonlinear Optical response to suit specific applications, from ultrafast computing to quantum encryption.

💡 Note: When working with high-intensity laser sources, ensure proper laboratory safety protocols are followed, as nonlinear effects can occur unexpectedly and lead to damage to optical components or pose hazards to eyesight.

Applications in Modern Technology

The integration of Nonlinear Optical devices into daily life is more profound than most realize. In the telecommunications sector, nonlinear effects in optical fibers allow for the amplification of signals without the need for electronic regeneration, enabling high-speed internet across oceans. Furthermore, in the medical field, multiphoton microscopy—which relies on the Nonlinear Optical absorption of two or more photons—allows for high-resolution imaging of biological tissues deep within an organism without the phototoxicity associated with traditional high-energy UV excitation.

Another area seeing significant growth is quantum information science. Nonlinear Optical processes, such as spontaneous parametric down-conversion (SPDC), are essential for generating entangled photon pairs. These entangled photons are the foundational components for quantum computing, quantum key distribution, and secure communication networks. As we refine our control over these interactions, the transition from classical to quantum-enhanced optical systems becomes increasingly viable.

💡 Note: The efficiency of Nonlinear Optical frequency conversion can be significantly enhanced using photonic crystal waveguides or metasurfaces, which confine light to sub-wavelength volumes, effectively increasing the interaction length or intensity.

Future Perspectives and Challenges

Despite the immense potential, the field faces several challenges. Scaling Nonlinear Optical devices while maintaining high conversion efficiency remains difficult. Thermal management is also a critical issue, as high-intensity light can heat materials, causing them to lose their nonlinear properties or undergo structural damage. Additionally, manufacturing these devices at a low cost is necessary for widespread adoption in consumer electronics.
