Understanding the rhythm of your heart is fundamental to cardiovascular health, and the most common diagnostic tool used to visualize this activity is the electrocardiogram (ECG or EKG). A normal EKG strip serves as the baseline for assessing heart function, providing a visual representation of the heart's electrical impulses as they travel through the cardiac muscle. When you look at an EKG tracing, you are seeing a series of waves and intervals that reveal how well your heart is pumping, beating, and coordinating its contractions. For many, seeing a complex array of lines can be daunting, but by breaking down the components of a healthy heart rhythm, anyone can learn to recognize the markers of a standard, functioning heart.
What Exactly Is a Normal EKG Strip?

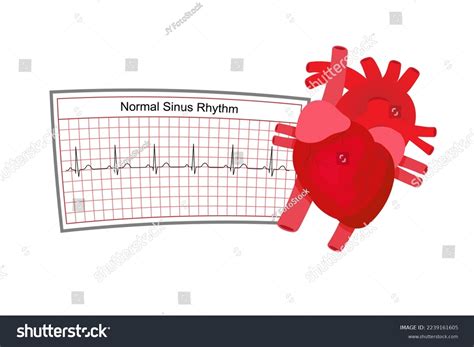

A normal EKG strip is formally known as a normal sinus rhythm. In medical terms, this indicates that the heart's electrical impulse originates in the sinoatrial (SA) node—the heart's natural pacemaker—located in the right atrium. From there, the impulse travels through the heart in a specific, orderly fashion, causing the atria to contract, followed by the ventricles.
When clinicians evaluate an EKG, they look for specific patterns of waves, segments, and intervals. These components must fall within standardized time frames and voltage amplitudes to be considered "normal." Any deviation from these patterns may suggest an arrhythmia, structural issue, or other cardiac condition.
The Anatomy of a Heartbeat on Paper
To understand what constitutes a normal EKG strip, you must understand the individual components of the tracing. Each heartbeat is represented by a sequence of specific waves:
- P Wave: This represents the electrical depolarization of the atria, signaling that they are contracting to push blood into the ventricles.
- QRS Complex: This series of three waves represents the depolarization of the ventricles, which are much larger and stronger than the atria. This contraction pumps blood out to the rest of the body.
- T Wave: This represents the repolarization of the ventricles, which is the "reset" phase where the heart muscle prepares for the next beat.
Standard Characteristics of a Healthy Heart Rhythm
Beyond the individual waves, a normal EKG strip must meet several specific criteria regarding heart rate, rhythm, and interval duration. These metrics allow healthcare providers to confirm that the heart is working efficiently.
| Metric | Standard Range for Normal EKG |
|---|---|
| Heart Rate | 60 to 100 beats per minute (BPM) |
| Rhythm | Regular (consistent distance between beats) |
| PR Interval | 0.12 to 0.20 seconds |
| QRS Duration | Less than 0.12 seconds |
💡 Note: While these ranges are standard for adults, athletes may have a resting heart rate lower than 60 BPM, which can still be considered a normal EKG strip depending on their overall cardiovascular health.
How to Read the Grid Paper
EKG paper is special graph paper that acts as a timer. Understanding how to read it is crucial to identifying a normal EKG strip. The paper moves through the machine at a standard speed of 25 mm/second.
- Horizontal Axis (Time): Each small square represents 0.04 seconds. A large square, which consists of 5 small squares, represents 0.20 seconds.
- Vertical Axis (Voltage): Each small square represents 0.1 millivolts (mV). This measures the strength of the electrical signal.
By measuring the horizontal distance between R-waves (the peak of the QRS complex), a clinician can determine if the heart rate is regular and if it falls within the expected parameters.
Common Misconceptions About EKG Readings
One of the most frequent misconceptions is that a normal EKG strip guarantees that you have a perfectly healthy heart. While a standard tracing indicates that the electrical conduction system is operating as expected, it does not always rule out underlying issues like coronary artery disease, structural heart problems, or issues that only appear under physical stress.
It is important to remember that an EKG provides a snapshot in time. If you experience symptoms such as chest pain, palpitations, or shortness of breath, an EKG might look completely normal if those symptoms aren't occurring at the exact moment the test is performed.
⚠️ Note: Always consult with a cardiologist or your primary care physician to interpret your EKG results. They will consider your clinical symptoms, family history, and other diagnostic tests in conjunction with the EKG strip.
Factors Influencing Your EKG Result
Even if you are healthy, several external factors can influence the appearance of your normal EKG strip. These include:
- Electrolyte Imbalances: Changes in levels of potassium, calcium, or magnesium can alter how electricity moves through the heart, potentially creating unusual wave patterns.
- Medications: Certain heart medications, antidepressants, and even some over-the-counter drugs can subtly change EKG intervals.
- Technical Issues: Poor placement of the electrodes (the sticky pads on your skin) or muscle movement (tremors or shivering) can cause "artifact," which is interference that makes the tracing look abnormal even if the heart is fine.
- Body Composition: An individual's weight, muscle mass, and chest shape can affect the voltage amplitude displayed on the EKG.
The Importance of Professional Interpretation
While learning the basics of a normal EKG strip is empowering, self-diagnosis should be avoided. Artificial intelligence and consumer-grade smartwatches are becoming better at identifying rhythms, but they still lack the clinical context a physician provides. A doctor assesses the morphology of every wave—the shape, the height, and the direction—to ensure no subtle abnormalities are missed.
A normal EKG strip is a foundational diagnostic tool that provides essential insights into the electrical health of your heart. By understanding the P-QRS-T complex, the importance of timing intervals, and the standard heart rate, you gain a clearer picture of how this vital organ functions. Remember that while this information helps demystify the EKG, it serves as a supplement to, not a replacement for, professional medical advice. Maintaining regular check-ups and discussing any concerns with your doctor remains the most effective strategy for managing your long-term cardiovascular well-being.
