Northstar Engine

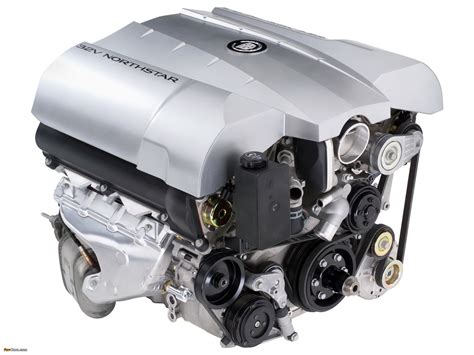

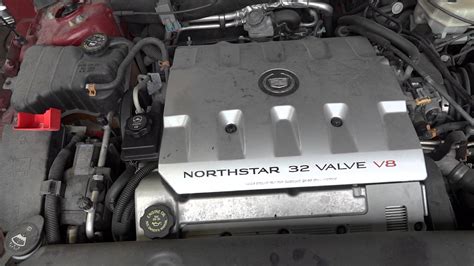

The Northstar engine remains one of the most polarizing and fascinating subjects in the history of General Motors' powertrain engineering. Introduced in the early 1990s, this high-performance, dual-overhead-cam V8 engine was designed to propel Cadillac into a new era of luxury and power, competing directly with high-performance European and Japanese imports. While it was hailed for its technical sophistication and impressive power output at launch, it ultimately garnered a reputation that haunts the used car market to this day. Understanding the legacy of this engine requires a deep dive into its innovative design, the mechanical hurdles it faced, and why it remains a topic of intense discussion among automotive enthusiasts.

Table of Contents

The Genesis of the Northstar Engine

In the late 1980s, Cadillac faced an existential crisis. The market was shifting toward vehicles that offered a blend of luxury and driving dynamics, and the traditional, pushrod-heavy V8 engines of the time were deemed inadequate for the changing tide. General Motors invested heavily in the Northstar engine project, tasking its engineers with creating a state-of-the-art, 32-valve, quad-cam V8 that could compete on the world stage. When it debuted in 1993 for the Allanté, followed by the Seville and Eldorado, it was a technological tour de force.

The design goals were ambitious: high specific output, exceptional refinement, and a "limp-home" mode enabled by a sophisticated cooling system. For a period, it seemed to succeed. The engine was praised for its smooth power delivery and rev-happy nature. However, the complexity of its design, specifically the choice of materials and the configuration of the engine block, would eventually lead to the notorious issues that defined its long-term reliability profile.

Technical Specifications and Innovations

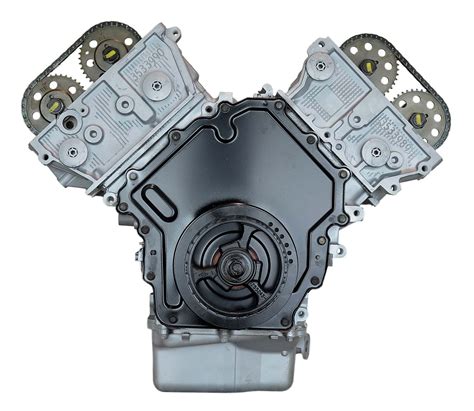

The Northstar engine was packed with cutting-edge features that were ahead of their time. It utilized an aluminum block and heads, which was essential for weight reduction and thermal management. The engine also featured a sophisticated electronic engine management system, which at the time was significantly more advanced than many of its competitors.

Key technical highlights included:

Dual Overhead Cams (DOHC): Allowed for 32 valves, improving breathing at high RPMs.
Aluminum Construction: Reduced overall weight, helping with front-to-rear weight balance.
Limp-Home Mode: An advanced feature that allowed the engine to run on four cylinders if it lost all coolant, preventing catastrophic failure by pumping air through the cylinders to cool them.
Direct Ignition System: Eliminated the traditional distributor, improving reliability of the spark delivery.

Here is a simplified comparison of the engine's evolution over its primary production run:

Feature	Early Versions (1993-1999)	Later Versions (2000-2011)
Block Design	Cast Aluminum	Refined Aluminum (Stronger)
Head Bolts	Short Length	Increased Length (Longer)
Reliability Focus	Performance-Oriented	Thermal Management Fixes

The Infamous Head Bolt Issue

No discussion about the Northstar engine is complete without addressing the elephant in the room: the head bolt failure. The engine block utilized a design where the head bolts threaded into the aluminum block. Over time, particularly when subjected to extreme thermal cycles, the threads in the aluminum block would pull out or strip entirely. This caused the head gasket to fail, leading to overheating, oil leaks, and eventually, total engine failure.

While GM engineers attempted to rectify this in later iterations—specifically by utilizing longer, stronger head bolts and reinforcing the block material—the reputation of the engine had already been severely damaged. Many owners faced repair bills that exceeded the value of their vehicles, leading to the early retirement of many otherwise luxurious and comfortable Cadillac models.

💡 Note: If you are considering buying a vehicle with a Northstar engine, check for evidence that the head studs have already been replaced with aftermarket inserts (such as Time-Serts or similar hardware), which effectively permanently solves the threading issue.

Maintenance and Long-Term Reliability

Beyond the head bolt issue, the Northstar engine was known for being demanding in terms of maintenance. Because of its complex packaging in the engine bay, even minor repairs could require significant labor time. For instance, removing an oil pan or addressing oil leaks often involved removing the engine from the subframe, a costly endeavor.

To keep an engine of this design running smoothly, owners must adhere to strict maintenance protocols:

Cooling System Care: Regular flushes are critical to prevent corrosion within the aluminum passages.
Oil Quality: Using the recommended synthetic oil is non-negotiable to maintain the fine tolerances of the overhead cams and hydraulic lifters.
Monitoring Temperatures: Utilizing an aftermarket OBDII scanner to monitor real-time coolant temperatures can help catch potential overheating issues before they cause permanent damage.

💡 Note: Do not overlook the importance of using the exact coolant specified by the manufacturer. Using the wrong type can accelerate the degradation of the head gaskets and internal sealing surfaces in these engines.

The Legacy of the Northstar Engine

Looking back, the Northstar engine represents a fascinating chapter in American automotive history. It was a bold attempt by General Motors to leapfrog European competition, and in terms of raw capability and engineering ambition, it succeeded. It brought 300 horsepower to the luxury sedan market when few domestic engines could boast such figures without resorting to forced induction.
