Whether you are a seasoned machinist, a dedicated hobbyist, or just starting your journey in metalworking, understanding the nuances of Number Drill Sizes is essential for precision engineering. Unlike fractional drill bits, which increase in increments of 1/64th of an inch, number drills provide a much finer level of granularity. This system, officially known as the "Number Drill Gauge," was developed to provide specific diameters tailored for various tapping requirements and clearance needs, allowing for much tighter tolerances in assembly and fabrication.
The Evolution of Number Drill Sizes
The standard system for number drills ranges from #80 to #1. Interestingly, as the number itself gets smaller, the actual diameter of the drill bit increases. The smallest drill in this series, the #80, measures a tiny 0.0135 inches, while the #1 drill measures 0.2280 inches. This reverse-counting method often confuses beginners, but it serves a vital purpose in mechanical drafting and manufacturing, where precise hole sizes are non-negotiable for success.
Historically, this system emerged alongside the rise of the Industrial Revolution, where the need for standardized hole dimensions for screws and fasteners became critical. Because fractional bits left too much gap or required too much material removal for modern threading, the Number Drill Sizes were codified to provide the perfect "drill-to-tap" ratio for standard machine screws.
Why Precision Matters in Machining
Using the wrong drill size can be catastrophic for a project. If a hole is too large, the threads of a bolt will not have enough material to "bite" into, leading to a loose or stripped connection. If the hole is too small, the tap may snap off inside the workpiece, which is often a permanent, project-ending mistake. By utilizing the correct Number Drill Sizes, you ensure that the tap has the optimal amount of material to form strong, durable threads.
- Better Thread Engagement: Proper sizing ensures that your fasteners hold securely under load.
- Reduced Tool Wear: Choosing the right size reduces the strain on your taps and bits, extending the life of your equipment.
- Consistency: Standardized sizing allows for repeatable results across mass-produced parts or intricate custom builds.
- Material Efficiency: Precise drilling prevents waste and minimizes the need for reworking holes that were bored incorrectly.
Reference Table for Common Number Drill Sizes

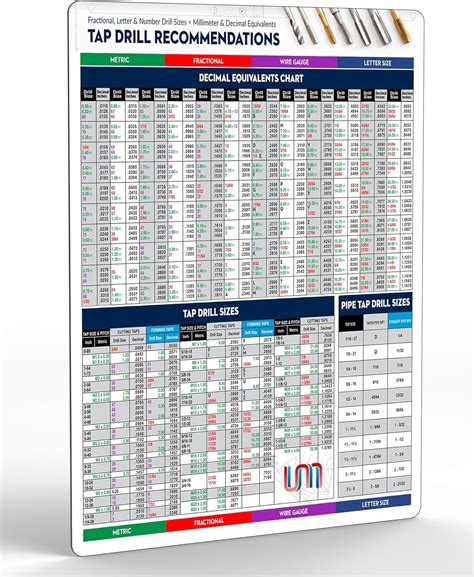

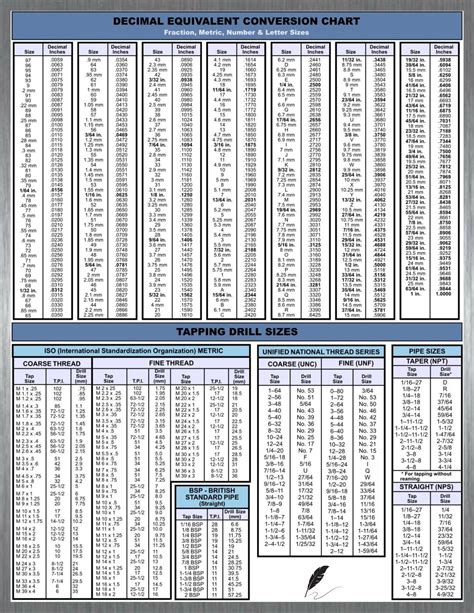

To help you navigate these dimensions, the following table lists several frequently used drill sizes. It is always a good idea to keep a printed chart of Number Drill Sizes near your lathe or drill press for quick reference.
| Drill Number | Diameter (Inches) | Common Application |
|---|---|---|
| #80 | 0.0135 | Ultra-fine precision work |
| #60 | 0.0400 | Small electronics and fine hobby work |
| #43 | 0.0890 | Common clearance for small fasteners |
| #29 | 0.1360 | Standard size for 8-32 machine screws |
| #7 | 0.2010 | Common for 1/4-20 threading applications |
| #1 | 0.2280 | Heavy-duty fasteners |
⚠️ Note: Always double-check your material hardness against the manufacturer’s recommendations, as hardened steels may require pilot holes even when using the correct number drill.
Selecting the Right Drill for Tapping
When you are preparing to tap a hole, the "tap drill size" is the most important measurement you will ever work with. The goal is to drill a hole that leaves enough material for the tap to cut, but not so much that the torque required to turn the tap exceeds the shear strength of the tool. Most engineers use a "75% thread engagement" rule of thumb, which represents the ideal balance between strength and ease of tapping.
For those working with aluminum, brass, or mild steel, adhering strictly to a Number Drill Sizes chart is generally enough. However, when working with exotic alloys or plastics, you may need to adjust your drill choice slightly to compensate for material "spring-back" or expansion due to heat. Always test your drill size on a scrap piece of material before diving into your primary workpiece.
💡 Note: Use cutting fluid or oil when drilling to keep the temperature down and ensure the hole diameter remains accurate throughout the process.
Maintaining Your Drill Bits
Even if you own the full set of Number Drill Sizes, they are useless if they are dull or broken. Small number drills are notoriously fragile, especially those in the #60–#80 range. When using these tiny bits, it is vital to keep your drill press speed high and your feed rate extremely light. If you try to force a small drill, it will almost certainly snap.
Furthermore, ensure that your drill chuck is properly aligned. Any "runout" or wobble in the chuck will result in an oversized hole, rendering your carefully selected Number Drill Sizes ineffective. Periodic inspection of your drill bits for chipped cutting edges will save you countless hours of frustration and prevent damage to your projects.
Final Thoughts on Hole Accuracy
Mastering the use of Number Drill Sizes is a hallmark of a serious craftsman. By moving beyond simple fractional measurements and embracing the precision offered by the numbered system, you open the door to professional-grade results in your workshop. Remember that accuracy starts with preparation; having the right tool for the job, understanding the material you are working with, and respecting the delicate nature of small-diameter drilling are the keys to success. Whether you are building complex models or structural assemblies, relying on established charts and proper technique ensures your threads are tight, your clearances are precise, and your projects stand the test of time.
