Understanding the fundamental relationship between voltage, current, and resistance is the cornerstone of electrical engineering and basic electronics troubleshooting. Whether you are a seasoned electrician, a hobbyist tinkerer, or a student just beginning to explore the world of circuits, you will inevitably encounter the need to calculate electrical values. This is where the Ohms Law Wheel becomes an indispensable tool. By consolidating complex algebraic rearrangements into a visual, easy-to-read format, this diagram allows anyone to instantly determine how power, voltage, current, and resistance interact within a closed circuit.
What is the Ohms Law Wheel?

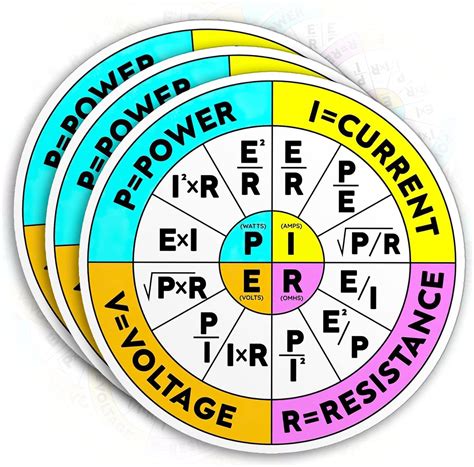

The Ohms Law Wheel is a circular infographic that visually represents all the possible mathematical combinations of Ohm’s Law and the Power Formula. In a standard circuit, you are often given two known values (such as voltage and resistance) and need to find a third (current). Instead of manually rearranging algebraic equations, the wheel provides these formulas at a glance.
The circle is typically divided into four quadrants, with each representing a primary electrical property:
- V (Voltage): Measured in Volts (V)
- I (Current): Measured in Amperes (A)
- R (Resistance): Measured in Ohms (Ω)
- P (Power): Measured in Watts (W)
By identifying the value you want to solve for, you can locate the specific quadrant containing the formula that uses your two known variables.
The Mathematical Foundation
At its core, the Ohms Law Wheel simplifies the relationship between these four variables. Ohm’s Law states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to the resistance. When you add the Power formula to this, you create a complete set of equations that cover almost every scenario encountered in DC circuits.
The formulas found within the wheel are categorized based on what you are trying to calculate. For instance, if you are looking to find Power, you can use one of several combinations depending on which two values you already have available from your multimeter or circuit design plan.
| Find | Known Values | Formula |
|---|---|---|
| Voltage (V) | I and R | V = I × R |
| Current (I) | V and R | I = V / R |
| Resistance (R) | V and I | R = V / I |
| Power (P) | V and I | P = V × I |
| Power (P) | I² and R | P = I² × R |
💡 Note: Always ensure your units are converted to the base unit (Volts, Amperes, Ohms, Watts) before plugging them into these formulas to avoid significant calculation errors.
Why Every Technician Needs This Diagram
Efficiency in electrical work is not just about knowing the math; it is about speed and accuracy. When working in the field, you might be troubleshooting a faulty heating element or sizing a wire for a specific load. Using the Ohms Law Wheel eliminates the “brain fog” that occurs when dealing with complex multi-variable equations.
Consider the benefits of utilizing this tool:
- Reduced Error: Manual transposition of variables often leads to simple arithmetic errors. The wheel keeps the relationships fixed.
- Troubleshooting Speed: When a fuse blows repeatedly, you can quickly calculate the expected current draw and compare it to the actual load.
- Educational Reinforcement: Repeatedly using the wheel helps beginners memorize the relationships between power and resistance, eventually making the math intuitive.
How to Use the Diagram Effectively
To use the Ohms Law Wheel, follow these simple steps:
- Identify the Unknown: Determine which value you are searching for (V, I, R, or P).
- Identify the Knowns: Look at your circuit and see which two values you have already measured or were provided in the circuit design.
- Select the Segment: Locate the quadrant on the wheel dedicated to your unknown value.
- Apply the Formula: Within that quadrant, select the specific formula that matches your two known values.
⚠️ Note: If you are working with AC (Alternating Current) circuits that contain inductive or capacitive loads, simple resistive Ohm’s Law may not be sufficient. You must account for impedance (Z) rather than just simple resistance.
Common Applications in Modern Electronics
The utility of the Ohms Law Wheel extends far beyond simple classroom exercises. It is essential in automotive electrical repair, where low-voltage, high-current circuits are standard. Technicians use it to calculate the correct wire gauge to prevent overheating. In residential applications, it helps electricians ensure that the current draw of household appliances does not exceed the capacity of the circuit breaker.
Furthermore, in the realm of hobbyist electronics, such as building LED circuits or Arduino projects, calculating the exact resistor needed to prevent an LED from burning out requires a basic understanding of these relationships. By utilizing the Ohms Law Wheel, you can ensure that your components operate within their safe parameters, extending the lifespan of your electronic devices significantly.
Mastering the application of the Ohms Law Wheel provides a reliable shortcut for anyone involved in electrical diagnostics or design. By visualizing the relationships between power, voltage, current, and resistance, you gain the ability to troubleshoot circuits with much greater confidence and precision. Whether you are dealing with simple battery-powered devices or complex electrical systems, these fundamental equations serve as the bedrock of your work. By keeping this visual aid handy, you ensure that you can quickly determine the required values for any circuit scenario, ultimately leading to safer, more efficient, and more effective electrical repairs or installations. As you continue to work with these principles, the math will become second nature, allowing you to focus more on the creative and functional aspects of your projects rather than getting bogged down in repetitive calculations.
