Open Book Fracture Pelvis

An open book fracture pelvis is a medical emergency that occurs when the pelvic ring is disrupted, typically due to high-energy trauma such as a motor vehicle accident or a fall from a significant height. This injury is technically classified as an anteroposterior compression (APC) fracture. The term "open book" describes the way the pelvic bones pull apart like the pages of a book being opened, which results in the pubic symphysis widening. Because the pelvis protects vital organs, major blood vessels, and nerves, this type of fracture carries a high risk of life-threatening internal hemorrhage and requires immediate specialized care.

Understanding the Mechanics of an Open Book Fracture Pelvis

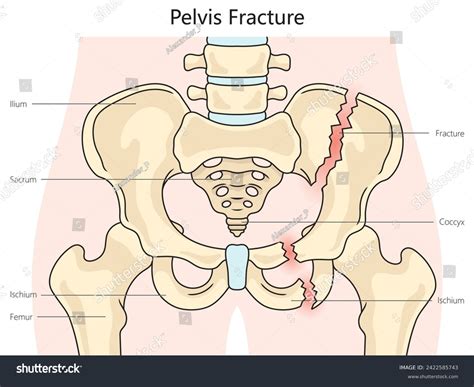

The human pelvis is a strong, ring-shaped structure that supports the upper body and protects the pelvic viscera. When a massive force is applied to the front of the pelvis, it causes the pubic symphysis to separate. This disruption of the pelvic ring can occur in various degrees, classified by the Young-Burgess system, which assesses the severity of the damage based on the mechanism of injury.

• APC Type I: Slight widening of the pubic symphysis (usually less than 2.5 cm). The pelvic ring remains relatively stable.
• APC Type II: Greater widening of the symphysis (greater than 2.5 cm) along with a disruption of the sacrospinous and sacrotuberous ligaments. The pelvis becomes rotationally unstable but vertically stable.
• APC Type III: Complete disruption of the pelvic ring, including both the pubic symphysis and the sacroiliac joint. This results in both rotational and vertical instability, which is highly dangerous.

Recognizing the Symptoms and Clinical Presentation

Identifying an open book fracture pelvis early is critical for patient survival. Patients presenting with this injury often show signs of extreme pain in the groin, hips, or lower back. Because of the force required to break the pelvic ring, other injuries are frequently present, such as abdominal trauma or internal bleeding.

Clinical signs often observed by emergency responders and medical staff include:

• Visible or palpable deformity in the pelvic region.
• Obvious instability of the pelvic ring upon physical examination.
• Signs of hypovolemic shock, such as tachycardia, low blood pressure, and pale, clammy skin.
• Bruising or swelling around the perineum or scrotum.
• Inability to walk or bear weight.

Emergency Stabilization Procedures

When a suspected open book fracture pelvis is encountered, the priority is to close the “book.” By stabilizing the pelvis, the volume of the pelvic cavity is reduced, which helps to tamponade bleeding from the fractured bone ends and the underlying venous plexus. The immediate use of a pelvic binder is the gold standard for field stabilization.

Steps for initial stabilization often include:

1. Manual Stabilization: Avoid internal or external rotation of the legs, as this can worsen the fracture.
2. Application of a Pelvic Binder: Position the binder over the greater trochanters of the femur, not the iliac crests, to ensure optimal compression.
3. Fluid Resuscitation: Administering IV fluids or blood products to maintain hemodynamic stability while the patient is transported to a trauma center.
4. Imaging: An X-ray or CT scan is performed upon arrival to assess the exact extent of the pelvic ring disruption.

⚠️ Note: Over-tightening a pelvic binder can cause injury to the skin or femoral nerve; ensure the device is placed correctly over the bony prominences of the hips to provide support without causing secondary damage.

Surgical Interventions and Treatment Pathways

Once the patient is hemodynamically stable, orthopedic surgeons will determine the definitive treatment plan. While some minor fractures may heal with conservative management, most open book fracture pelvis cases require surgical fixation to restore the structural integrity of the pelvic ring.

Common surgical approaches include:

• Anterior Fixation: Plating the pubic symphysis to close the gap.
• Posterior Fixation: Using screws or plates to stabilize the sacroiliac joints if they are involved.
• External Fixation: Used in acute settings when internal surgery is not immediately possible due to the patient’s overall condition.

Rehabilitation and Recovery Expectations

Recovery from a major pelvic injury is a long process that requires a multidisciplinary approach. Physical therapy begins as soon as the patient is cleared for movement, focusing on range-of-motion exercises and gradual weight-bearing under the guidance of a specialist. Long-term follow-ups are essential to monitor for complications such as chronic pain, nerve damage, or gait abnormalities.

The journey toward recovery often involves:

• Pain management protocols to ensure comfort during early mobilization.
• Strengthening the core and lower extremities to support the pelvis.
• Psychological support, as major trauma can often result in post-traumatic stress or anxiety.

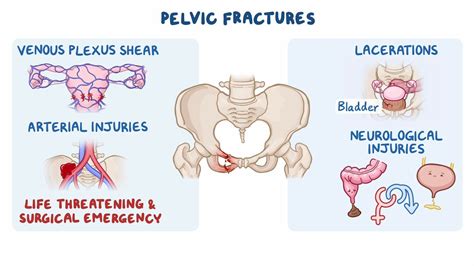

Managing an open book fracture pelvis requires swift recognition, expert stabilization, and comprehensive surgical care. Because of the high volume of blood vessels passing through the pelvis, the primary threat remains internal hemorrhage, making rapid transport to a Level I trauma center the most vital component of patient survival. Through advanced orthopedic techniques and rigorous physical rehabilitation, many patients are able to regain significant function and mobility, though the severity of the initial injury will dictate the long-term prognosis. Prioritizing pelvic stabilization and hemodynamic monitoring remains the standard of care for ensuring the best possible outcome for patients affected by these devastating injuries.
