The automotive and heavy-duty propulsion industries are perpetually searching for ways to improve thermal efficiency, reduce emissions, and shrink the physical footprint of combustion power plants. Among the various technologies vying for dominance, the Opposed Piston Engine has re-emerged as a sophisticated, high-efficiency candidate capable of challenging the conventional four-stroke cycle. Unlike standard engines that rely on a single piston moving within a cylinder against a fixed cylinder head, the opposed piston design utilizes two pistons moving toward each other within a single cylinder, effectively eliminating the cylinder head and the thermal losses associated with it.
The Fundamental Architecture of the Opposed Piston Engine

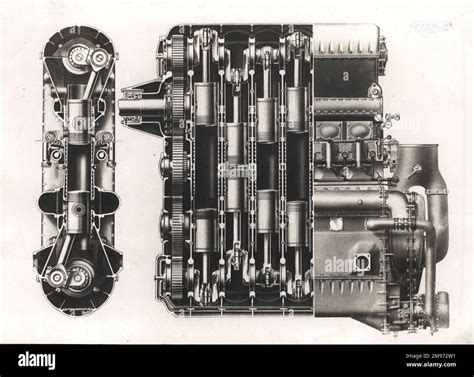

At its core, the Opposed Piston Engine is a marvel of mechanical simplicity combined with thermodynamic complexity. By placing two pistons in a single cylinder—one at the top and one at the bottom—the combustion event occurs in the center of the cylinder. This design choice fundamentally changes how gas exchange is managed. Since there are no valves or a cylinder head, the engine relies on port-controlled scavenging, where the pistons themselves open and close intake and exhaust ports as they travel.
The primary architectural benefits include:
- Reduced Heat Loss: Without a cylinder head, there is less surface area for heat to escape, keeping energy inside the combustion chamber where it can do work.
- Improved Mechanical Efficiency: By eliminating valve trains, camshafts, and cylinder head hardware, the engine reduces parasitic losses significantly.
- Higher Power Density: The ability to perform a power stroke every revolution (in a two-stroke configuration) allows for a smaller, lighter engine to produce the same power as a much larger four-stroke counterpart.
Comparing Opposed Piston vs. Conventional Four-Stroke Engines
To understand why engineers are revisiting this vintage concept, it is helpful to look at how it stacks up against the modern standard. The following table highlights the key differences that define the performance characteristics of these two designs.
| Feature | Opposed Piston Engine | Conventional 4-Stroke |
|---|---|---|
| Valve Train | None (Port Scavenged) | Complex (Valves/Cams) |
| Thermal Efficiency | High (Less heat rejection) | Moderate |
| Cylinder Head | Absent | Present |
| Power Cycles | 2-Stroke | 4-Stroke |
Overcoming Challenges in Combustion and Emissions
Despite its efficiency, the Opposed Piston Engine historically struggled with oil consumption and stringent emissions standards. Because two-stroke designs typically relied on crankcase scavenging, they were prone to burning lubricant. Modern iterations have solved this by using specialized oil control rings and independent lubrication systems for the power cylinders, ensuring that the engine meets modern environmental benchmarks.
Furthermore, the combustion process is highly controlled. Because the pistons move synchronously, the center-point ignition creates a very stable flame front. This stability allows for the use of various fuels, including hydrogen, natural gas, and synthetic e-fuels, making the design future-proof in an era of decarbonization.
⚠️ Note: Proper maintenance of the sleeve-port timing and oil injection system is critical to the longevity of an opposed piston power unit. Failure to monitor oil consumption can lead to carbon buildup within the exhaust ports, which severely restricts airflow.
Applications in Modern Industry
While passenger cars dominated the four-stroke market for decades, the Opposed Piston Engine is finding its niche in heavy-duty sectors where efficiency translates directly to profitability. Large-scale marine vessels, power generation plants, and defense vehicles are the current primary beneficiaries. In these applications, the weight-to-power ratio is crucial. A smaller engine footprint allows for more cargo space in ships or more armor/payload in combat vehicles, all while consuming significantly less fuel per megajoule produced.
Thermal Management and Cooling Innovations
Heat rejection is a major factor in any internal combustion design. In the opposed piston configuration, the cylinder liner is exposed to the combustion event on both ends, but because the central area lacks water-jacketed cylinder heads, the cooling demands are focused on the central barrel. Innovative coolant gallery designs have allowed engineers to maintain optimal temperature control, preventing hot spots and ensuring structural integrity even during high-load operations.
Efficiency gains are also realized through the reduction of pumping losses. By utilizing a blower or turbocharger to push air through the ports, the engine avoids the energy-intensive process of driving a valve train against heavy spring pressures. This is a primary driver behind the 10-15% increase in total thermal efficiency compared to traditional diesel powerplants of the same displacement.
💡 Note: Always ensure that the induction system (turbocharger or supercharger) is correctly sized for the specific scavenging requirements of the port design. Insufficient air pressure will result in incomplete clearing of exhaust gases, leading to power degradation.
Future Outlook for Reciprocating Power
As the world transitions toward electrification, the role of internal combustion is shifting toward hybrid systems. The Opposed Piston Engine is arguably the best “range extender” or “generator” engine for these systems. Because it can operate at a very steady, high-efficiency RPM range, it is ideal for keeping batteries charged in long-haul trucks or maritime vessels. Its vibration characteristics are also naturally balanced, as the two pistons moving in opposite directions counteract each other, leading to a much smoother running engine than a conventional single-bank design.
Research is currently focused on leveraging artificial intelligence to manage injection timing and port opening duration in real-time. By dynamically adjusting the scavenging process, the engine can adapt to varying fuel qualities and atmospheric conditions, ensuring that emissions remain low regardless of the operational environment.
The resurgence of this engine architecture represents a paradigm shift in mechanical engineering, proving that sometimes the best path forward involves re-evaluating long-lost innovations. By stripping away the unnecessary complexity of the poppet-valve system and focusing on the pure thermodynamic potential of the combustion chamber, the opposed piston design offers a clear roadmap toward a more sustainable future. Whether it is powering the massive freight ships that traverse our oceans or serving as the quiet, high-efficiency backbone of hybrid heavy-duty vehicles, this engine design remains a cornerstone of innovation. Its ability to achieve higher efficiency, lower emissions, and superior power-to-weight ratios cements its place as a critical technology in the transition away from fossil-fuel dependence, demonstrating that the future of power generation is as much about mechanical elegance as it is about advanced materials and control systems.
