If you are a Chevy owner, you may have experienced the frustration of your check engine light suddenly illuminating while driving. One of the most common and concerning diagnostic trouble codes associated with General Motors vehicles is the P0016 Chevy code. This error specifically points toward a correlation issue between your engine’s crankshaft and camshaft. Essentially, the engine control module (ECM) has detected that the mechanical timing between these two critical components is out of sync, which can lead to poor performance, rough idling, and potentially severe internal engine damage if left unaddressed.
Understanding the P0016 Chevy Diagnostic Code

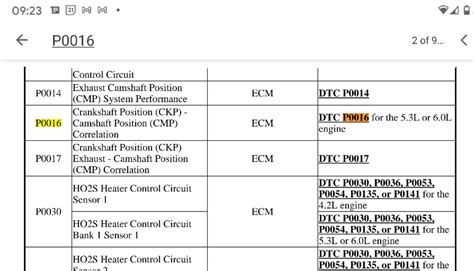

The P0016 Chevy fault code stands for "Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)." To understand why this happens, we must look at how an internal combustion engine functions. The crankshaft dictates the movement of the pistons, while the camshaft controls the opening and closing of the intake and exhaust valves. For the engine to run efficiently, these two components must be perfectly synchronized. The ECM uses sensors on both the crankshaft and the camshaft to monitor this synchronization in real-time. When the signals from these two sensors do not align with the factory-programmed parameters, the computer sets this code.
Common symptoms that accompany this specific code include:
- Significant loss of engine power and sluggish acceleration.
- A noticeable rough or erratic idle.
- Hard starting or engine stalling.
- Decreased fuel economy.
- The check engine light staying illuminated or flashing under load.
Common Causes of the P0016 Fault
Diagnosing a P0016 Chevy error requires a systematic approach, as the cause can range from a simple electrical glitch to a major mechanical failure. Because Chevy engines—particularly the Ecotec and V6 variants—rely heavily on oil pressure for timing adjustments, the root cause is frequently related to maintenance.
Key triggers for this code often include:
- Stretched Timing Chain: This is a notorious issue in many high-mileage Chevy engines, where the timing chain physically stretches, causing the timing to lag.
- Low Oil Level or Poor Oil Quality: VVT (Variable Valve Timing) solenoids depend on clean, pressurized oil to function. Dirty oil can clog these solenoids, leading to timing errors.
- Faulty Camshaft/Crankshaft Sensors: Occasionally, the sensor itself fails or provides an erratic signal, tricking the ECM into thinking there is a mechanical timing issue.
- Damaged Timing Chain Tensioners: If the tensioner fails, the chain loses its proper guidance, leading to "slop" in the timing assembly.
Diagnostic Comparison Table
| Component | Typical Failure Sign | Diagnostic Method |
|---|---|---|
| Camshaft Sensor | Intermittent signal | Oscilloscope / Voltmeter |
| VVT Solenoid | Sluggish timing advance | Resistance test / Inspection |
| Timing Chain | Physical stretch | Cam/Crank alignment test |
| Engine Oil | Low pressure/Sludge | Check level and viscosity |
⚠️ Note: Always check your engine oil level and condition as your very first step. Many P0016 codes are cleared simply by performing a high-quality oil change, as low oil pressure prevents the Variable Valve Timing system from engaging correctly.
Steps to Troubleshoot and Repair
Before rushing into an expensive engine tear-down, perform a logical diagnostic process. Start with the electrical and oil-related components, as these are the most cost-effective to repair. If the code persists after these checks, you may need to inspect the mechanical timing assembly.
1. Check Oil Pressure and Level
Ensure the oil is at the correct level and that it is not excessively dirty. If the oil is thick with sludge, it cannot properly lubricate or operate the VVT components. Use the oil weight recommended by your owner’s manual.
2. Inspect Variable Valve Timing (VVT) Solenoids
The VVT solenoids are often located on the cylinder head. Remove them and check for debris or screen clogging. If the screens are blocked, the oil flow to the camshaft phasers will be restricted, causing the P0016 Chevy code to trigger.
3. Test the Sensors
Use a diagnostic scanner to check for “live data.” Observe the camshaft and crankshaft sensor values while the engine is running. If one sensor shows an erratic signal while the other remains steady, the sensor in question is likely faulty and requires replacement.

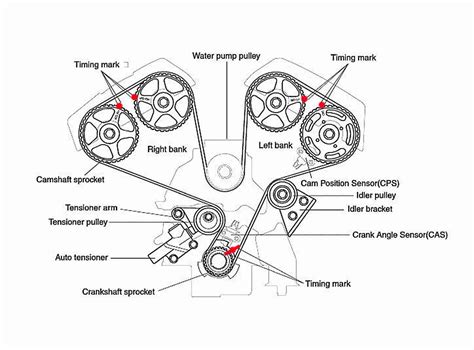

4. Mechanical Timing Verification
If the sensors and oil system are in perfect working order, the issue is likely mechanical. You will need to remove the timing cover to inspect the chain and tensioners. Look for signs of chain stretch or damaged guides. In many modern Chevy models, a “stretch” of even a few millimeters is enough to trigger a persistent check engine light.
💡 Note: If you find that the timing chain has stretched, it is highly recommended to replace the entire timing kit, including guides, tensioners, and sprockets, rather than just replacing the chain itself. This ensures the longevity of your repair and prevents a re-occurrence of the P0016 code.
Preventing Future Timing Issues
Preventing a reoccurrence of this code is largely about strict maintenance. Chevy engines, especially those with turbochargers or direct injection, are extremely sensitive to oil quality. Because the timing chain relies on oil pressure to stay tensioned, using a high-quality synthetic oil and sticking to a 5,000-mile interval is the best insurance policy against timing-related diagnostic codes.
Furthermore, if you notice the engine beginning to sound like it has a "rattle" during a cold start, do not ignore it. This is often the sound of a failing timing chain tensioner. Addressing the rattle early can save you thousands of dollars in potential engine internal damage, as a snapped timing chain can lead to piston-to-valve contact, which essentially destroys the engine.
Dealing with a P0016 code requires patience and a methodical approach. By narrowing down the possibilities from the simplest causes—like engine oil and sensor integrity—to more complex mechanical failures, you can effectively resolve the issue and restore your vehicle’s performance. Remember that while this code is serious, it is not a death sentence for your engine, provided you act quickly and use proper diagnostic steps to identify the underlying cause. Keeping your oil clean, monitoring for engine sounds, and addressing sensor faults promptly will keep your Chevy running smoothly for many miles to come.
