Understanding rotational dynamics is a fundamental pillar of physics and engineering, particularly when analyzing how rigid bodies behave under torque. One of the most essential concepts in this field is the Parallel Axis Theorem. Whether you are an undergraduate engineering student, a mechanical designer, or someone deeply interested in classical mechanics, grasping this theorem is crucial for calculating the moment of inertia for objects rotating about an axis that does not pass through their center of mass. By providing a direct relationship between the moment of inertia about the center of mass and any other parallel axis, this theorem simplifies complex structural calculations, making it an indispensable tool for analyzing everything from flywheels to rotating machinery components.
What is the Parallel Axis Theorem?

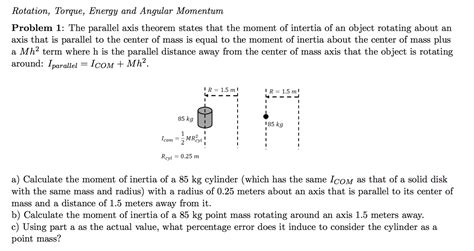

The Parallel Axis Theorem (often called the Huygens-Steiner theorem) states that the moment of inertia ($I$) of a rigid body about any axis is equal to the moment of inertia about a parallel axis passing through the body's center of mass ($I_{cm}$), plus the product of the mass of the body ($M$) and the square of the distance ($d$) between the two axes. Mathematically, it is expressed as:
I = Icm + Md2
This simple yet powerful equation allows engineers to determine how hard it is to rotate an object about a specific pivot point, even if that point isn't the natural center of rotation. Without this theorem, you would be forced to use complex calculus (volume integrals) for every new rotation point you encounter. With it, you only need to know the center of mass inertia—which is well-documented for standard shapes—and apply the shift formula.
Core Components of the Formula
To apply the theorem correctly, you must be precise with the variables. Each component represents a specific physical characteristic of the rigid body:
- I (Moment of Inertia): The resistance of the body to rotational acceleration about the new, arbitrary axis.
- Icm (Center of Mass Inertia): The resistance to rotation about an axis passing specifically through the geometric or mass center.
- M (Mass): The total mass of the object, usually expressed in kilograms (kg).
- d (Distance): The perpendicular distance separating the center-of-mass axis and the new axis of rotation.
⚠️ Note: The theorem only holds true if the two axes are perfectly parallel. If the axes are tilted at an angle, you must utilize the full inertia tensor, which involves much more complex linear algebra.
Practical Applications in Engineering
Engineers use the Parallel Axis Theorem across various disciplines. For instance, in automotive engineering, designers must calculate the moment of inertia of engine parts like connecting rods or crank shafts. Since these parts don't rotate around their center of mass, the theorem is used to quickly determine their rotational resistance, which directly affects the engine’s vibration and performance.
Another classic example involves rotating doors or swinging gates. If you know the moment of inertia of a door about its center, you can use the theorem to determine how much force is needed to rotate it about the hinge, simply by knowing the distance from the center of the door to the hinge.
Comparison of Moments of Inertia for Standard Shapes
Below is a quick reference table showing how the theorem can be applied to standard geometries to find the inertia about an edge, rather than the center.
| Shape | Axis of Rotation | Formula ($I$) |
|---|---|---|
| Thin Rod (Length L) | Center | (1/12)ML2 |
| Thin Rod (Length L) | End | (1/3)ML2 |
| Solid Disk (Radius R) | Center | (1/2)MR2 |
| Solid Disk (Radius R) | Edge | (3/2)MR2 |
💡 Note: For the thin rod rotated at the end, the distance d is L/2. Substituting this into I = Icm + Md2 gives (1/12)ML2 + M(L/2)2, which simplifies perfectly to (1/3)ML2.
Limitations and Common Pitfalls
While the Parallel Axis Theorem is highly versatile, it is important to remember its boundaries. First, it is strictly applicable to rigid bodies. If an object is elastic and changes shape significantly while rotating, the center of mass and the mass distribution may change, rendering the constant inertia value incorrect. Second, users often make the mistake of choosing an arbitrary axis that is not parallel to the center-of-mass axis. Always verify the spatial orientation before performing the calculation.
Furthermore, for 3D objects, understanding the Perpendicular Axis Theorem can complement your work. However, remember that the Perpendicular Axis Theorem only applies to planar (flat) objects, whereas the Parallel Axis Theorem is universal for any 3D rigid body as long as the parallel condition is met.

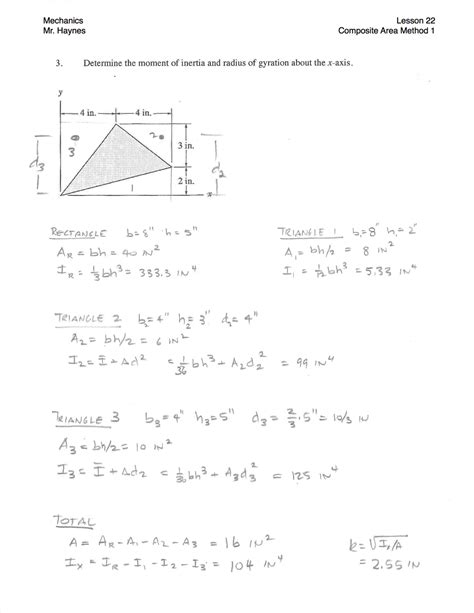

How to Calculate Effectively
When approaching a problem involving rotational dynamics, follow these logical steps to ensure accuracy:
- Identify the Axis of Rotation: Clearly mark the axis you are analyzing.
- Locate the Center of Mass: Determine where the center of mass of your object lies.
- Measure the Distance (d): This must be the perpendicular distance between the parallel axes.
- Look up the Standard Inertia: Refer to standard tables for the moment of inertia about the center of mass for that specific shape.
- Execute the Formula: Sum the components and ensure units are consistent (usually kg·m2).
By breaking the problem down into these manageable segments, you reduce the likelihood of arithmetic errors and gain a deeper understanding of the physical system you are modeling. Whether you are optimizing a machine part or simply solving a textbook problem, the consistency of this method remains the golden standard in classical mechanics.
Mastering the application of this theorem serves as a gateway to more advanced topics in dynamics, such as the use of the inertia tensor and rigid body rotation in three dimensions. While modern computer-aided design software can calculate moments of inertia automatically, a strong grasp of the underlying physics allows engineers to troubleshoot simulations, verify results, and innovate more effectively. By bridging the gap between theoretical center-of-mass calculations and real-world rotational pivots, the Parallel Axis Theorem remains a fundamental and time-saving tool in the mechanical sciences.
