Parts Of A Transmission

Understanding the mechanical heart of your vehicle can be a daunting task, especially when you pop the hood and gaze at the complex assembly of gears, valves, and shafts. The transmission is arguably one of the most critical components in your car, acting as the bridge between your engine’s raw power and the wheels that move you down the road. If you have ever wondered what makes your vehicle shift gears smoothly or accelerate with precision, you are essentially asking about the parts of a transmission. Whether you drive an automatic or a manual, the transmission system is a masterpiece of engineering that relies on a symphony of individual parts working in perfect harmony.

Table of Contents

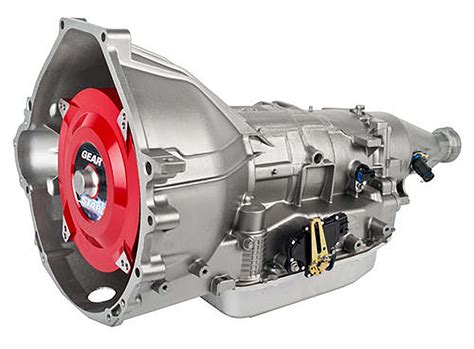

The Core Components of an Automatic Transmission

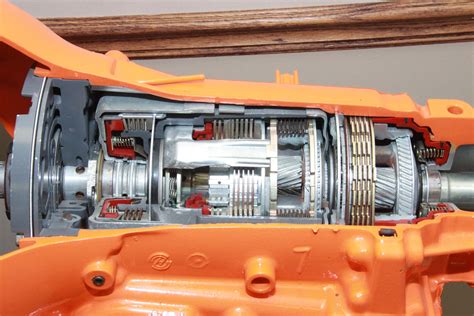

Automatic Transmission Internal Gears

Unlike a manual transmission that requires a clutch and gear stick, an automatic transmission uses a sophisticated hydraulic system to manage gear changes. The parts of a transmission in an automatic vehicle are designed to handle pressure, friction, and heat simultaneously. Here are the primary components that keep your car shifting seamlessly:

Essential Parts of a Manual Transmission

Manual Transmission Gearbox

For those who prefer a more tactile driving experience, a manual transmission offers a simpler, yet equally intricate, set of components. The parts of a transmission in a manual setup are focused on direct mechanical interaction between the driver and the drivetrain. Key components include:

Clutch Assembly: This includes the pressure plate, clutch disc, and release bearing. It engages and disengages the engine from the transmission.
Input Shaft: Receives power directly from the engine through the clutch.
Output Shaft: Transfers the power from the gear train to the driveshaft and, ultimately, the wheels.
Synchronizers: These clever devices match the speed of the gear you are shifting into with the speed of the output shaft, preventing gear grinding and ensuring smooth engagement.
Gear Selector Fork: Controlled by your gear stick, these forks slide the gear collars into place to lock specific gears to the output shaft.

Comparison of Transmission Components

To help visualize the differences between the two primary transmission types, the table below outlines the functional differences in their key components.

Component	Automatic Role	Manual Role
Power Transfer	Torque Converter	Clutch Assembly
Gear Selection	Valve Body/Hydraulics	Shift Linkage/Forks
Speed Matching	Automatic/Fluid-based	Synchronizers
Lubrication	Pressurized Pump	Splash Lubrication

The Role of Transmission Fluid and Filters

Regardless of the type of transmission, fluid is the lifeblood of the entire system. Without proper lubrication, the internal metal parts of a transmission would generate excessive friction, leading to rapid wear and catastrophic failure. Transmission fluid also acts as a hydraulic medium and a coolant.

Additionally, the transmission filter is an often-overlooked component. It sits within the transmission housing and is tasked with trapping debris, metal shavings, and sludge that accumulate over time. Neglecting to change the fluid and filter can lead to clogged valves and erratic shifting.

💡 Note: Always consult your owner’s manual for the specific fluid type and service intervals recommended by your manufacturer, as using the wrong fluid can damage delicate internal seals and clutch materials.

Signs of Transmission Wear and Tear

Understanding the parts of a transmission is only half the battle; recognizing when something is wrong is equally important. Common symptoms of internal transmission failure include:

Slipping Gears: If your engine RPM rises but the car does not gain speed, your clutches or bands may be worn out.
Delayed Engagement: A hesitation when shifting from Park to Drive often indicates an issue within the valve body or low transmission fluid.
Grinding Noises: In manual cars, this usually signals worn synchronizers. In automatic cars, it may indicate internal gear damage.
Leaking Fluid: Red, sweet-smelling fluid under your car is a clear sign that a seal or gasket has failed.
Burning Smell: Overheated transmission fluid produces a distinctive burnt odor, usually caused by extreme friction or low fluid levels.

Maintenance Tips for Longevity

To ensure your transmission lasts for the life of the vehicle, routine maintenance is mandatory. Beyond just changing the fluid, you should check for leaks regularly and listen for any strange noises during gear changes. Avoiding harsh driving habits, such as “neutral drops” or resting your hand on the gear shifter (in manual cars), can also significantly extend the life of the internal components. By keeping the system cool and properly lubricated, you prevent the premature degradation of the gears and bearings that are essential for power delivery.

Ultimately, the health of your vehicle depends on your ability to respect the complexity of the transmission system. By learning about the individual parts of a transmission—from the torque converter and valve body in automatics to the clutches and synchronizers in manuals—you become a more informed driver. Regular maintenance, attentive listening, and proactive fluid changes are the most effective ways to avoid expensive repairs. Whether you prefer the convenience of an automatic or the engagement of a manual, understanding what happens behind the scenes ensures your car remains reliable, efficient, and ready for the road ahead for years to come.
