Discovering a Pex pipe leaking at fitting can be an incredibly stressful experience for any homeowner. PEX (cross-linked polyethylene) tubing has become the industry standard for plumbing due to its flexibility, durability, and resistance to scale and chlorine. However, despite these advantages, leaks at connection points remain a common issue that requires prompt attention to prevent water damage, mold growth, and costly structural repairs. Whether your plumbing system uses crimp rings, cinch clamps, or push-to-connect fittings, understanding why these failures occur and how to address them is essential for maintaining a healthy home plumbing infrastructure.
Why PEX Fittings Develop Leaks
Understanding the root cause of a leak is the first step toward a permanent fix. While PEX itself is highly resilient, the joints are the most vulnerable parts of the system. Most failures occur not because of the pipe itself, but due to improper installation techniques or environmental factors.
- Improper Crimp/Clamp Force: If the crimp ring wasn't compressed to the exact diameter required, the seal won't be tight enough to prevent water from weeping out.
- Incorrect Pipe Insertion: If the PEX pipe was not fully inserted into the fitting, the seal may be compromised.
- Damaged O-Rings: In push-to-connect fittings, the internal O-ring can get nicked or displaced if the pipe end was not cut perfectly square or deburred.
- Thermal Expansion and Contraction: Rapid changes in water temperature can cause the pipe to expand and contract, potentially loosening connections over time if not properly supported.
- Pipe Kinks or Tension: If there is too much tension on the fitting, the connection point will experience constant stress, eventually leading to a failure.
Common Types of PEX Connections and Failure Indicators
To determine the best approach for repair, you must first identify the type of connection you are dealing with. Different fittings require specific tools and methods to fix correctly.
| Fitting Type | Primary Failure Sign | Repair Method |
|---|---|---|
| Crimp Ring | Drip or moisture around the copper ring | Cut out and replace fitting |
| Cinch Clamp (Stainless) | Slow weeping at the plastic/metal interface | Replace with new clamp/ring |

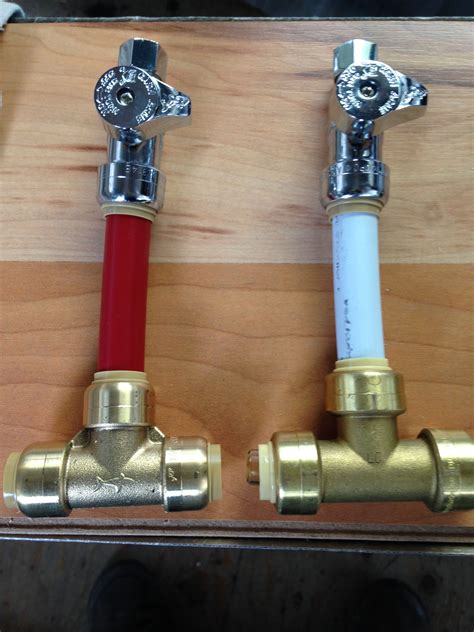

| Push-to-Connect | Steady drip from the collar | Remove, clean, and reseat or replace |
⚠️ Note: Always turn off the main water supply to your home and drain the lines before attempting any repairs to avoid water damage during the process.
Step-by-Step Guide: Fixing a PEX Leak at a Fitting
If you find a Pex pipe leaking at fitting, follow this general procedure to rectify the issue. Always ensure you have the correct PEX cutter to achieve a square, clean cut.
- Shut Off Water: Locate your main water shut-off valve and turn it off. Open the nearest faucet to relieve remaining pressure in the lines.
- Assess the Fitting: Inspect whether the fitting is salvageable. If it is a crimp-style fitting that was improperly crimped, it is almost always safer to cut it out and install a new one rather than trying to re-crimp the existing one.
- Cut the Pipe: Use a dedicated PEX cutter to remove the leaking section. Ensure the cut is clean and perpendicular to the pipe.
- Deburr the Edges: Use a PEX deburring tool to remove any sharp edges or burrs. A smooth edge is vital to ensure the O-ring or seat inside the new fitting isn't damaged.
- Install the New Fitting: Slide on your new ring or clamp, insert the fitting fully until it bottoms out, and position your tool for the final seal.
- Test for Leaks: Slowly turn the water back on and observe the joint for several minutes while the system reaches full pressure.
💡 Note: If you are using push-to-connect fittings, verify that the PEX pipe is marked to the proper depth to ensure it has cleared the internal O-ring seal.
Preventative Measures for PEX Plumbing
Once you have addressed the immediate leak, taking steps to prevent future failures is a smart investment of time. Use proper pipe hangers to support the weight of the water-filled lines, especially near fittings. Avoid pulling the PEX tubing too tight; providing a bit of “slack” allows the material to handle temperature fluctuations without putting unnecessary stress on your joints. Finally, verify that your tools are calibrated; worn-out crimping jaws are a leading cause of recurring leaks in PEX systems.
Dealing with a plumbing failure can be intimidating, but most PEX leaks are manageable for a prepared DIYer or a professional plumber. By identifying the specific type of fitting that is leaking, utilizing the correct tools, and ensuring that all pipes are prepared with clean, deburred edges, you can restore your plumbing system to perfect working order. Remember that the longevity of your plumbing system depends largely on the quality of the connections, so never rush a repair. If you find that leaks are a frequent occurrence, it may be time to have a professional inspect the entire system for signs of faulty installation or material fatigue to prevent more significant issues in the future.
