Water is the most essential substance for life on Earth, yet its behavior under varying conditions of pressure and temperature is a marvel of physics that often goes overlooked. When scientists map out these conditions, they rely on the Phase Diagram of Water, a fundamental tool that visualizes exactly how water shifts between its solid, liquid, and gaseous states. By understanding this diagram, we gain deep insights into everything from why ice floats to how high-altitude cooking is impacted by atmospheric pressure. This guide breaks down the complex intersections of thermodynamics to help you grasp the mechanics of our most precious resource.
Understanding the Architecture of the Phase Diagram

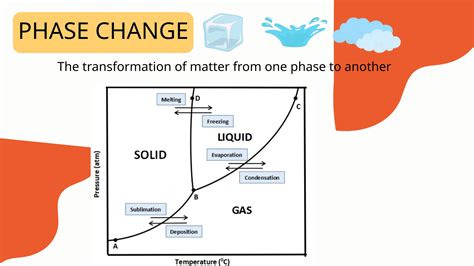

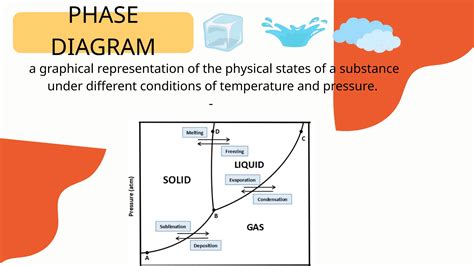

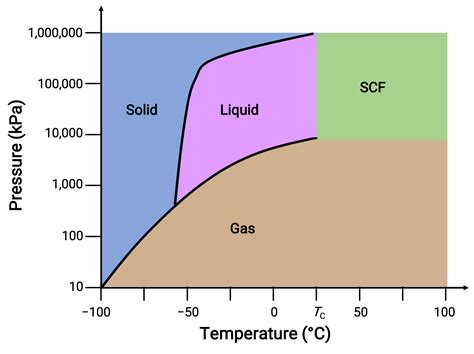

The Phase Diagram of Water is essentially a map defined by two axes: temperature on the x-axis and pressure on the y-axis. By plotting these variables, the diagram reveals distinct "regions" where one state of matter is thermodynamically stable. The lines separating these regions represent the conditions where two phases coexist in equilibrium—such as the point where ice begins to melt into liquid water.
The diagram consists of three primary regions:
- Solid (Ice): Occurs at low temperatures and high pressures.
- Liquid (Water): Exists at moderate temperatures and pressures.
- Gas (Water Vapor/Steam): Found at high temperatures and low pressures.
What makes water unique compared to most other substances is the slope of the line between the solid and liquid phases. In most substances, this line tilts to the right; for water, it tilts slightly to the left. This negative slope is the reason why increasing the pressure on ice can actually cause it to melt, a phenomenon that contributes to the ability of ice skaters to glide smoothly across a rink.
The Critical Points and Triple Point

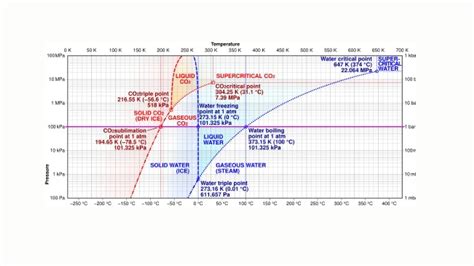

Within the Phase Diagram of Water, there are specific, landmark coordinates that dictate the limits of physical states. The most famous of these is the Triple Point. This is the precise temperature and pressure (0.01°C and 611.657 Pa) where all three phases—solid, liquid, and gas—coexist in perfect thermodynamic equilibrium. It is a state of matter that is rarely seen in daily life but serves as a crucial anchor for scientific measurements.
Another vital concept is the Critical Point, which occurs at 374°C and 22.06 MPa. Beyond this temperature and pressure, the distinction between liquid water and water vapor vanishes. The substance enters a state known as a supercritical fluid, which possesses the density of a liquid but the viscosity and flow characteristics of a gas. This state is heavily utilized in industrial applications, such as decaffeinating coffee or extracting essential oils.
| Phase Boundary | Process | Physical Meaning |
|---|---|---|
| Solid-Liquid | Fusion/Freezing | The pressure-dependent melting point of ice. |
| Liquid-Gas | Vaporization/Condensation | The boiling point dependent on atmospheric pressure. |
| Solid-Gas | Sublimation/Deposition | Ice turning directly into vapor without becoming liquid. |
💡 Note: Remember that the standard atmospheric pressure at sea level is approximately 101.3 kPa. Any changes in elevation will shift your position on the diagram, effectively lowering the boiling point of water as pressure drops.
How Pressure Impacts Daily Life
The Phase Diagram of Water explains why cooking times change at different altitudes. Because boiling occurs when the vapor pressure of water equals the surrounding atmospheric pressure, boiling water on a mountain—where the pressure is lower—happens at a lower temperature. This is why a hard-boiled egg takes longer to cook at high altitudes; the water simply isn't hot enough to transfer heat as quickly as it does at sea level.
Conversely, pressure cookers use the principles found in the phase diagram to force water to stay in its liquid state well above 100°C. By artificially increasing the internal pressure, the cooker keeps the water in the liquid phase at higher temperatures, allowing food to cook significantly faster without burning or drying out.
Anomalous Behavior: The Negative Slope
The most fascinating aspect of the Phase Diagram of Water is the solid-liquid equilibrium line. As mentioned, water expands when it freezes, meaning its density decreases. When you apply high pressure to a block of ice at a temperature just below its freezing point, you move across the phase boundary into the liquid region. This "pressure-induced melting" is why snowballs are easy to pack: the pressure from your hands creates a thin film of water that acts as a glue, which then refreezes once the pressure is released.
This anomaly is also why pipes burst in winter. As the water transitions from the liquid region to the solid region on the phase diagram, it expands by approximately 9%. If that water is confined within a metal or plastic pipe, the structural integrity of the container is no match for the crystalline force of the expanding ice.
Summary of Findings
Mastering the Phase Diagram of Water provides a scientific framework for observing the world around us. From the simple act of boiling water for tea to the complex industrial processes of supercritical extraction, the interactions between temperature and pressure govern every state change. By studying the lines of equilibrium and the unique triple and critical points, we gain a deeper appreciation for why water is not just a chemical formula, but a dynamic, multifaceted substance. Whether it is ice skating, mountain climbing, or simply understanding the weather, the phase diagram serves as the master key to unlocking the secrets of water’s behavior in our environment.
