The Photomultiplier Tube (PMT) stands as one of the most sensitive light-detecting devices in the scientific and industrial world. Capable of detecting light at the single-photon level, these vacuum tubes have revolutionized fields ranging from high-energy physics and medical imaging to environmental monitoring. By converting extremely faint light signals into measurable electrical currents, the PMT acts as a bridge between the unseen microscopic world of subatomic particles and the data processing capabilities of modern electronics.
The Fundamental Physics Behind PMT Operation

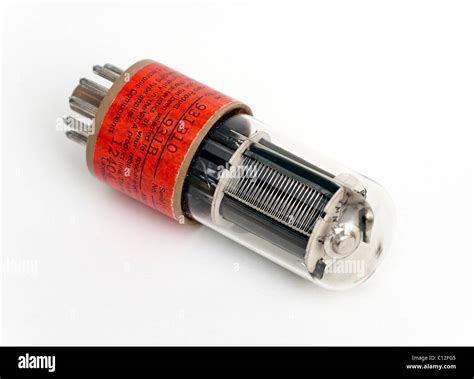

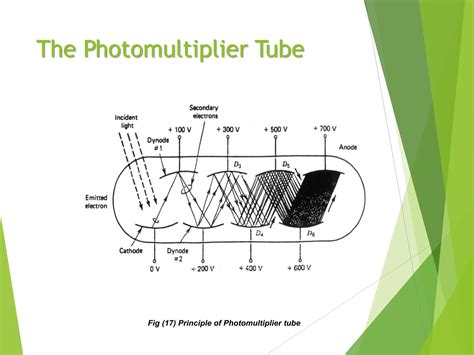

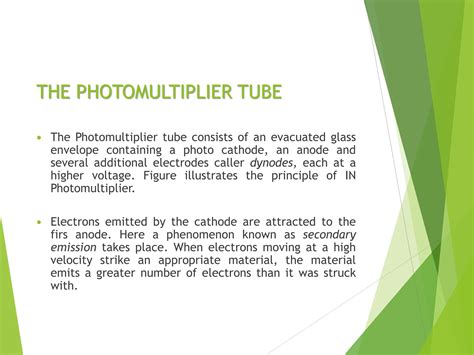

At its core, a Photomultiplier Tube operates on the principle of the photoelectric effect and secondary electron emission. The device consists of a vacuum-sealed glass envelope containing a photocathode, a series of dynodes, and an anode. When an incoming photon strikes the photocathode, it releases an electron due to the photoelectric effect.
This single photoelectron is then accelerated by an electric field toward the first dynode. When the electron impacts the dynode, it triggers the emission of several secondary electrons. This process repeats through a chain of multiple dynodes, resulting in an exponential increase in the number of electrons. By the time this pulse reaches the anode, the original single-photon signal has been amplified by a factor of up to 100 million, making it easily detectable by standard electronic circuitry.

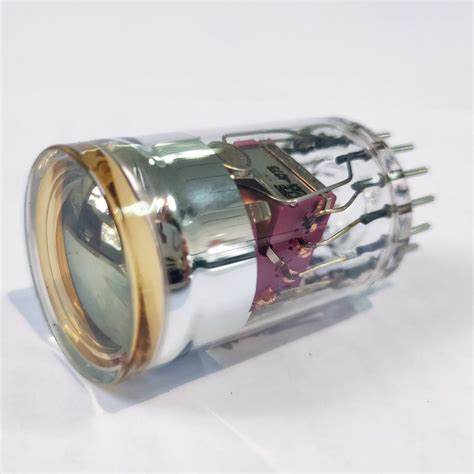

Key Components and Structure
Understanding the anatomy of the device is essential for researchers looking to optimize their signal detection. The assembly is meticulously crafted to ensure low noise and high gain. The primary components include:
- Photocathode: The entrance window that converts light into photoelectrons.
- Focusing Electrode: Ensures that photoelectrons are directed efficiently toward the first dynode.

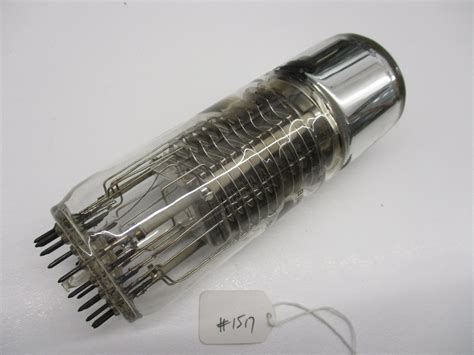

- Dynode Chain: A series of electrodes held at increasing positive voltages to multiply the electron stream.
- Anode: The final collector where the multiplied current pulse is gathered and sent to the output.
- Vacuum Envelope: Maintains the internal environment free of gas molecules that could interfere with electron acceleration.
Comparison of Light Sensing Technologies
While newer technologies like Silicon Photomultipliers (SiPM) have emerged, the traditional vacuum-based Photomultiplier Tube remains the industry standard for specific applications requiring large active areas and extremely low thermal noise. The following table highlights the comparative strengths of different light detection methods.
| Feature | Photomultiplier Tube | Silicon Photomultiplier | Photodiode |
|---|---|---|---|
| Sensitivity | Extremely High (Single Photon) | High | Moderate |
| Active Area | Large | Small | Variable |
| Noise Level | Extremely Low | Low (Temperature Dependent) | Moderate |
| Ruggedness | Fragile (Glass) | High (Solid State) | High |
Applications in Modern Science
The versatility of the Photomultiplier Tube allows it to function in diverse environments. In the medical field, PMTs are the backbone of PET (Positron Emission Tomography) scanners. They detect the faint flashes of light produced in scintillating crystals when gamma rays hit them, allowing doctors to visualize metabolic processes in the human body.
Beyond medicine, these devices are critical in:
- High-Energy Physics: Detecting Cherenkov radiation in particle accelerators.
- Astronomy: Measuring the brightness of stars and distant cosmic phenomena.
- Spectroscopy: Analyzing the chemical composition of substances by measuring fluorescence or absorption.
- Oil and Gas Exploration: Used in borehole logging tools to identify geological formations.
💡 Note: Always handle the glass envelope of a Photomultiplier Tube with extreme care; any microscopic crack or surface contaminant can degrade the vacuum seal and lead to permanent loss of sensitivity.
Optimizing Performance and Signal Integrity
To get the most out of a Photomultiplier Tube, users must manage the voltage divider circuit effectively. The gain of the device is highly dependent on the applied high voltage. Even slight fluctuations in the power supply can lead to significant changes in signal output. Using a stable, low-ripple high-voltage power supply is mandatory for precision measurements.
Additionally, magnetic shielding is often required. Because electrons inside the tube follow specific trajectories determined by electric fields, external magnetic fields can deflect the electrons, causing them to miss the dynodes entirely. Placing the tube within a Mu-metal shield helps prevent this interference, ensuring the amplification chain remains undisturbed.
💡 Note: When installing a new tube, allow for a "burn-in" period. Running the device at operating voltage for several hours can stabilize the photocathode response and reduce initial dark current noise.
Future Outlook
While the fundamental design of the Photomultiplier Tube has remained consistent for decades, manufacturing techniques have evolved to improve quantum efficiency and reduce the overall physical footprint. Modern research into bialkali and multialkali photocathodes continues to push the boundaries of spectral response, allowing these sensors to capture light in wavelengths previously difficult to detect.
Despite the rise of solid-state sensors, the vacuum-tube design remains unparalleled in scenarios where the trade-off between large collection area and noise floor is critical. As we continue to explore deeper into the mysteries of the universe and push the limits of medical diagnostics, the Photomultiplier Tube will undoubtedly remain a cornerstone technology. Its ability to turn the whisper of a single photon into a shout that our instruments can process ensures that it will continue to be a vital tool for engineers and scientists for years to come.
Looking back at the trajectory of photon detection, the PMT represents a masterpiece of vacuum physics. By maintaining its unique combination of extreme gain, high temporal resolution, and large sensing area, it sustains its relevance in the most demanding research environments. Whether through the refinement of dynode materials or the integration of more robust power electronics, the evolution of this sensor will keep pace with the needs of future discovery, ensuring that we continue to gain visibility into the most subtle phenomena of the natural world.
