Achieving accurate heart monitoring starts with the fundamental skill of proper Placement ECG (electrocardiogram) leads. Whether you are a healthcare professional in a busy clinical setting or a student learning the nuances of cardiac diagnostics, understanding where to position each electrode is critical. Even a slight deviation in placement can lead to artifacts, signal interference, or, more critically, misinterpretation of cardiac rhythm, potentially leading to inaccurate clinical decisions.

Table of Contents

The Importance of Precise ECG Lead Placement

An ECG records the electrical activity of the heart over a period of time using electrodes placed on the skin. The diagnostic quality of the resulting tracing depends entirely on the standardized Placement ECG protocol. The heart's electrical vector is complex, and the electrodes act as "viewing windows." If the windows are shifted, the view of the heart's depolarization and repolarization changes, which can mimic or mask conditions like myocardial infarction, bundle branch blocks, or arrhythmias.

Consistency is key. By adhering to the standardized Wilson’s Central Terminal system and the modified limb lead configurations, practitioners ensure that subsequent ECGs taken on the same patient are comparable. This longitudinal consistency is vital for tracking changes in a patient's cardiac health over time.

Understanding the Standard 12-Lead ECG Configuration

The standard 12-lead ECG is composed of ten physical electrodes. These electrodes are categorized into two groups: the limb leads and the precordial (chest) leads. Each group serves a specific purpose in generating the 12 views required for a comprehensive diagnostic assessment.

The Precordial Leads (V1–V6)

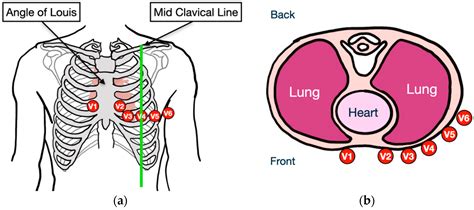

The precordial leads are positioned across the chest wall to provide a horizontal plane view of the heart. Correct Placement ECG for these leads is often where errors occur, primarily due to anatomical variations in patients.

V1: Fourth intercostal space at the right sternal border.
V2: Fourth intercostal space at the left sternal border.
V3: Midway between V2 and V4.
V4: Fifth intercostal space at the mid-clavicular line.
V5: Anterior axillary line, at the same horizontal level as V4.
V6: Mid-axillary line, at the same horizontal level as V4 and V5.

⚠️ Note: Always palpate for the Angle of Louis (the ridge on the sternum) to accurately locate the second intercostal space before counting down to the fourth space. Do not rely on visual estimation alone.

The Limb Leads

The limb leads, which consist of RA (Right Arm), LA (Left Arm), RL (Right Leg), and LL (Left Leg), monitor the heart in the frontal plane. While modern practice allows for these to be placed on the torso for convenience in emergency situations or monitoring, for diagnostic-grade ECGs, they should be placed on the wrists and ankles.

Electrode	Standard Placement Location
Right Arm (RA)	Right forearm or wrist
Left Arm (LA)	Left forearm or wrist
Right Leg (RL)	Right ankle (serves as the ground/reference)
Left Leg (LL)	Left ankle

Steps for Optimal Signal Quality

Even with correct anatomical positioning, signal quality can be compromised by poor skin preparation or equipment issues. Follow these steps to ensure the best possible diagnostic data:

Skin Preparation: The skin must be clean, dry, and free of oils or lotions. If the area is excessively hairy, clip the hair—do not shave, as this can cause skin abrasion.
Electrode Application: Ensure the adhesive is intact. If using reusable electrodes, ensure the conductive gel is fresh and not dried out.
Lead Connection: Verify that each lead wire is securely attached to the corresponding electrode. Loose connections are a primary cause of 60-cycle interference.
Patient Positioning: The patient should be supine and relaxed. Ask the patient to remain still and not talk during the recording, as muscle movement can cause significant artifact.

💡 Note: If a patient has a pacemaker or an implantable cardioverter-defibrillator (ICD), avoid placing electrodes directly over the device, as this may interfere with the signal or cause skin irritation.

Common Troubleshooting Tips for ECG Artifacts

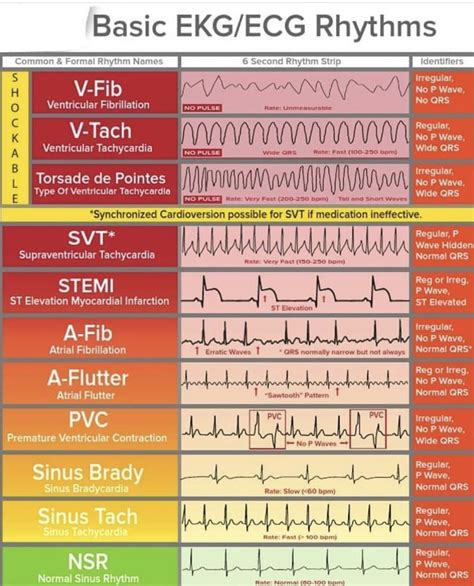

When reviewing the ECG output, you may encounter artifacts—unwanted signals that interfere with the cardiac tracing. Identifying the source is the first step in troubleshooting:

Wandering Baseline: Usually caused by patient movement or poor skin-to-electrode contact. Ensure the patient is comfortable and the cables are not pulling on the electrodes.
60-Cycle Interference: Presents as a thick, fuzzy line in the tracing. This is electrical interference from nearby equipment. Ensure all electrical devices are away from the patient, and double-check lead security.
Muscle Tremor: This manifests as jagged, irregular activity across the baseline. Encourage the patient to relax or, if they are shivering, provide a blanket for warmth.

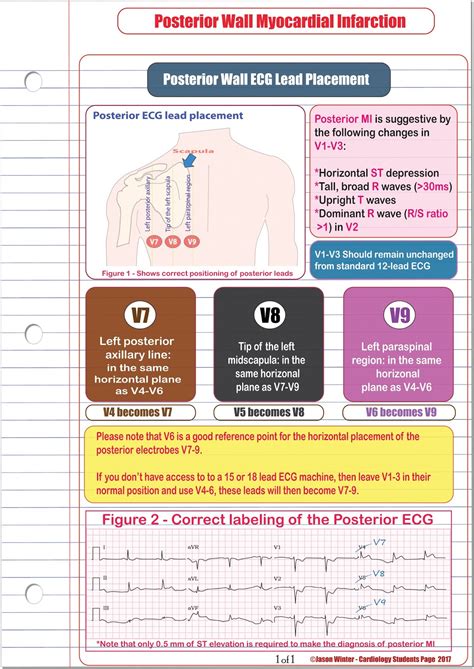

Special Considerations for Anatomical Variations

Not every patient fits the standard model. You may encounter patients with breast tissue that obscures the precordial lead locations, or patients who have had mastectomies. In cases of significant breast tissue, lift the tissue gently and place the electrode *under* the tissue, not on top of it. For patients with a dextrocardia (where the heart is on the right side of the chest), the Placement ECG must be mirrored to the right side of the thorax to obtain an accurate diagnostic tracing.

Always document any deviations from standard placement clearly in the patient's medical record. If you are placing leads on the torso instead of the limbs due to patient instability, this must also be documented so the reading clinician understands potential baseline shifts in the limb leads.

Mastering the art of precise electrode application is essential for providing high-quality cardiac care. By consistently following the anatomical landmarks for precordial leads and maintaining proper limb lead standards, you minimize the risk of technical errors. Remember that the accuracy of an ECG report is entirely dependent on the quality of the data collection process, making every step of the setup vital. Through diligent preparation, clear patient communication, and strict adherence to established protocols, you ensure that the diagnostic information captured is both reliable and actionable, ultimately leading to better clinical outcomes for your patients.
