The plasma membrane, often referred to as the cell membrane, serves as the critical boundary between a cell's internal environment and the external world. Understanding this structure is fundamental for students, researchers, and biology enthusiasts alike. When you study a plasma membrane diagram, you are essentially looking at the "gatekeeper" of life, a highly complex and dynamic entity responsible for homeostasis, cell signaling, and structural integrity. By deconstructing the components of this barrier, we can better grasp how life maintains the delicate balance required for survival.

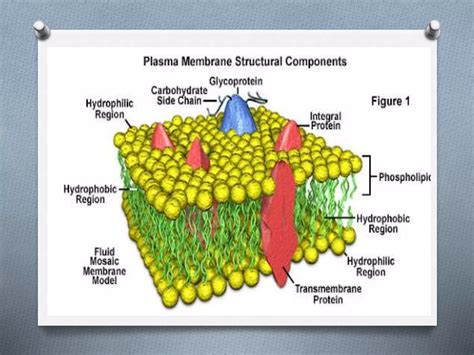

The Fluid Mosaic Model Explained
The modern scientific understanding of the cellular boundary is encapsulated in the Fluid Mosaic Model. This model, first proposed in the early 1970s, describes the membrane as a two-dimensional liquid that restricts the lateral diffusion of some membrane components. If you examine a detailed plasma membrane diagram, you will notice that it is not a rigid wall, but a flexible, shifting sea of lipids and proteins.
The term "fluid" refers to the ability of the phospholipids and proteins to move laterally within the membrane layer, while "mosaic" describes the diverse pattern of different types of proteins and carbohydrates embedded throughout the structure. This fluidity is crucial, as it allows for the repair of the membrane and the movement of molecules necessary for cellular processes.

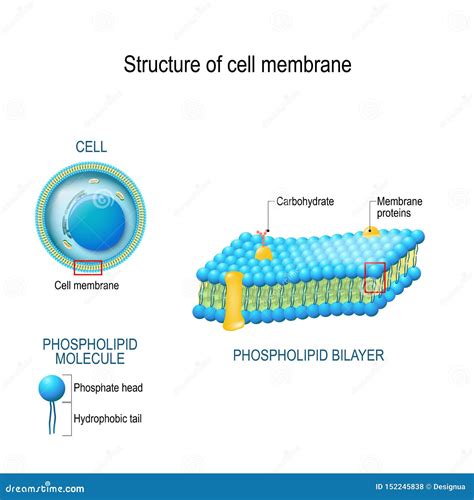

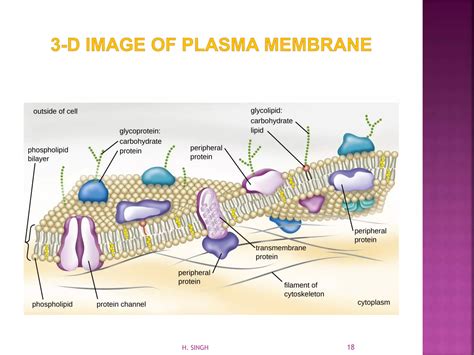

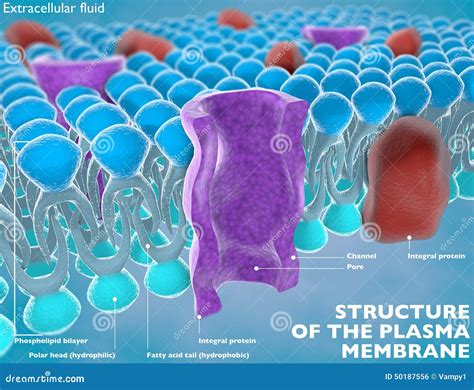

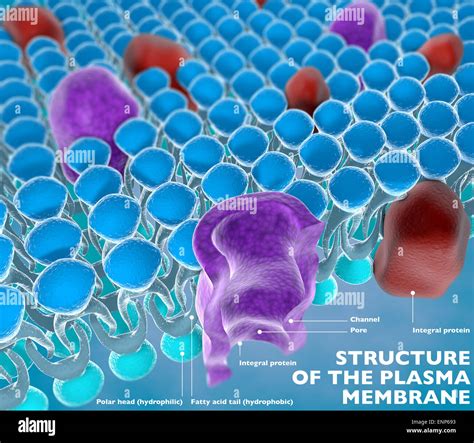

Key Components of the Plasma Membrane
To truly understand how the membrane functions, one must identify the individual building blocks presented in a typical plasma membrane diagram. These components work in harmony to control what enters and exits the cell.
- Phospholipid Bilayer: The foundation of the membrane. It consists of two layers of phospholipids, where each molecule has a hydrophilic (water-attracting) head and two hydrophobic (water-repelling) tails.
- Integral Proteins: These span the entire width of the membrane and often serve as channels or pumps for transporting substances.
- Peripheral Proteins: These are attached to the exterior or interior surfaces of the membrane and are primarily involved in cell signaling or structural attachment.
- Cholesterol: Tucked between the hydrophobic tails, cholesterol molecules stabilize the membrane, ensuring it remains fluid at low temperatures and firm at high temperatures.
- Carbohydrates: Found on the extracellular side, these sugar chains (glycoproteins and glycolipids) play a vital role in cell-to-cell recognition and immune system communication.
⚠️ Note: Maintaining the correct concentration of cholesterol is essential; too much can lead to membrane rigidity, while too little can cause the membrane to become leaky or unstable.
Comparison of Membrane Components
| Component | Primary Function | Location |
|---|---|---|
| Phospholipids | Provides structural integrity and selective permeability. | Form the bilayer matrix. |
| Membrane Proteins | Facilitates transport, signaling, and enzymatic activity. | Embedded in or attached to the bilayer. |
| Cholesterol | Regulates fluidity and membrane integrity. | Hydrophobic interior region. |
| Glycocalyx | Cell identification and protection. | Extracellular surface. |
The Role of Selective Permeability
One of the most important aspects depicted in a plasma membrane diagram is the ability of the membrane to be selectively permeable. This means the membrane allows some substances to pass through while blocking others. This process is governed by the chemical nature of the molecules.
Small, nonpolar molecules like oxygen and carbon dioxide can slip easily through the hydrophobic core of the bilayer via passive diffusion. Conversely, large, polar, or charged molecules—such as glucose, ions, or water—require specific transport proteins or channels to traverse the membrane. This selective control is the primary mechanism by which the cell manages its internal ion concentrations and metabolic pathways.
Membrane Transport Mechanisms
The transport of materials across the membrane can be classified into two major categories, both of which are visible in functional studies of the plasma membrane diagram:
- Passive Transport: This does not require energy (ATP). Molecules move down their concentration gradient through diffusion, osmosis, or facilitated diffusion.
- Active Transport: This requires energy (ATP) because molecules are being pushed against their concentration gradient (from a lower concentration to a higher one). Protein pumps are primarily responsible for this energy-intensive task.
By studying how these mechanisms work in tandem, researchers have discovered how cells maintain high levels of potassium and low levels of sodium, a process essential for nerve impulse transmission and muscle contraction. Without the constant activity of these transport proteins, the cell would reach equilibrium with its environment, which would eventually lead to cell death.
💡 Note: Bulk transport processes like endocytosis (bringing materials in) and exocytosis (expelling materials) also rely on the flexibility of the phospholipid bilayer to form vesicles, further highlighting the dynamic nature of the membrane.
Why the Diagram Matters for Biological Study
Visualizing the plasma membrane diagram is not just an academic exercise; it is the starting point for medical breakthroughs. Many pharmaceutical drugs are designed to interact specifically with the protein receptors found on the cell membrane. By altering how these receptors function, doctors can treat conditions ranging from hypertension to neurological disorders. Furthermore, understanding the structure of the membrane helps in studying how viruses—like influenza or SARS-CoV-2—hijack cellular machinery to enter the cell, as they must fuse with or bypass the membrane to infect the host.
In addition to therapeutic applications, the study of the membrane is central to environmental biology. The integrity of the membrane is often the first casualty in cells exposed to pollutants or heavy metals. By observing changes in the organization of membrane proteins or the composition of phospholipids, scientists can assess the health of an organism at the microscopic level.
The plasma membrane diagram serves as a blueprint for the biological complexity that defines life itself. From the structural scaffolding provided by the phospholipid bilayer to the sophisticated signaling network provided by proteins and glycoproteins, every element has a precise job to perform. As we continue to explore the nuances of cellular biology, our appreciation for this thin, fragile, yet remarkably resilient barrier continues to grow. It is through the study of this membrane that we learn how cells communicate, adapt, and sustain the complex metabolic processes that allow organisms to flourish in ever-changing environments.
