Plotting Ternary Diagrams

Visualizing multivariate data often presents a challenge when dealing with three-component systems. Whether you are a geologist classifying rock types, a metallurgist studying alloy compositions, or a chemist analyzing phase equilibria, plotting ternary diagrams is an essential skill for interpreting data where the sum of components is constant. By mapping three variables onto a single triangular plane, these diagrams reveal relationships, trends, and clusters that would be impossible to discern in a standard Cartesian coordinate system.

Table of Contents

Understanding the Ternary Coordinate System

The beauty of a ternary diagram lies in its geometric representation of the constraint $A + B + C = 100\%$. Instead of using orthogonal axes, the diagram utilizes a triangular grid where each vertex represents a pure component (100%). As you move from a vertex toward the opposite base, the concentration of that specific component decreases from 100% to 0%.

When plotting ternary diagrams, it is critical to understand the reading order. Most diagrams follow a clockwise or counter-clockwise flow, but the most common standard is:

Data Preparation for Ternary Plots

Before you begin the process of plotting ternary diagrams, your dataset must be properly normalized. If your raw data does not sum to 100% (or 1.0), the points will not plot correctly on the diagram. You must first calculate the total sum of the three variables for each sample and then divide each variable by that total.

Consider the following example of normalization:

Sample ID	Component A	Component B	Component C	Normalized A%
Sample 1	15	25	10	30%
Sample 2	40	10	50	40%

Step-by-Step Methodology for Plotting

If you are drafting these diagrams manually or using computational software, the process of plotting ternary diagrams generally follows these sequential steps:

Scale the Triangle: Define the boundaries of the triangle. Ensure the grid lines are spaced at regular intervals (e.g., every 10%) to maintain clarity.
Transform Coordinates: Convert your normalized ternary components into Cartesian $(x, y)$ coordinates. The standard transformation formulas are:
- $x = B + (0.5 * C)$
- $y = frac{sqrt{3}}{2} * C$
Place the Points: Use the calculated $(x, y)$ values to plot your data points. If you are using software like Python (Matplotlib), R (ggtern), or specialized plotting tools, these libraries often handle the projection automatically.
Add Context: Include labels for the three axes and consider shading regions to define different zones of interest.

Common Applications in Research and Industry

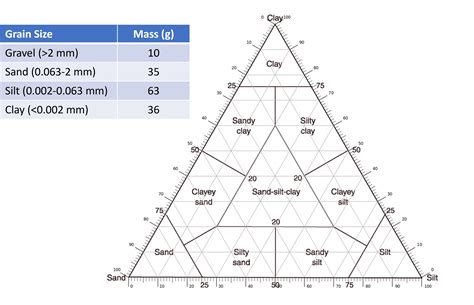

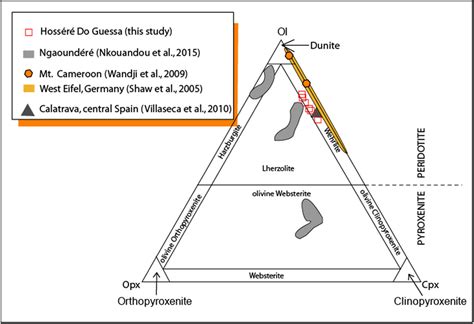

Professionals across various scientific disciplines rely on plotting ternary diagrams to communicate complex data. In geology, the QAPF diagram is a staple for classifying igneous rocks based on Quartz, Alkali feldspar, Plagioclase, and Feldspathoids. In chemical engineering, these plots are used to visualize liquid-liquid extraction processes, specifically identifying the region of miscibility where three solvents can exist in a single phase.

Best Practices for Effective Visualization

When plotting ternary diagrams for publication or technical reports, clarity is paramount. A cluttered diagram loses its analytical value. Here are a few tips to enhance the readability of your charts:

Use Distinct Markers: If you are plotting multiple data series, use different shapes (circles, squares, triangles) and colors to differentiate between experimental conditions or sample groups.
Grid Line Density: Do not over-saturate the diagram with too many grid lines. Often, 20% or 25% intervals are sufficient unless your data is highly clustered.
Legend Placement: Place your legend outside the triangular frame to avoid obstructing the data points.
Transparency: When dealing with high-density datasets, use semi-transparent markers to visualize overlapping points effectively.

💡 Note: When using software-based plotting tools, always verify that the axes orientations (clockwise vs. counter-clockwise) match your specific discipline's standards, as there is no universal industry standard across all fields.

Addressing Common Challenges

One of the most frequent issues encountered when plotting ternary diagrams is the "close-sum" constraint effect. Because the variables are interdependent, a change in one necessarily forces a change in the others. This can sometimes lead to spurious correlations in your statistical analysis. When interpreting your plots, always be cautious about whether the patterns you observe are genuine chemical/physical behaviors or merely artifacts of the normalization process.
