For off-road enthusiasts and heavy-duty vehicle operators, the pursuit of superior ground clearance and drivetrain durability often leads to a singular, transformative upgrade: Portal Axles. Unlike conventional straight-axle systems where the wheel center aligns directly with the differential housing, portal systems utilize a gear set at the wheel hub. This ingenious engineering marvel offsets the axle half-shafts higher than the center of the wheels, effectively raising the entire differential housing far above the terrain. Whether you are navigating jagged rock gardens, deep mud ruts, or extreme forest trails, understanding the mechanics and benefits of these specialized components is essential for anyone looking to push their vehicle’s performance to the absolute limit.
The Engineering Behind Portal Axles

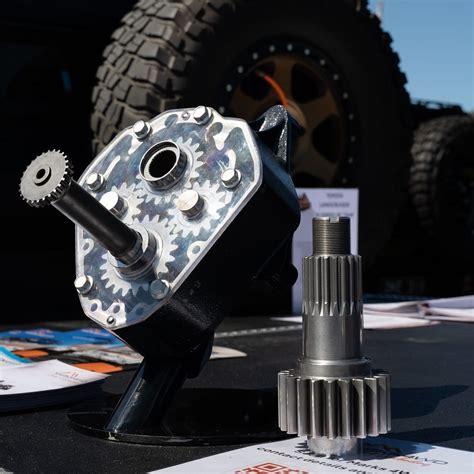

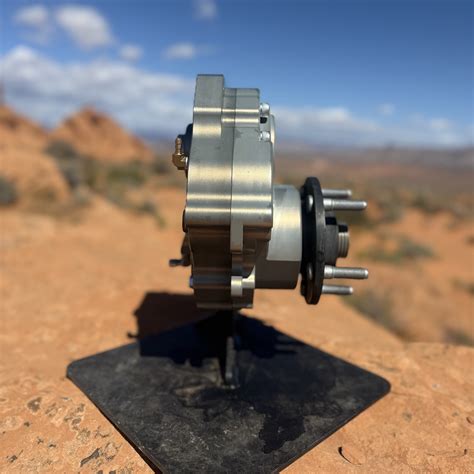

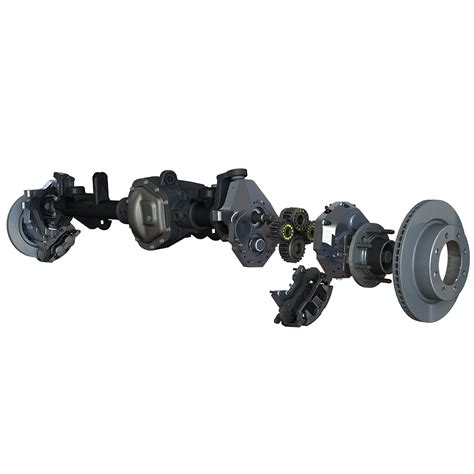

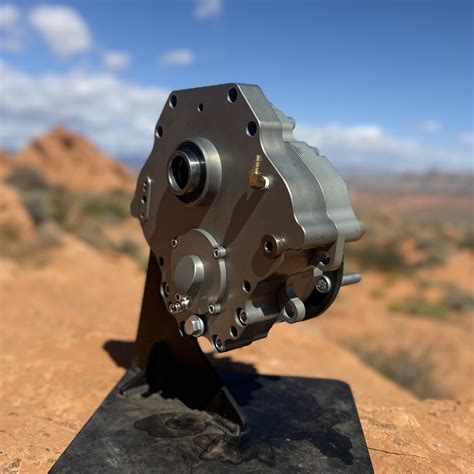

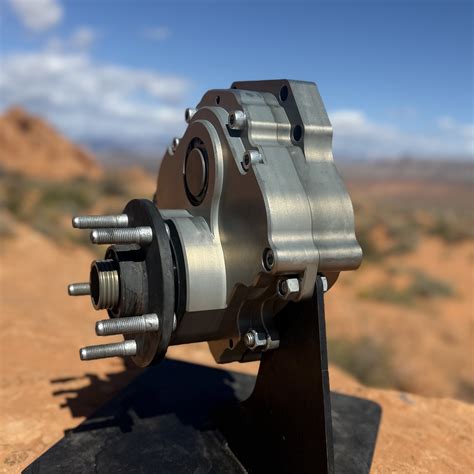

At their core, Portal Axles operate on a principle of gear reduction. Instead of transferring power directly from the differential to the wheel, the torque travels to a portal box—a housing containing a series of gears. This configuration serves two primary functions: it provides a gear reduction to help turn larger tires and, most importantly, provides the lift necessary to prevent the differential from "high-centering" on obstacles. By shifting the center of rotation, the vehicle gains several inches of unobstructed clearance underneath the axle tubes, which are typically the lowest hanging points on a standard truck.
The transition from a standard axle to a portal system involves complex mechanical considerations. Because the axle tubes are positioned higher, the suspension geometry often needs to be re-engineered to accommodate the new height and the altered scrub radius of the tires. The increased leverage exerted on the steering components also necessitates heavy-duty upgrades to ensure reliability under extreme stress.
Key Advantages of Installing Portal Axles
The primary draw for upgrading to this system is, without question, the massive increase in ground clearance. When comparing a standard vehicle setup to one equipped with portal gearboxes, the difference is night and day. Beyond just height, there are several distinct operational advantages:
- Enhanced Torque Delivery: The gear reduction at the hubs allows the engine to spin larger tires with less strain on the transmission and driveshaft.
- Superior Obstacle Clearance: By lifting the differential housing, you remove the primary point of impact, allowing you to straddle rocks and ruts that would stop a standard truck.
- Optimized Drivetrain Longevity: Because the final drive reduction happens at the wheel, the axle shafts experience less rotational torque, leading to fewer snapped shafts during aggressive off-roading.
- Better Approach and Departure Angles: The physical height adjustment often improves the vehicle’s overall geometry for climbing steep embankments.
Comparison: Portal Axles vs. Traditional Suspension Lifts
Many builders often debate whether to invest in an expensive portal conversion or a traditional suspension lift kit. While suspension lifts provide room for larger tires, they do not actually raise the differential, which remains the lowest point on the vehicle. The table below highlights the fundamental differences between these two common upgrade paths.
| Feature | Traditional Suspension Lift | Portal Axle System |
|---|---|---|
| Ground Clearance | Limited (only under the frame) | High (under the differential) |
| Center of Gravity | Increases significantly | Increases (but adds unsprung weight) |
| Drivetrain Stress | Higher due to larger tire mass | Lowered by hub-side gear reduction |
| Complexity | Low to Medium | High (requires custom fabrication) |
⚠️ Note: When installing a portal kit, ensure that your braking system is compatible with the new hub offsets, as these systems frequently require custom brake mounts and extended lines to function safely.
Important Maintenance Considerations
Operating a vehicle with Portal Axles requires a shift in maintenance strategy. Because the portal boxes are separate gear housings, they contain their own lubricant that must be monitored independently of the main differential. These boxes are subjected to high heat and extreme pressure, making high-quality synthetic gear oil a mandatory requirement.
Furthermore, regular inspections of the hub seals are critical. Given the harsh environments these vehicles inhabit—often involving deep water crossings or thick, abrasive mud—a failed seal can quickly allow contaminants to enter the gear housing. If left unchecked, fine grit mixed with gear oil acts like a grinding paste, which will prematurely wear out the precision-cut gears inside the portal box.
Installation and Tuning Tips
If you are planning to perform a conversion, start by assessing your vehicle's current steering geometry. Because portal boxes extend the axle outward and downward, the steering knuckles and tie-rod ends will encounter new mechanical stress points. Utilizing a heavy-duty steering stabilizer and ensuring correct "Ackermann geometry" will prevent unwanted bump steer and premature tire wear.
Always verify the wheel backspacing. Because portals often widen the track width of the vehicle, finding the right wheels is essential to keep the tire profile tucked within a reasonable distance of the fenders, ensuring compliance with local vehicle regulations and preventing excessive strain on the wheel bearings.
💡 Note: Always perform a "break-in" period after installing a new portal system. Drive for the first 50 to 100 miles on paved surfaces to ensure that the gears are meshing correctly and to check for any leaks in the housing gaskets before hitting the trails.
Final Thoughts on Performance Upgrades
Upgrading to Portal Axles represents the pinnacle of off-road vehicle modification. While the upfront cost and the complexity of installation are significant, the resulting performance gains are undeniable for those who frequent extreme terrain. By decoupling the wheel center from the axle tube, these systems provide a level of functional clearance that no amount of tire size or suspension travel can replicate. As with any major mechanical project, thorough planning, quality component selection, and disciplined maintenance are the cornerstones of a successful build. By treating these systems with the care and engineering respect they deserve, you will unlock the full potential of your vehicle, allowing you to conquer trails that were once considered impassable. With the right configuration, you aren’t just driving over the terrain; you are effectively rendering the most common obstacles beneath your axles completely irrelevant, ensuring a smoother and more confident off-road experience for years to come.
