The electrocardiogram (ECG) remains the gold standard for clinicians worldwide to assess the electrical activity of the heart. Among the various components that make up a standard 12-lead ECG, the Precordial Leads play a vital role in providing a detailed, three-dimensional view of the heart's horizontal plane. By placing these specific electrodes across the chest wall, healthcare professionals can identify subtle abnormalities, diagnose myocardial infarctions, and track the progression of cardiac conditions with remarkable precision. Understanding the placement and clinical significance of these leads is a fundamental skill for medical students, nurses, and emergency responders alike.
Understanding the Role of Precordial Leads
The 12-lead ECG is composed of three categories: limb leads (I, II, III, aVR, aVL, and aVF) and the six Precordial Leads (V1 through V6). While the limb leads provide a frontal plane view of the heart, the precordial set acts like a series of cameras placed strategically across the chest, capturing the electrical vectors moving toward or away from the front and lateral walls of the heart. These leads are essential for detecting electrical disturbances in the ventricular myocardium, providing insight that other leads simply cannot capture.
Anatomy of Lead Placement

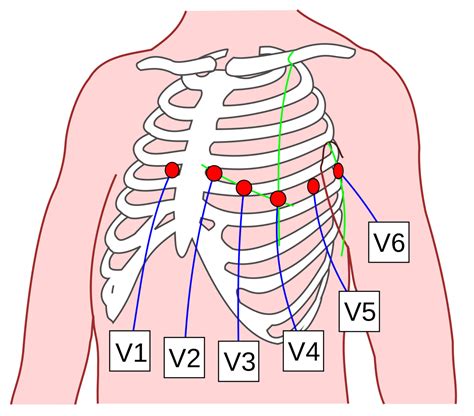

Correct placement is non-negotiable for an accurate ECG reading. Even a slight deviation in electrode position can result in artifacts or lead to a misdiagnosis, such as an incorrect ST-segment elevation reading. The Precordial Leads are positioned based on anatomical landmarks on the chest wall. Below is a breakdown of their standard placements:
- V1: Fourth intercostal space at the right sternal border.
- V2: Fourth intercostal space at the left sternal border.
- V3: Midway between V2 and V4.
- V4: Fifth intercostal space at the mid-clavicular line.
- V5: Anterior axillary line, level with V4.
- V6: Mid-axillary line, level with V4 and V5.
To ensure consistency, clinicians must use the sternal angle (Angle of Louis) to locate the second intercostal space and then count down to the fourth. Accurate identification of these bony landmarks prevents lead misplacement, which is a common source of clinical errors in busy emergency departments.
Clinical Significance and Diagnostic Value
Each of the six Precordial Leads corresponds to a specific anatomical region of the left ventricle. By analyzing the patterns—such as Q-waves, ST-segment changes, and T-wave inversions—in these leads, doctors can pinpoint exactly where an obstruction or injury is occurring.
| Lead | Anatomical Region | Coronary Artery Involvement |
|---|---|---|
| V1, V2 | Septal | Left Anterior Descending (LAD) |
| V3, V4 | Anterior | Left Anterior Descending (LAD) |
| V5, V6 | Lateral | Left Circumflex (LCx) or LAD |
⚠️ Note: Always ensure the patient's skin is clean and dry before applying electrodes. Excessive body hair may require shaving or the use of specialized adhesive to ensure proper skin-to-electrode contact, which reduces electrical interference (noise) on the ECG tracing.
Common Challenges in Precordial Lead Acquisition
Despite clear guidelines, several factors can complicate the recording process. In patients with high BMI, determining the exact mid-axillary line can be difficult. Similarly, for female patients, proper electrode placement requires placing leads underneath the breast tissue rather than on top of it to ensure they are as close to the chest wall as possible. Failing to account for these anatomical variances can lead to “low voltage” readings or distorted waveforms that do not accurately represent the heart’s true electrical state.
Advanced Applications: Posterior and Right-Sided Leads
While the standard six leads are sufficient for routine screenings, clinicians sometimes need more information. If a patient is suspected of having a posterior myocardial infarction, leads V7, V8, and V9 are placed on the patient’s back. Conversely, if a right ventricular infarction is suspected, healthcare providers may utilize V3R, V4R, V5R, and V6R. These variations involve moving the Precordial Leads to the right side of the chest or the posterior thorax, respectively, to capture electrical vectors that are missed by the standard configurations.
⚠️ Note: When recording right-sided or posterior leads, it is critical to mark the ECG printout clearly so the interpreting physician knows the leads were placed in non-standard positions. Misinterpreting these as standard leads can lead to a completely incorrect diagnosis.
Optimizing Trace Quality
The quality of the tracing generated by Precordial Leads is heavily dependent on patient cooperation and environment. It is crucial to instruct the patient to remain still and breathe normally. Even minor tremors or talking can create muscle artifact, often mistaken for arrhythmias. Additionally, ensuring that cables are not crossed or dangling can prevent magnetic interference, known as 60-cycle interference, which manifests as thick, fuzzy lines on the printout.
Final Perspectives
The mastery of Precordial Leads is more than just a mechanical task of sticking electrodes to a chest; it is an interpretive art form that bridges the gap between raw data and life-saving medical decisions. By strictly adhering to anatomical landmarks, recognizing the diagnostic significance of each lead, and troubleshooting common artifacts, healthcare providers can ensure that the information gathered from an ECG is as reliable as possible. As technology continues to advance, the core principles of lead placement remain a foundational pillar of cardiology. Whether in the quiet of a clinic or the high-pressure environment of an ambulance, these six leads serve as the primary window into the heart’s complex electrical architecture, allowing for early detection and intervention in patients suffering from acute cardiac events. Maintaining proficiency in this area is a testament to the commitment of providing high-quality, evidence-based care in any clinical setting.
